• Model NO.：Centralizer
• Size：4 1,2---13 3,8
• Standard：API
• Use：Well Cementing
• Process：Injection Molding
• Transport Package：Plywood Case
• Specification：API, ISO
• Trademark：Zhongshi
• Origin：Henan, China
• HS Code：39174000
• Production Capacity：5000piece,Month

Basic Info.

Model NO. Centralizer Size 4 1/2---13 3/8 Standard API Use Well Cementing Process Injection Molding Transport Package Plywood Case Specification API, ISO Trademark Zhongshi Origin Henan, China HS Code 39174000 Production Capacity 5000piece/Month

Product Description

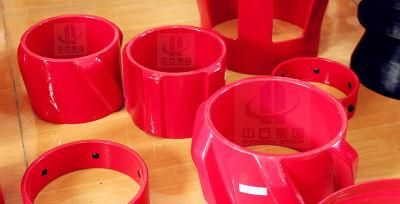

API Nylon Composite Casing Centralizer with coating

1) Material: Nylon PA66+GF30

2) Type: composite casing Centralizer with coating

3) API and ISO certified

4) Specifications: 4 1/2''---13-3/8''. More special sizes or combination are available as requested.

5) Introduction

Solid rigid casing centralizers are suitable for deviated wells and horizontal wells, to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations.
The composite casing centralizer is with design of one-piece composite construction and nylon material.

6) Features of composite casing centralizer:

a. High wear resistance
b. Oil Proof
c. Shock and impact resistance in low temperature and low moisture content environment.

7) Features for composite casing centralizer

 a. The teflon coating protect the surface of centralizer.
 b. The teflon surface looks nicer.

8) Installation

Composite casing centralizer can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.

9) Parameter


Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200

Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer

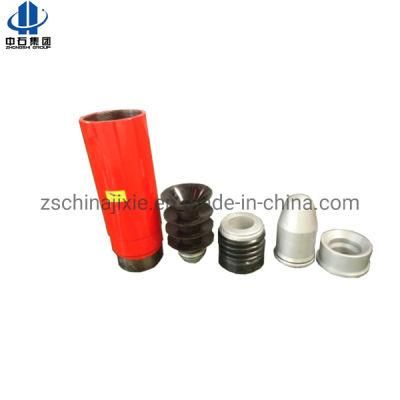

2.  Float Collar & Float Shoe
3. Cementing Plug
4.  Cementing Head
5.  Cement Basket
6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat
8. Casing / Tubing Pipe and Coupling
9. Stage Collar
10. Pumping Unit
11. Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
