• Model NO.：Mechanical Cementing Stage Collar 6 5,8"
• Cementing Collar Type：Mechanical Type
• Model：Mechanical Type Stage Collar
• Usage：Well Drilling Machinery
• Transport Package：Wooden Case
• Specification：5-1,2" to 13-3,8"
• Trademark：ZS
• Origin：Henan

Basic Info.

Model NO. Mechanical Cementing Stage Collar 6 5/8" Cementing Collar Type Mechanical Type Model Mechanical Type Stage Collar Usage Well Drilling Machinery Transport Package Wooden Case Specification 5-1/2" to 13-3/8" Trademark ZS Origin Henan

Product Description

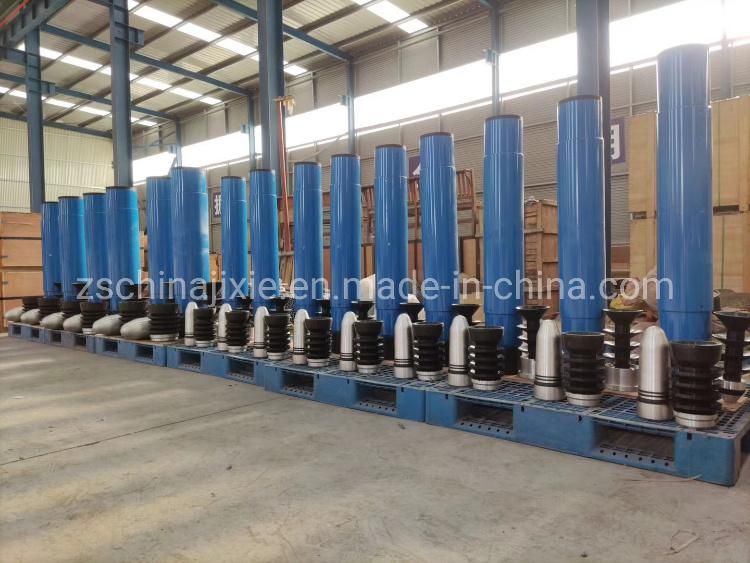

Cementing Tool Mechanical Stage Cementing Collar
1. Mechanical type
2. Top/closing plug and first stage/flexible plug
3. Battle plate/free fall opening device/battle plate
4. Available in sizes 5-1/2" to 13-3/8"
5. Free fall opening device

Technical parameter of stage cementing collar

Size, in	5 1/2"	7"	9 5/8"	13 3/8"
Max o. D., mm	Φ170	Φ208	Φ283	Φ381
Drill-out I. D., mm	Φ122	Φ155	Φ220	Φ315
Overall length, mm	1082	1182	1222	1280
Rated load, t	140	170	210	300
Sealing capacity, MPa	25	25	25	25
Opening pressure, MPa	13	13	13	14
Closing pressure, MPa	5	5	5	5
Lower sliding sleeve I. D., mm	Φ85	Φ115	Φ176	Φ203
Upper sliding sleeve I. D., mm	Φ95	Φ125	Φ197	Φ285

Product's advantage
>>mechanical stage collar allows cementing of casing string in two stages.
>>these collar set the standard for reliability, cost effectiveness, and ease of use with outstanding built-in features and quality.
>>they are the collars of choice when drilling requirements call for proven technology and low risk.
>>the compact, simple design minimizes the number of moving parts and makes the tools easier to handle.
>>the collar's clear opening and closing indications at the surface accommodate the hydraulic conditions of the well for safer, more efficient operations.
>>the internal sleeves increase reliability and prevent premature opening from formation restrictions on applied pressures.
>>it reduces total pumping pressure in long casing strings.
