Oilfield Cementing Tools Hydraulic Cement Stage Collar 339.7mm in Ukraine
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, API
- Surface Treatment：Spray-Paint
- Material：Alloy
- Type：DV Collar
- Use：Well Drilling
- OEM：Avaliable
Base Info
- Model NO.：Stage collar
- Sample：Avaliable
- Stage Collar Type：Hydraulic Type
- Transport Package：Wooden Case
- Specification：13 3,8"
- Trademark：ZS
- Origin：Henan
Description
Cementing Tools Hydraulic Stage Collar
Features of hydraulic stage collar
1.Hydraulic type

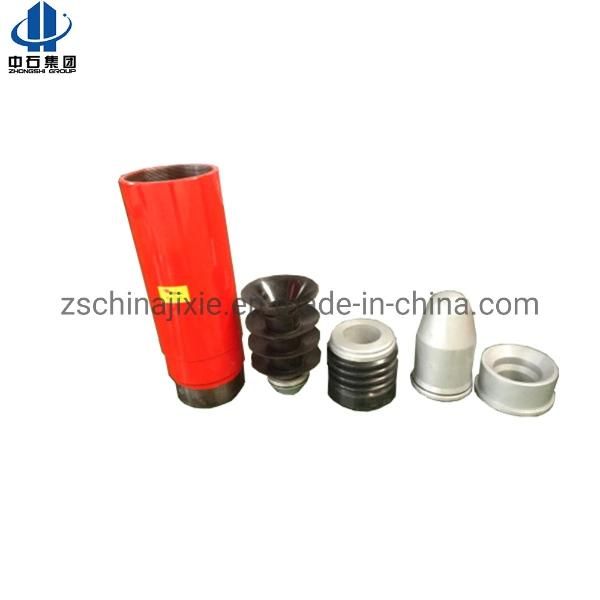

2.Top/closing plug and first stage/flexible plug
3.Battle plate/free fall opening device/battle plate
4.Available in sizes 5-1/2" to 13-3/8"
5.Api 5ct specification
Technical parameter of hydraulic stage collarSize, in 5 1/2" 7" 9 5/8" 13 3/8" Max o.D., mm Φ170 Φ208 Φ283 Φ381 Drill-out i.D., mm Φ122 Φ155 Φ220 Φ315 Overall length, mm 1082 1182 1222 1280 Rated load, t 140 170 210 300 Sealing capacity, mpa 25 25 25 25 Opening pressure, mpa 13 13 13 14 Closing pressure, mpa 5 5 5 5 Lower sliding sleeve i.D., mm Φ85 Φ115 Φ176 Φ203 Upper sliding sleeve i.D., mm Φ95 Φ125 Φ197 Φ285
Product advantage of hydraulic double stage collar
>>hydraulic stage collar meets the challenges of cementing holes at any angle with a hydraulically opened port system.
>>stage collar designed specifically for horizontal completion.
>> it is specifically used for primary cementing in deep vertical or high deviated horizontal-well conditions.
>>it reduces total hydrostatic pressureon weak formations to prevent lost circulation during cementing.
>>clear surface indications of opening and closing pressures provide safer and more efficient operations.
>>the opening pressure of the stage collar can be adjusted at rig site to meet well requirements, providing operational flexibility.
Features of hydraulic stage collar
1.Hydraulic type
2.Top/closing plug and first stage/flexible plug
3.Battle plate/free fall opening device/battle plate
4.Available in sizes 5-1/2" to 13-3/8"
5.Api 5ct specification
Technical parameter of hydraulic stage collar
Product advantage of hydraulic double stage collar
>>hydraulic stage collar meets the challenges of cementing holes at any angle with a hydraulically opened port system.
>>stage collar designed specifically for horizontal completion.
>> it is specifically used for primary cementing in deep vertical or high deviated horizontal-well conditions.
>>it reduces total hydrostatic pressureon weak formations to prevent lost circulation during cementing.
>>clear surface indications of opening and closing pressures provide safer and more efficient operations.
>>the opening pressure of the stage collar can be adjusted at rig site to meet well requirements, providing operational flexibility.
