PDC Drill Non Rotating Top& Bottom Cementing Wiper Plugs
Puyang Zhongshi Group Co., Ltd.- Certification：API
- Type：Cementing Plug
- Sample：Avaliable
- Application：Oilfield Cementing Stage
- Cement Plug Type：Non Rotating

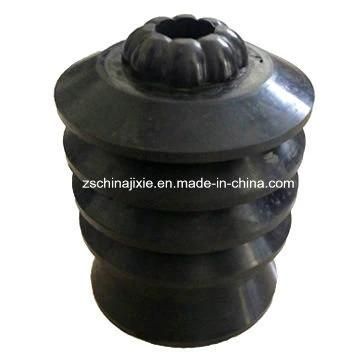

- Top Cementing Plug Color：Black
Base Info
- Model NO.：ZS15

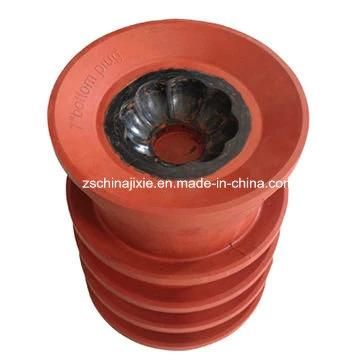

- Bottom Cementing Plug Color：Red
- Sealing Pressure：21MPa
- Bump Pressure：1MPa

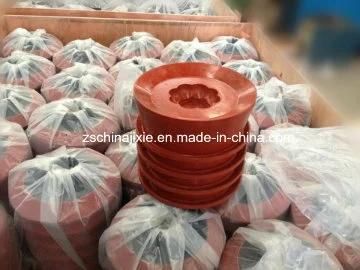

- Transport Package：Wooden Case
- Specification：4 1,2"~20"
- Trademark：ZS
- Origin：Henan
- Production Capacity：500 Piece,Pieces Per Month
Description
Casing Specification O.D of Rubber Cup in. kg/m lb/ft mm in. 4-1/2 14.14-17.26 9.50-11.60 110 4.331 5 17.11-35.86 11.50-24.10 122 4.803 5-1/2 20.83-39.88 14.00-26.80 135 5.315 7 25.30-56.55 17.00-38.00 170 6.693 7-5/8 35.72-63.69 24.00-42.80 185 7.283 9-5/8 53.57-79.62 36.00-53.50 235 9.252 10-3/4 60.27-97.77 40.50-65.70 260 10.236 13-3/8 71.43-107.15 48.00-72.00 333 13.110 20 139.89-197.93 94.00-133.00 498 19.606
Description of non rotating cementing plug
Non rotating design is aimed to decrease drill out time.
The cementing plugs lock together between the top plug and the bottom plug to eliminate rotation of the plug during drill out.
Natural rubber body.
Aluminum alloy or phenolic core.
Operating temperature is up to 200 degree Fahrenheit.
PDC drillable.
Available in 4-1/2" to 20" and other special sizes.
