• Model NO.：Stop collar
• Application：to Centralising The Centralizer
• Transport Package：Wooden Case
• Specification：standard 4 1,2′′~20′′
• Trademark：ZS
• Origin：Henan
• HS Code：8431
• Production Capacity：5000 Piece,Pieces Per Month

Basic Info.

Model NO. Stop collar Application to Centralising The Centralizer Transport Package Wooden Case Specification standard 4 1/2′′~20′′ Trademark ZS Origin Henan HS Code 8431 Production Capacity 5000 Piece/Pieces Per Month

Product Description

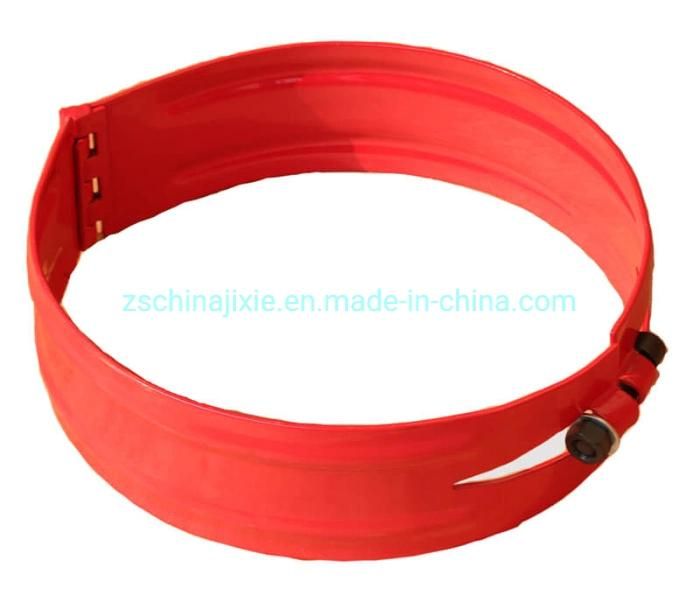

Hinged Bolt Stop Collar

Description of hinged bolted stop collar
1.Bolt lock mechanism allows for quick
2.Holding force tested as per API recommended practice 10d-2
3.Used in high axial loads place
4.Application for well drilling area, combine with the centralizers, such as bow spring centralzers, rigid centralizers.

Parameters of hinged bolted stop collar

Specifications, mm	13 3/8″	10 3/4″	9 5/8″	8 1/8″	7 5/8″	7″	5 1/2″	5″	4 1/2″
ID, mm	338	272	245	206	193	177	139	126	114
Od, mm	350	284	257	218	285	189	151	138	126
Holding force, kn	40	40	40	30	30	30	30	24	24

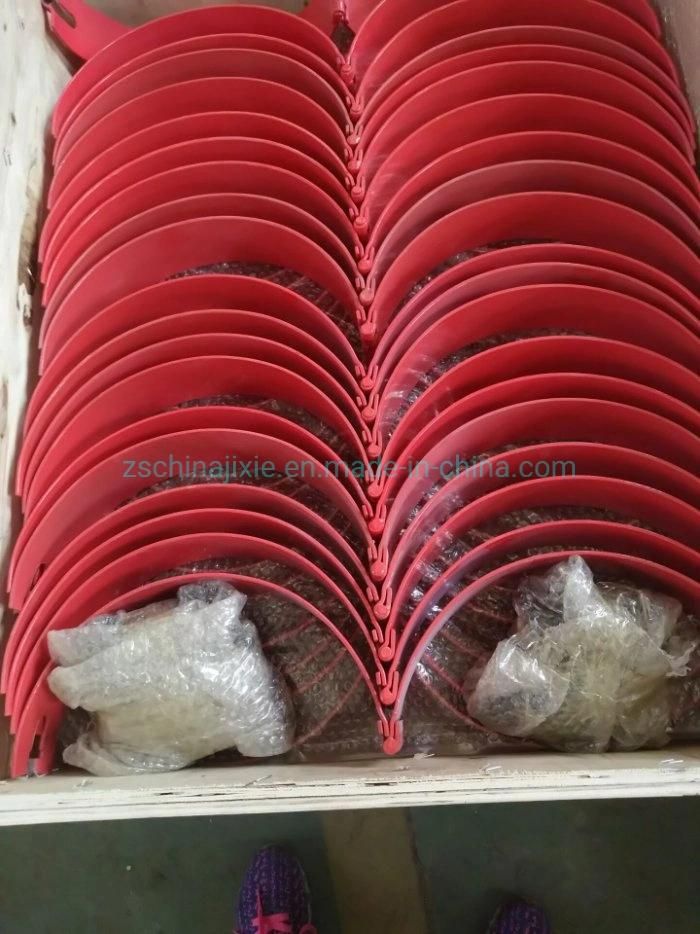

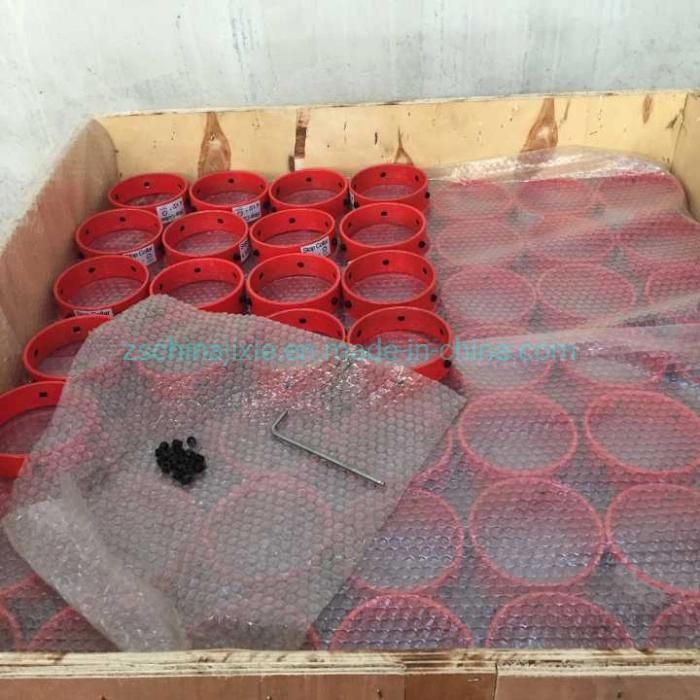

Packaging & shipping

Packing	Wooden cases or iron cases
Shipping	According to the stock situation Ocean shipment, air shipment, rail transport
