Ycxj-360/115 Hydraulic Make-up and Breakout Machine
Huludao City Liaoxi Petroleum Machine and Tools Factory- Certification：ISO
- Applicable Pipe Diameter：60-355mm
- Rated Breakout Torque：115kn·m
- Rated Makeup Torque：80kn·m
- Type：Petroleum Drilling Tool & Accessory
- Usage：Screw-on and Screw-off Machinery
Base Info
- Model NO.：YCXJ-360,115
- Power Type：Electric
- Transport Package：Wooden Case
- Origin：China
- HS Code：8431431000
- Production Capacity：6 Sets,Month
Description
Basic Info.
Model NO. YCXJ-360/115 Power Type Electric Transport Package Wooden Case Origin China HS Code 8431431000 Production Capacity 6 Sets/MonthProduct Description

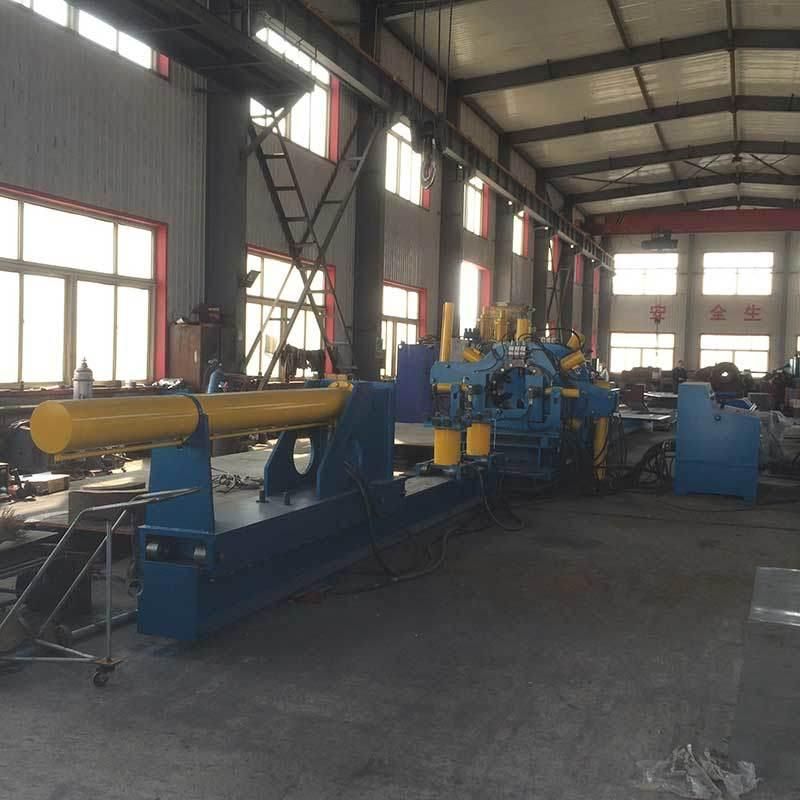

YCZJ-360/115 hydraulic bucking unit is a self contained hydraulic make-up and break-out machine designed for fast, safe and dependable maintenance of tools and motors in either a workshop or drill site locations. The basic machine consists of a bed complete with fixed headstock chuck, moveable tailstock chuck that applies torque, and a hydraulic console unit.Specifications:
| Rated Make-up torque | 80KN·m |
| Rated Break-out torque | 115KN.m |
| Accommodates | Φ60~Φ355mm |
| System pressure | 25Mpa |
| Motor power | 18.5KW |
| Motor rotating speed | 1460r/min |
| Spinner | Applicable pipe diameter:Φ60~Φ355mm Max spinner torque: 4Kn·m |
| Push-pull unit | Stroke: 1500mm Max pushing force: ≤246KN Max pulling force: ≤196KN |
