API Oilfield Hinged Positive Type Casing Centralizer

Puyang Zhongshi Group Co., Ltd.
  • Certification：ISO 9001:2008, API
  • Surface Treatment：Spray-Paint
  • Centralizer Type：Semi-Rigid
  • Structure：Automatic Reversing
  • Material：Carbon Steel and 65mn
  • Type：Centralizer

Base Info

  • Model NO.：Positive Casing Centralizer
  • Size Range：4 1,2′′---20′′
  • Standard：API
  • Process：Woven
  • Use：Well Cementing
  • Transport Package：Plywood Case
  • Specification：API, ISO
  • Trademark：Zhongshi
  • Origin：China
  • HS Code：73079900
  • Production Capacity：10000piece,Month

Description

Basic Info.

Model NO. Positive Casing Centralizer Size Range 4 1/2′′---20′′ Standard API Process Woven Use Well Cementing Transport Package Plywood Case Specification API, ISO Trademark Zhongshi Origin China HS Code 73079900 Production Capacity 10000piece/Month

Product Description

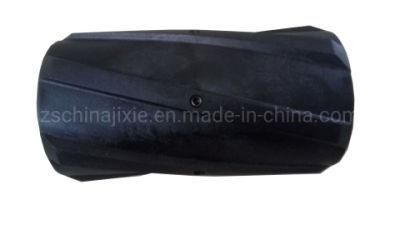

API Oilfield Hinged Positive Type Casing Centralizer

1) Material: carbon steel and 65Mn

2) Type: positive casing centralizer

3) Standard: API

4) API and ISO certified

5) Specifications: 4 1/2''---20''. More special sizes or combination are available as requested.

6) Introduction

Casing centralizers are to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations.
The positive casing centralizer is uniquely designed with flat bottom U profile of different depths permitting maximum fluid passage.

7) Application of positive casing centralizer

a. Used in most types of well designs.
b. Most suited for horizontal and directional well designs; favorable in cased hole situation.

8) Features of positive casing centralizer:

a. With straight bows for casing operations, this device provides extremely high stand-off (concentricity) when run inside.
b. Permitting maximum fluid passage.
c. The installation is very convenient by setting two halves on the piece and inserting the pin in the end collar hinge.
d. The disassembled centralizers make a compact package, greatly reducing shipping cost.

9) Parameter of positive casing centralizer


Model
(in)
Hooping In-Dia. (mm)
Hooping thickness(mm
Total length
(mm)
Max.Out-Di
(mm)
Amount of spring(mm)

5-1/2" x 8-1/2"
142-148
3-5
650±50
225±5
5

7" x 9-5/8"
181-186
3-5
650±50
255±5
6

7" x 8-1/2"
181-186
3-5
650±50
235±5
6

8-5/8 x 12-1/4"
223-228
3-5
650±50
330±5
8

9-5/8 x 12-1/4"
250-255
3-5
650±50
330±5
8

10-3/4 x 12-1/4"
274-276
3-5
650±50
330±5
9

13-3/8"x17-1/2"
342-347
3-5
650±50
450±5
11

18-5/8"x24"
475-477
3-5
600±50
610±5
12

20"x26"
509-511
3-5
600±50
660±5
12
