API Q1 Non Welded Slip on Single Piece Bow Spring Casing Centralizer Price
Puyang Zhongshi Group Co., Ltd.- Certification:ISO 9001:2000, API Q1
- Surface Treatment:Spray-Paint
- Centralizer Type:Elastic
- Structure:Slider
- Material:Alloy
- Type:Centralizer
Base Info
- Model NO.:Single Piece Centralizer
- Item:Single Piece Casing Centralizer
- Sample:Available
- OEM:Accepted

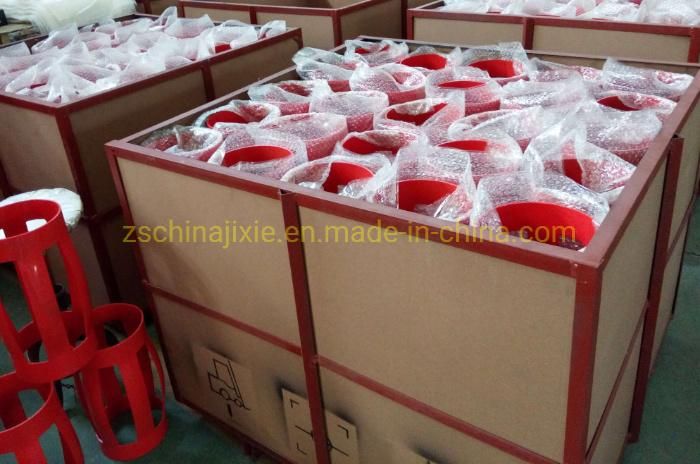

- Transport Package:Wooden Case
- Specification:4 1,2"~20"
- Trademark:ZS
- Origin:China
- Production Capacity:15000PCS,Month
Description
Basic Info.
Model NO. Single Piece Centralizer Item Single Piece Casing Centralizer Sample Available OEM Accepted Transport Package Wooden Case Specification 4 1/2"~20" Trademark ZS Origin China Production Capacity 15000PCS/MonthProduct Description
Single Piece Bow Spring Centralizer- Our single piece casing centralizer has restoring force almost two times of API standard.
- The shuttle-shape bow (narrower bar at two ends) is the unique design for our casing centralizer. This design has higher restoring force, anti-drag feature and more beautiful appearance than normal single piece centralizer.
- The baking varnish mat coating on the surface of centralizer looks more beautiful.
- The extending straight bows near two end collar achieve higher restoring force.
- The bulgy bars in middle of each bow have better restoring function.
- Made from high strength steel (65Mn steel) for whole piece.
- Designed with slip-on structure.
- Have better centralizing function because of its higher restoring force.
- Undergo special coating process to prevent from rust.
- Made of pipe, with laser cutting processing.
Specification | Casing Size (mm) | Hole Size (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
4-1/2″×6″ | 114 | 152 | 118 | 152 |
5″×6-1/2″ | 127 | 165 | 132 | 165 |
5-1/2″×6-1/2″ | 140 | 165 | 142 | 165 |
5-1/2″×8-1/2″ | 140 | 216 | 142 | 218 |
6-5/8″×8-1/2″ | 168 | 216 | 172 | 218 |
7″×8-1/2″ | 178 | 216 | 182 | 218 |
7″×9-1/2″ | 178 | 241 | 182 | 243 |
7-5/8"×9-1/2" | 194 | 241 | 198 | 243 |
7-5/8″x9-7/8″" | 194 | 251 | 198 | 253 |
9-5/8″×12-1/4″ | 244 | 311 | 249 | 311 |
10-3/4"× 12-1/4" | 273 | 311 | 278 | 311 |
12 3/4"×17-1/2" | 324 | 445 | 328 | 445 |
13-3/8″×17-1/2″ | 340 | 445 | 344 | 445 |
14-3/8"×18-3/4" | 365 | 476 | 369 | 476 |
16"×20" | 406 | 508 | 410 | 508 |
18-5/8"×24" | 473 | 610 | 474 | 610 |
20"×26" | 508 | 660 | 512 | 660 |
