• Model NO.：Boban
• for Wire Size：0.108", 0.125"
• Connection：Un,Qls,Hdqrj
• Transport Package：Wooden Case
• Specification：1.38"~3.813"
• Trademark：BOBAN & OEM
• Origin：China
• HS Code：8431431000
• Production Capacity：30 PCS Per Month

Basic Info.

Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Transport Package Wooden Case Specification 1.38"~3.813" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per Month

Product Description

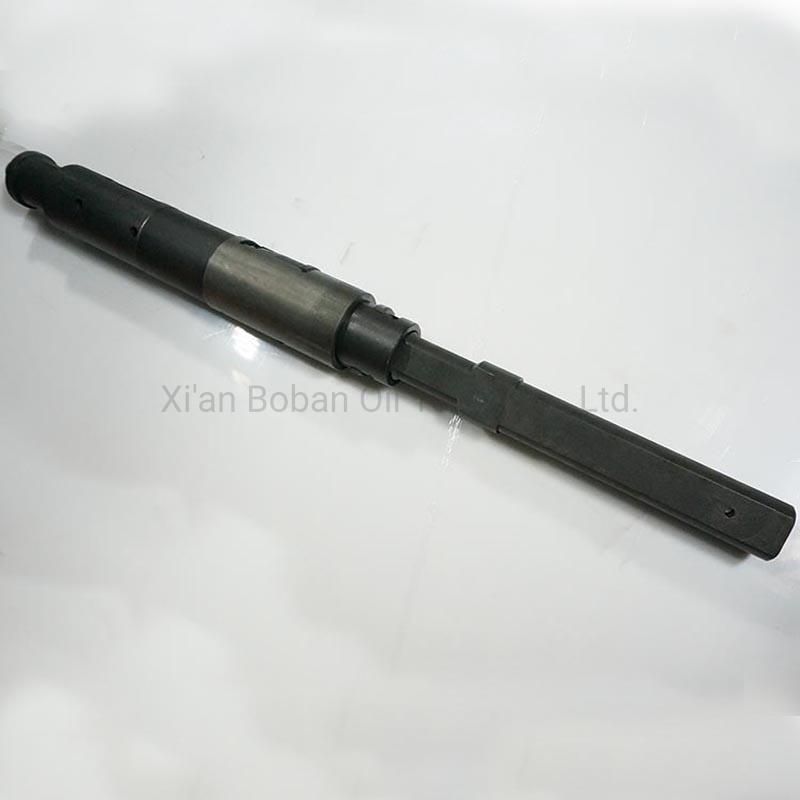

Wireline Tools Slickline Tools X-Line Running ToolI. Introduction

X running tool is a wireline service tool used to run and set type'X', 'XN' locking mandrels in landing nipples. The X running tool can be set up to run devices either in selective or non-selective mode. By choosing selective mode,devices can be run through landing nipples of the same size and type,before the operator performs a manipulation at the desired location nipple,and set the device. In the non-selective mode,the locking mandrels will locate the highest nipple.

 II. General Technical Parameters


Lock Mandrel Size to Match	Actual O.D	Fishing Neck	Top Connection	Bottom Connection
1.38"	1.75"	1.375"	15/16" -10UN	1/2-13UN"
2.313"	2.17"	1.75"	15/16" -10UN	5/8-11UN"
2.75"	2.687"	2.313"	1-1/16" -10UN	3/4-10UN"
2.813"	2.72"	2.313"	1-1/16" -10UN	3/4-10UN"
2.875"	2.843"	2.313"	1-1/16" -10UN	3/4-10UN"
3.813"	3.75"	2.313"	1-1/16" -10UN	2-1/8-12UN"

 Note. Other sizes are available upon request.
