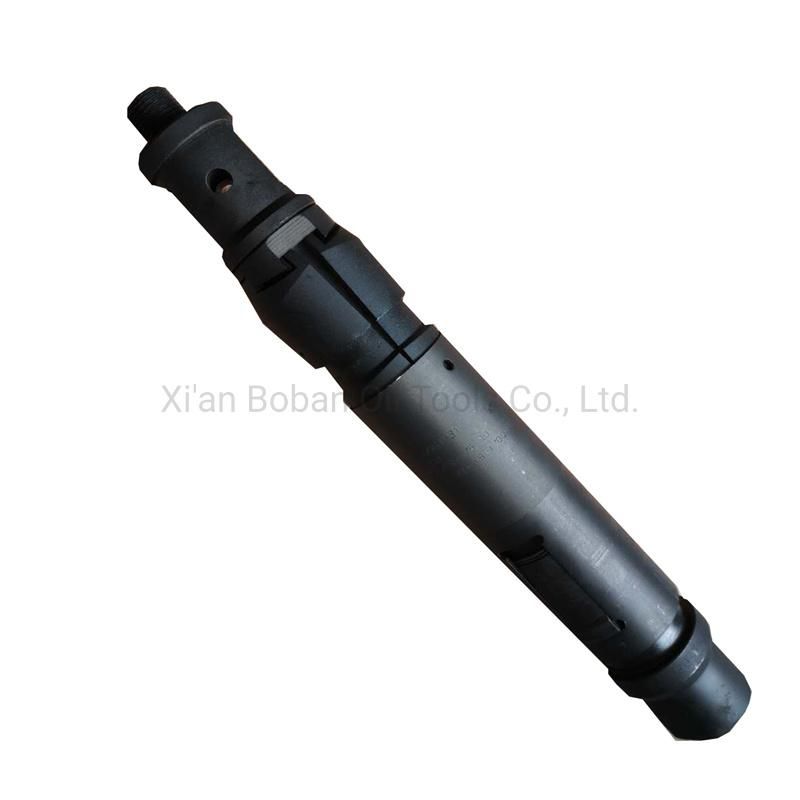

Downhole Oil Wireline Slickline Tools Bo Selective Shifting Tool
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Transport Package：Wooden Case
- Specification：1.38"~3.813"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Transport Package Wooden Case Specification 1.38"~3.813" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description
Wireline Tools Slickline Tools BO Selective Shifting ToolsI. IntroductionBO Selective Shifting Tool is used to selectively shift the inner sleeve of a sliding sleeve to the down position only. These tools are designed for tubing strings with multiple sliding sleeves of the same size so that the desired sleeve can be shifted to the down position without shifting the other sliding sleeves.
II. General Technical Parameters | SSD I.D. | Fishing Neck | Connection |
| 1.375" | 1" | 8/5-11UN |
| 1.5" | 1.187" | 15/16" -10UN |
| 1.875" | 1.375" | 15/16" -10UN |
| 2.125" | 1.375" | 15/16" -10UN |
| 2.313" | 2.313" | 15/16" -10UN |
| 2.75" | 2.313" | 1-1/16" -10UN |
| 3.125" | 1.75" | 1-1/16" -10UN |
| 3.313" | 2.313" | 1-1/16" -10UN |
