Oilfield Downhole Wireline Tools Slickline Wireline Blind Box
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:24,7
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:N,a
- Material:Cast Steel
Base Info
- Model NO.:Boban
- for Wire Size:0.108", 0.125"
- Connection:Un,Qls,Hdqrj
- Size:1"~6"
- Transport Package:Wooden Case
- Specification:1.25"~2.5"
- Trademark:BOBAN & OEM
- Origin:China
- HS Code:8431431000
- Production Capacity:30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 1"~6" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description
Oilfield Downhole Wireline Tools Slickline Wireline Blind BoxI. IntroductionBlind Box is used to beat down an obstruction encountered in the tubing string. It is also widely used to cut wireline on a rope socket during fishing operation.

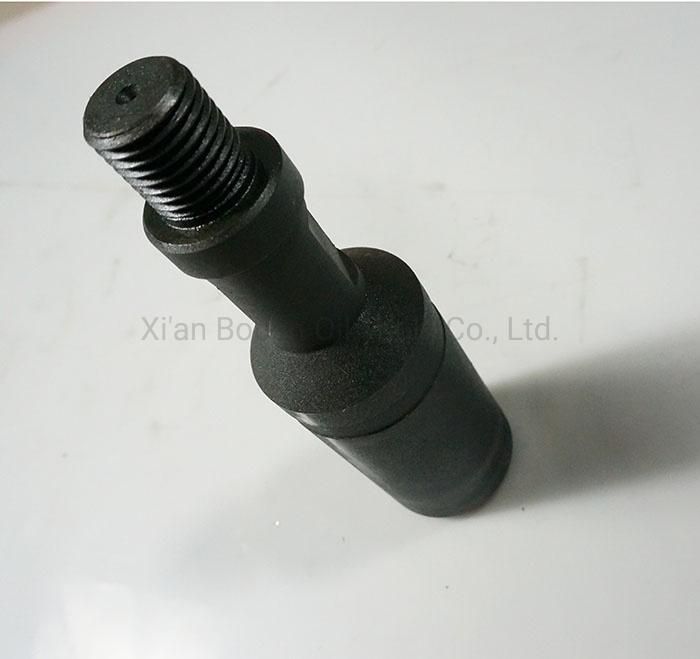

Boban series blind box is approximately nine inches long with a male thread connection and fishneck facing upwards and flat bottom down. The diameter of the Blind Box should normally be matched to the tubing in which it is to be used.
II. General Technical Parameters
Size | Fishing Neck | Connection |
1.0"~1.5" | 1.187" | 15/16-10UN |
1.5"~2.0" | 1.375" | 15/16-10UN |
2.0"~2.5" | 1.375" | 15/16-10UN |
2.5"~3.0" | 1.75" | 1-1/16-10UN |
3.0"~4.0" | 1.75" | 1-1/16-10UN |
4.0"~5.0" | 2.313" | 1-1/16-10UN |
5.0"~6.0" | 2.313" | 1-9/16-10UN |
Note. Other sizes are available upon request.
