Downhole Oil Wireline Tools Slickline Tools Wireline Knuckle Quick Joint
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Size：1.5", 1.875", 2.5"
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 1.5", 1.875", 2.5" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

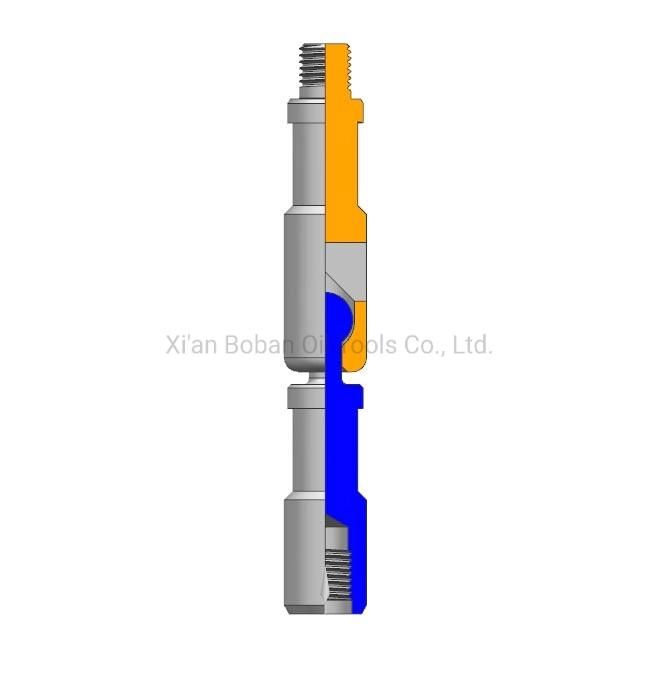

Wireline Tools Slickline Tools Wireline Knuckle Quick JointI. IntroductionWireline knuckle quick joint is usually used to connect the weight bar of pressure-measuring tool string with instruments and quickly connect the weight bar with the swab in suction operations.
BOBAN series slickline tools are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| Size | Fishing neck | Connection |
| 1.5" | 1.375" | 15/16UN |
| 1.875" | 1.75" | 1-1/16UN |
| 2.5" | 2.313" | 1-9/16UN |
Note. Other sizes are available upon request.
