Downhole Oil Tools Wireline Tools Slickline Tools B Shifting Tool
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:24,7
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:N,a
- Material:Cast Steel
Base Info
- Model NO.:Boban
- for Wire Size:0.108", 0.125"
- Connection:Un,Qls,Hdqrj
- Transport Package:Wooden Case
- Specification:1.38"~3.813"
- Trademark:BOBAN & OEM
- Origin:China
- HS Code:8431431000
- Production Capacity:30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Transport Package Wooden Case Specification 1.38"~3.813" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

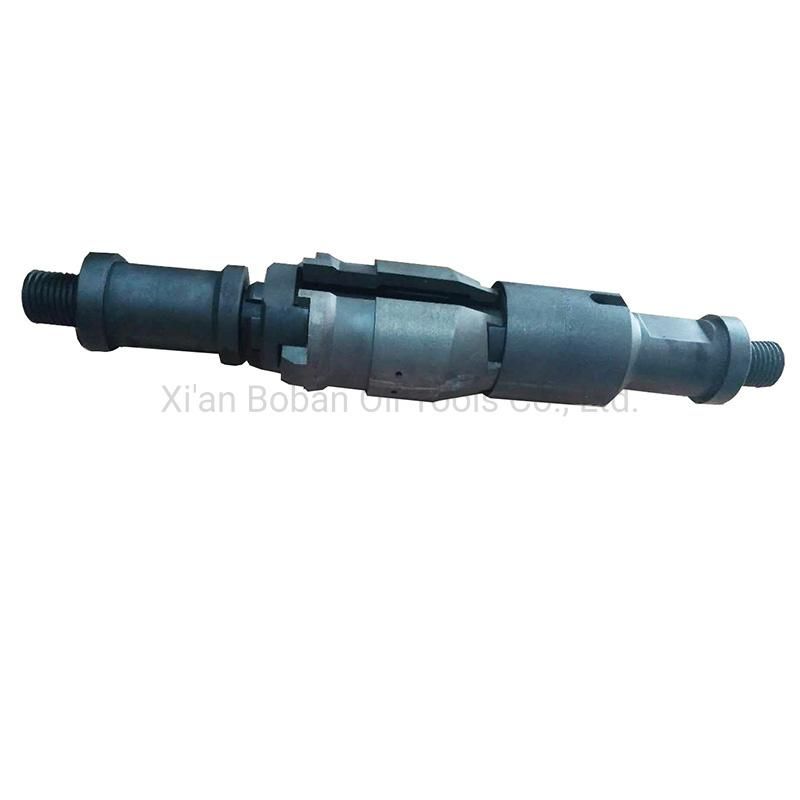

Wireline Tools Slickline Tools B Shifting ToolsI. IntroductionB Shifting Tool is used to selectively locate and shift the sliding side door sleeves. It is accomplished by B Shifting Tool keys which engage the SSD inner sleeves and depends on the directions the tools are run, up or down and sleeves are shifted.
II. General Technical Parameters
SSD I.D. | Fishing Neck | Connection |
1.375" | 1" | 8/5-11UN |
1.5" | 1.187" | 15/16" -10UN |
1.875" | 1.375" | 15/16" -10UN |
2.125" | 1.375" | 15/16" -10UN |
2.313" | 2.313" | 15/16" -10UN |
2.75" | 2.313" | 1-1/16" -10UN |
3.125" | 1.75" | 1-1/16" -10UN |
3.313" | 2.313" | 1-1/16" -10UN |
