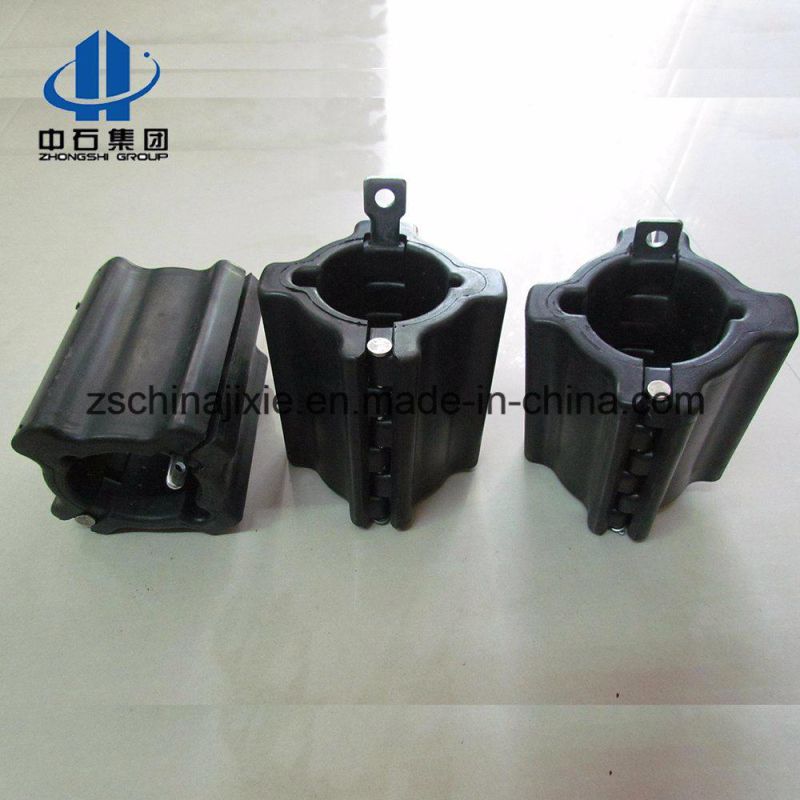

API Oilfield Tubing Centralizer Price
Puyang Zhongshi Group Co., Ltd.- Certification:API
- Surface Treatment:Without Processing
- Centralizer Type:Rigid
- Structure:Hinged
- Material:Rubber
- Type:Centralizer
Base Info
- Model NO.:tc
- Transport Package:Wooden Case
- Specification:as requested
- Trademark:zhongshi
- Origin:Henan, China
- Production Capacity:10000PC,Month
Description
Basic Info.
Model NO. tc Transport Package Wooden Case Specification as requested Trademark zhongshi Origin Henan, China Production Capacity 10000PC/MonthProduct Description
1. ApplicationTubing centralizer is mainly used for oil pipe centralizing in oil well and deflecting well , protecting of the cable damage , help to fix the position of tubes in the deviated or straight well .
2. Structure:
Tubing centralizer is mainly composed of tubing and rotating centralizer.
3. Characteristics:
a) Make sure the oil tube in the middle and reduce eccentric wear.
b) Simple structure, flexible rotating, convenient usage , long service life ,small friction and good centralizing result.
c) Used in the packer ends to reduce friction of well wall to packer barrel and prolong service packer life.
NO. | TUBING CENTRALIZER (ID) | TUBING CENTRALIZER (OD) | HEIGHT |
1 | 1.67(42.418mm) | 114.3mm | 101mm 2 |
2 | 1.67"(42.418mm) | 114.3mm | 155mm |
3 | 2-3/8(60.325mm) | 110mm | 155mm 4 |
4 | 2.375"(60.325mm) | 114.3mm | 155mm |
5 | 2-3/8"(60.325mm) | 115mm | 100mm |
6 | 2-3/8(60.325mm) | 140mm | 155mm 7 |
7 | 2-7/8(73.025mm) | 140mm | 155mm 8 |
8 | 2-7/8"(73.025mm) | 112mm | 98mm |
9 | 2-7/8"(73.025mm) | 114-115mm | 158mm |
10 | 3-1/2"(88.900mm) | 140mm | 155mm |
11 | 5"(127mm) | 184mm | 155mm |
12 | Customized sizes are acceptable |
