Oilfield Downhole Tools Wireline Slickline Bell Guide Set
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Size：2-3,8"~4-1,2"
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 2-3/8"~4-1/2" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

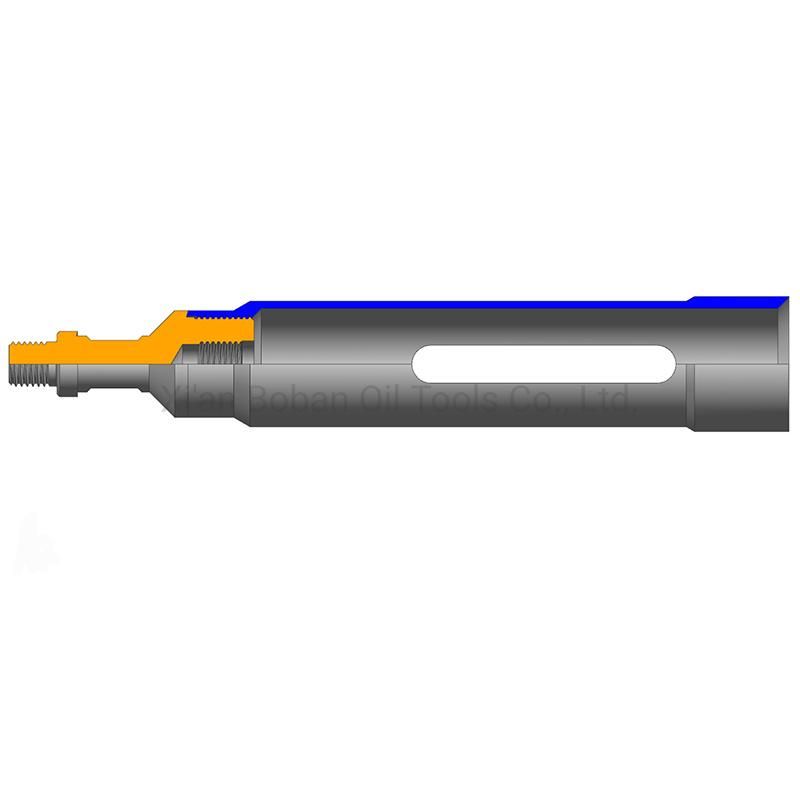

Oilfield Downhole Tools Wireline Slickline Bell Guide SetI. IntroductionBell guide set is used for minor-diameter fishing tool to carry out fishing operation in the large-diameter tubing, which can guide the fishing jar to enter into the fishing tool, and can be used as the centralizer of the pulling tool in inclined shaft and for pigging operation in tubing.
III. General Technical Parameters
| Size /Tubing Size | Fishing Neck | Connection |
| 2-3/8" | 1.375" | 15/16-10UN |
| 2-7/8" | 1.375" | 15/16-10UN |
| 3-1/2" | 1.75" | 1-1/16-10UN |
| 4-1/2" | 2.313" | 1-1/16-10UN |
Note. Other sizes are available upon request.
