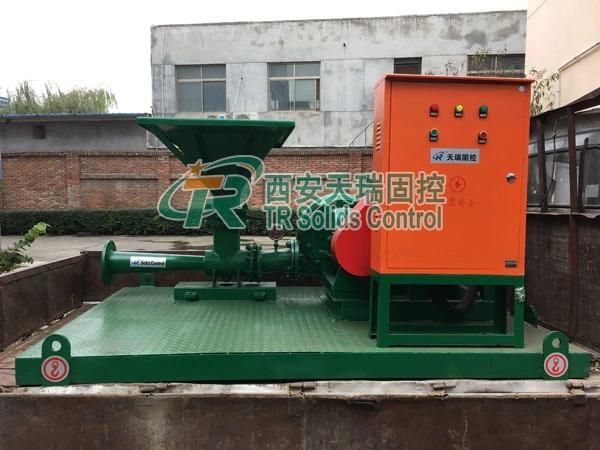

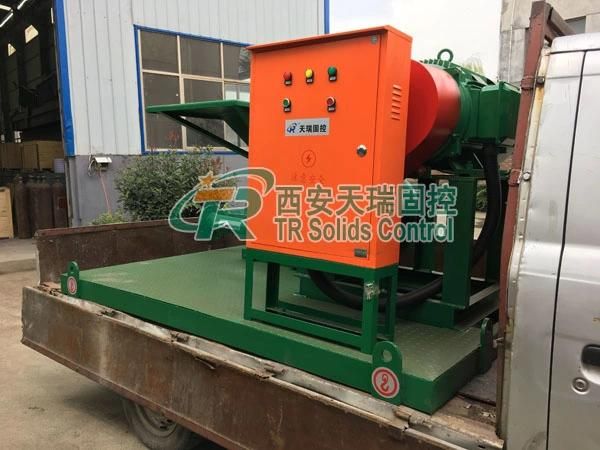

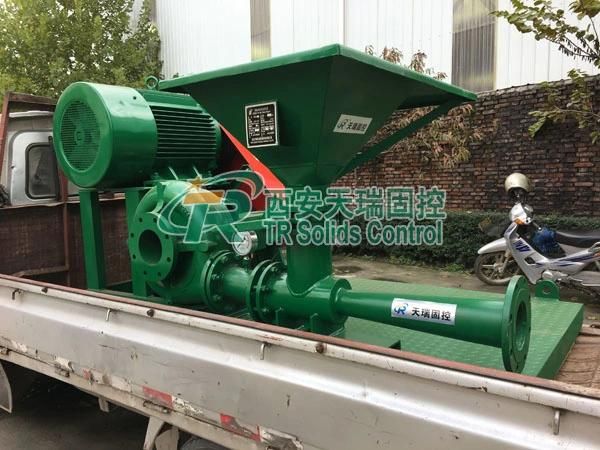

150mm Inlet Diameter Mixing Hopper API / ISO Certificated

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Mixed Funnel
  • Work Pressure：0.25 to 0.4MPa

Base Info

  • Model NO.：TRSLH150-40
  • Weight：1450kg
  • Motor Power：45kw
  • Inlet Diameter：150mm
  • Nozzle Diameter：40mm
  • Transport Package：Wooden Case
  • Specification：2200*1700*1200mm
  • Trademark：TR Solids Control
  • Origin：Xi′ an, China
  • Production Capacity：50 PCS,Month

Description

ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)Capacity240m3/h180m3/h120m3/h60m3/hWork Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40MpaInlet Diameter150mm150mm150mm100mmNozzle Diameter50mm40mm30mm30mmHopper Size750x750mm750x750mm600x600mm600x600mmBurden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/minWeight1600kg1450kg1300kg1100kgDimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm

150mm Inlet Diameter Mixing Hopper API / ISO Certificated150mm Inlet Diameter Mixing Hopper API / ISO Certificated150mm Inlet Diameter Mixing Hopper API / ISO Certificated150mm Inlet Diameter Mixing Hopper API / ISO Certificated






Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
