Centrifugal Mud Pump with Imported SKF Bearing and FKM Oil Seal

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Sand Pump
  • Flow Rate：200m3,H

Base Info

  • Model NO.：TRSB6*5-13J
  • Lift：35m
  • Impeller Diameter：13inch
  • Power：45kw
  • Electric System：50Hz
  • Ex Standard：Exdiibt4,Iecex,a-Tex
  • Weight：786kg
  • Transport Package：Wooden Case or Pallet
  • Specification：1811*558*858mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：50 Sets , Month

Description

ModelPowerFlowLift(m)EfficiencyNPSHElectricTRSB8×6-14J75KW320m3/h40m65%550HZTRSB8×6-12J355m3/h43m66%4.860HZTRSB8×6-13J55KW290m3/h33m64%5.550HZTRSB6×5-12J196m3/h48m61%360HZTRSB6×5-13J45KW180m3/h34m60%350HZTRSB5×4-14J149m3/h61m58%4.660HZTRSB6×5-12J37KW160m3/h30m60%350HZTRSB5×4-12J112m3/h45m58%4.660HZTRSB6×5-11J30KW120m3/h21m62%2.550HZTRSB5×4-12J112m3/h37m57%4.660HZTRSB5×4-12J22KW90m3/h30m56%4.550HZTRSB5×4-10J105m3/h30m57%4.260HZTRSB5x4-11J18.5KW90m3/h24m56%4.550HZTRSB4x3-12J55m3/h46m48%460HZTRSB4x3-13J15KW50m3/h40m48%4.550HZTRSB4x3-11J54m3/h35m47%460HZTRSB4x3-12J11KW45m3/h30m47%450HZTRSB3x2-12J28m3/h45m40%3.160HZTRSB3x2-12J7.5KW45m3/h24m46%450HZTRSB3x2-11J25m3/h35m41%3.160HZTRSB3x2-11J5.5KW20m3/h23m39%350HZ

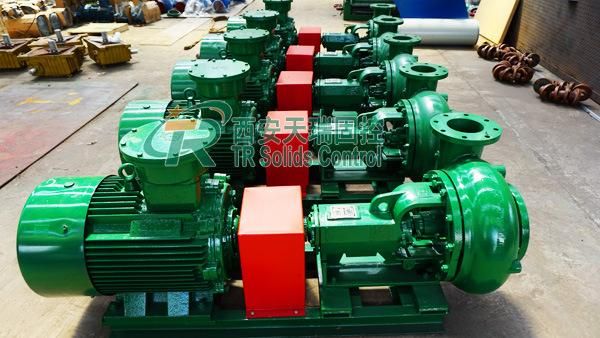

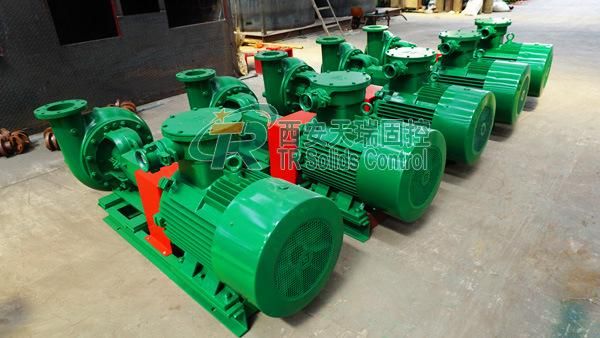

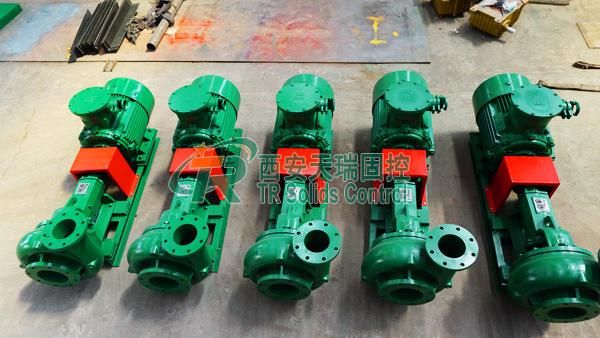

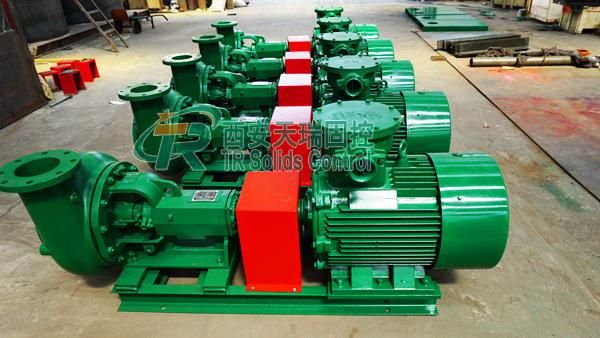

Centrifugal Mud Pump with Imported SKF Bearing and FKM Oil Seal


Centrifugal Mud Pump with Imported SKF Bearing and FKM Oil SealCentrifugal Mud Pump with Imported SKF Bearing and FKM Oil SealCentrifugal Mud Pump with Imported SKF Bearing and FKM Oil Seal



Application



TR Solids Control is dedicated to developing our product line continuously and offering innovative solutions to our customers. Our centrifugal pump is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
