• Model NO.：4sp-6-100
• Production Capacity：1000meters,Month

Basic Info.

Model NO. 4sp-6-100 Production Capacity 1000meters/Month

Product Description

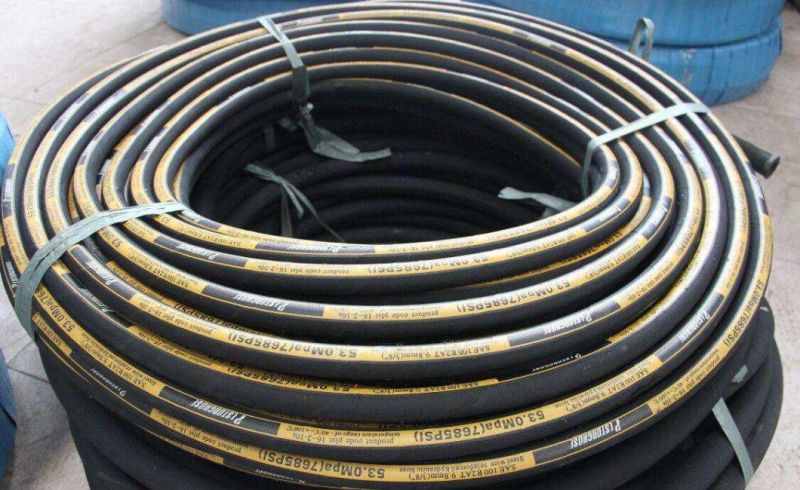

High Pressure Steel Wire Spiral Rubber Hose

High-pressure wire spiral rubber hose is mainly used for hydraulic power transmission or transmission of high-pressure media such as water, gas and oil at working temperature of - 40 +100 C. The product adopts the latest nanotechnology. The hose has excellent oil resistance, ozone resistance, aging resistance and high pulse performance.

Implementation criteria: GB/10544-2003



Basic parameters

Specifications	Internal Diameter(mm)	Diameter of Steel Wire Layer(mm)	External Diameter(mm)	Working pressure(Mpa)	Blasting pressure(Mpa)	Minimum bending radius(mm)	Reference weight(kg/m)
4sp-6-100	6	14.4	19	100	210	130	0.7
4sp-8-80	8	16.4	20.5	80	210	145	0.9
4sp-10-70	10	19.2	24	70	210	160	1.0
4sp-13-60	13	22.2	27	60	180	410	1.3
4sp-16-55	16	26	30	55	165	260	1.8
4sp-19-46	19	30	35	46	138	280	2.1
2sp-19-28	19	27	31	28	84	280	1.4
4sp-22-40	22	33	37	40	120	320	2.4
4sp-25-35	25	36	41	35	105	360	2.5
2sp-25-21	25	33	38	21	64	360	1.7
4sp32-32	32	44	49	32	96	460	3.2
2sp-32-20	32	41	46	20	60	460	2.2
4sp-38-25	38	50.8	56	25	75	560	4.4
4sp-45-23	45	57.8	61.8	23	69	650	4.9
4sp-51-20	51	63.8	69	20	60	720	5.5
2sp-51-14	51	60.8	65	14	52	720	3.5
6sp-6-110	6	16.6	20.6	110	220	180	1.0
6sp-10-77	10	21.8	25.8	77	210	210	1.5
6sp-13-66	13	24.8	28.8	66	198	260	1.8
6sp-16-61	16	29.0	33.0	61	183	310	2.0
6sp-19-60	19	33.0	37.0	60	180	350	2.5
6sp-25-50	25	39.0	44.0	50	150	430	2.9
6sp-32-45	32	47.0	50.4	45	135	530	3.8
6sp-38-45	38	54.2	57.6	45	135	660	5.8
6sp-51-45	51	67.2	70.6	45	135	820	7.2
