• Model NO.：C series horse head pump
• Type：Petroleum Drilling Machine
• Standard：API 11e
• Series：C
• Length of Stroke：20-240in
• Usage：Oil (Gas) Production Machinery
• Power Type：Electric
• Transport Package：Nude
• Specification：API, ISO
• Trademark：ZS
• Origin：Henan, China
• HS Code：84314310
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. C series horse head pump Type Petroleum Drilling Machine Standard API 11e Series C Length of Stroke 20-240in Usage Oil (Gas) Production Machinery Power Type Electric Transport Package Nude Specification API, ISO Trademark ZS Origin Henan, China HS Code 84314310 Production Capacity 100 Sets/Month

Product Description

Product Description

API 11e C Series Long Stroke Horse Head Pump


1) Standard: API Spec 11E
2) API and ISO certified
3) Type:  C Model


4) Description

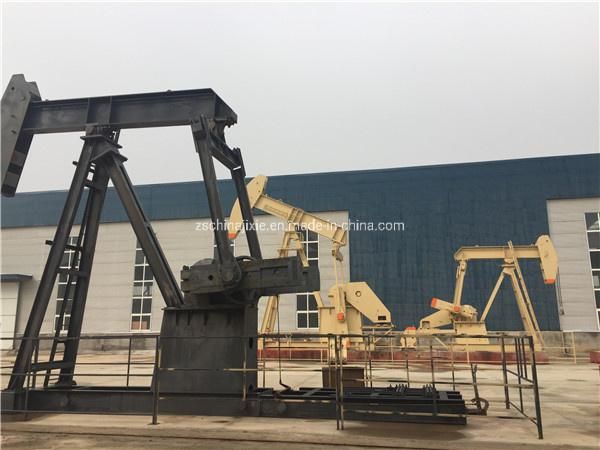

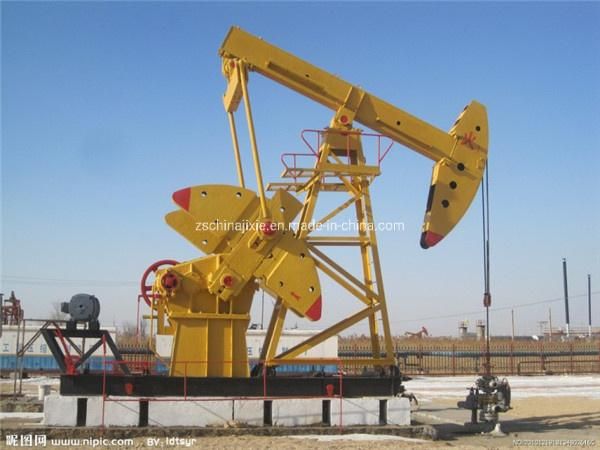

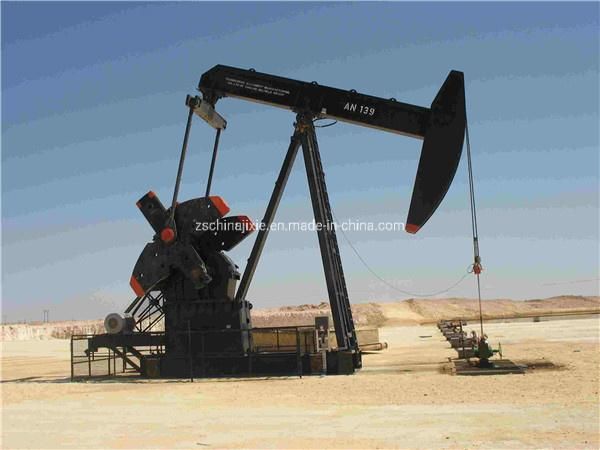

API C Series pumping unit is a conventional beam pumping unit, adopting crank as its way of balance.

5) Features of C Series

a. Featured in modular and virtual manufacturing technology design, the product boasts of its optimizing structure and high level of standardization, generalization and serialization.
b. Having passed the FEM(finite element) analysis and research, the key structural components possess stable performance and high reliability.
c. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer is renowned for its tight seal, low noise, smooth operation and reliability and durability.
d. The whole machine features in easy operation, convenient maintenance and long lifespan.


6) Parameter of C Series


Item	Pumping unit type	Lifting Capacity (lbs)	Stroke Length (in)	Rated torque (in.lbs)
1	C-912D-470-240	47,000	240 211 181	912,000
2	C-912D-427-216	42,700	216 185 155	912,000
3	C-912D-427-192	42,700	192 165 138	912,000
4	C-912D-305-192	30,500	192 165 138	912,000
5	C-912D-365-168	36,500	168 144 121	912,000
6	C-912D-305-168	30,500	168 144 121	912,000
7	C-912D-427-144	42,700	144 123 102	912,000
8	C-640D-305-192	30,500	192 165 138	640,000
9	C-640D-305-168	30,500	168 144 121	640,000
10	C-640D-365-144	36,500	144 123 102	640,000
11	C-640D-305-144	30,500	144 123 102	640,000
12	C-640D-256-144	25,600	144 123 102	640,000
13	C-640D-305-120	30,500	120 102 84	640,000
14	C-456D-305-168	30,500	168 144 121	57,000
15	C-456D-305-144	30,500	144 123 102	40,000
16	C-456D-256-144	25,600	144 123 102	57,000
17	C-456D-365-120	36,500	120 102 84	40,000
18	C-456D-305-120	30,500	120 102 84	25,000
19	C-456D-256-120	25,600	120 102 84	25,000
20	C-320D-256-144	25,600	144 123 102	320,000
21	C-320D-256-120	25,600	120 102 84	320,000
22	C-320D-213-120	21,300	120 102 84	320,000
23	C-320D-305-100	30,500	100 85 70	320,000
24	C-320D-256-100	25,600	100 85 70	320,000
25	C-320D-213-86	21,300	86 71 56	320,000
26	C-228D-213-120	21,300	120 102 84	228,000
27	C-228D-173-100	17,300	100 86 72	228,000
28	C-228D-246-86	24,600	86 71 56	228,000
29	C-228D-213-86	21,300	86 71 56	228,000
30	C-228D-200-74	20,000	74 64 54	228,000
31	C-228D-173-74	17,300	74 64 54	228,000
32	C-160D-173-86	17,300	86 74 62	160,000
33	C-160D-200-74	20,000	74 64 54	160,000
34	C-160D-173-74	17,300	74 64 54	160,000
35	C-160D-143-74	14,300	74 64 54	160,000
36	C-160D-173-64	17,300	64 54 44	160,000
37	C-114D-119-86	11,900	86 72 59	114,000
38	C-114D-143-74	14,300	74 62 51	114,000
39	C-114D-173-64	17,300	64 54 44	114,000
40	C-114D-143-64	14,300	64 52 40	114,000
41	C-114D-133-54	13,300	54 45 36	114,000
42	C-80D-119-64	11,900	64 53 42	80,000
43	C-80D-133-54	13,300	54 45 36	80,000
44	C-80D-119-54	11,900	54 45 36	80,000
45	C-80D-133-48	13,300	48 40 32	80,000
46	C-80D-109-48	10,900	48 37 25	80,000
47	C-57D-76-54	7,600	54 41 28	57,000
48	C-57D-109-48	10,900	48 37 25	57,000
49	C-57D-95-48	9,500	48 37 25	57,000
50	C-57D-89-42	8,900	42 33 23	57,000
51	C-57D-76-42	7,600	42 33 23	57,000
52	C-40D-76-48	7,600	48 37 27	40,000
53	C-40D-89-42	8,900	42 33 23	40,000
54	C-40D-76-42	7,600	42 33 23	40,000
55	C-40D-89-36	8,900	36 28 20	40,000
56	C-25D-67-36	6,700	36 28 20	25,000
57	C-25D-56-36	5,600	36 28 20	25,000
58	C-25D-53-30	5,300	30 20	25,000

Certificate


Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API Q1, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

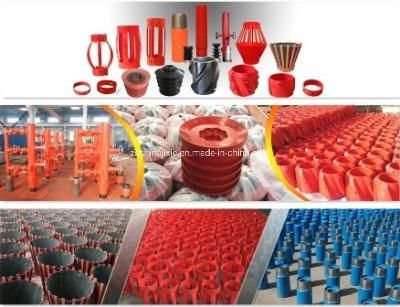

Our  products mainly include:

1. Casing Centralizer
2.  Float Collar & Float Shoe
3. Cementing Plug
4.  Cementing Head
5.  Cement Basket
6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat
8. Casing / Tubing Pipe and Coupling
9. Stage Collar
10. Pumping Unit
11. Sucker Rod


Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
