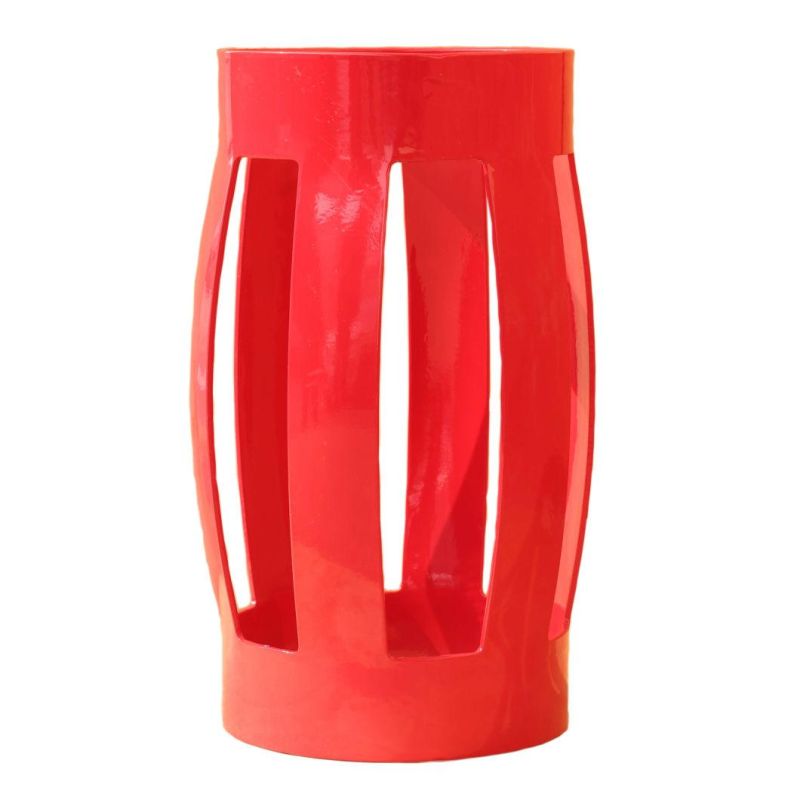

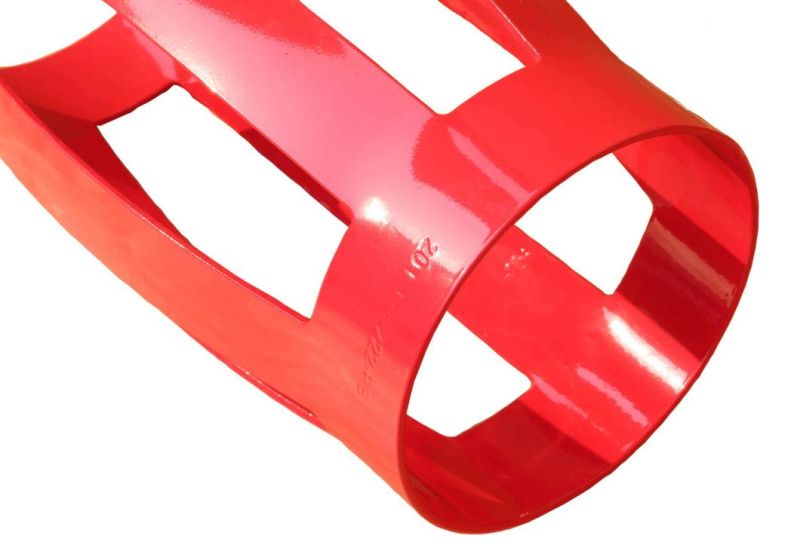

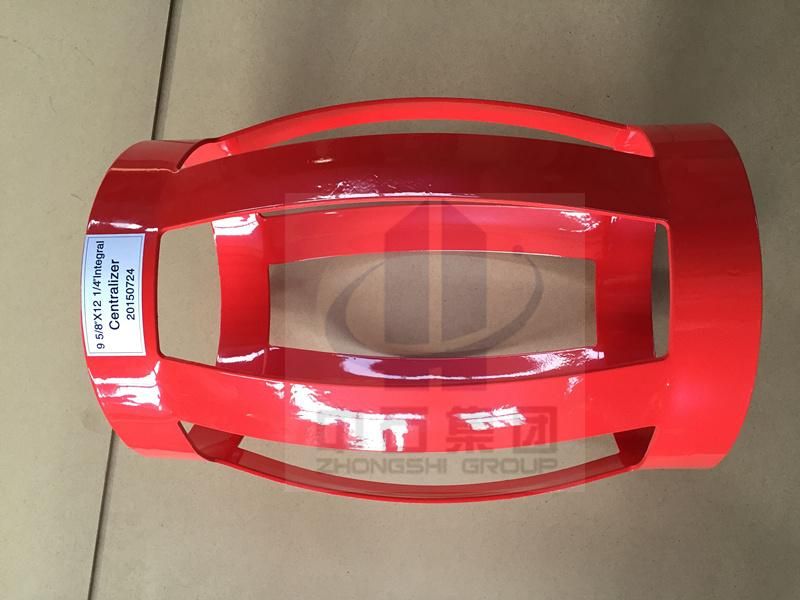

Integral Welded Slip on Single Piece Bow Spring Casing Centralizer

Puyang Zhongshi Group Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Surface Treatment：Sand Blast
  • Centralizer Type：Elastic
  • Structure：Slider
  • Material：Cast Steel
  • Type：Centralizer

Base Info

  • Model NO.：5 1,2′′*8 1,2′′
  • Samples：Workable
  • Drawings：Could Supply
  • ODM/OEM：Acceptable
  • Length：350mm
  • Bows：5PCS
  • Thickness：4mm
  • ID：142mm
  • Color：Red
  • Transport Package：Wood Cases
  • Specification：7*8 1,2
  • Trademark：ZS
  • Origin：Henan
  • HS Code：843143100
  • Production Capacity：10000PCS,Month

Description

SpecificationIn-Dia(mm)Wall
Thickness
(mm)Height(mm)Total height(mm)Largest Dia(mm)Spring Number5-1/2"*8-1/2"142-1483-55565022557"*9-5/8"181-1863-55565025567"*8-1/2"181-1863-55565023568-5/8"*12-1/4"223-2283-55565033089-5/8"*12-1/4"250-2553-555650330810-3/4"*12-1/4"274-2763-555650330913-3/8"*17-1/2"342-3473-5556504501118-5/8"*244763-5556006101220"*265103-55560066012
Integral Welded Slip on Single Piece Bow Spring Casing Centralizer
Integral Welded Slip on Single Piece Bow Spring Casing Centralizer
Integral Welded Slip on Single Piece Bow Spring Casing Centralizer
