• Model NO.：4 1,2"-20"
• Sample：Available
• Drawing：Available
• Vane Type：Spiral and Straight
• Spec：4 1 ,2"-20"
• Marking：Available
• ODM：Available
• Transport Package：Wood Cases
• Specification：4 1,2"-20"
• Trademark：zhongshi
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 4 1/2"-20" Sample Available Drawing Available Vane Type Spiral and Straight Spec 4 1 /2"-20" Marking Available ODM Available Transport Package Wood Cases Specification 4 1/2"-20" Trademark zhongshi Origin Henan, China HS Code 843143100 Production Capacity 10000PCS/Month

Product Description

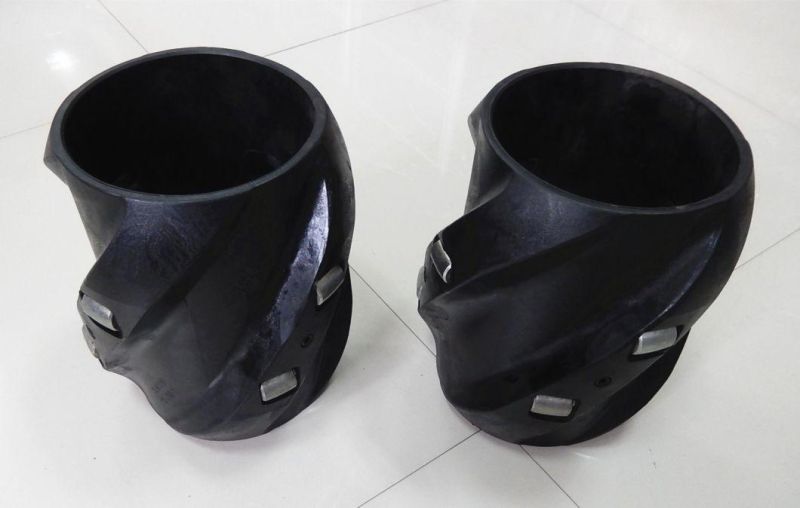

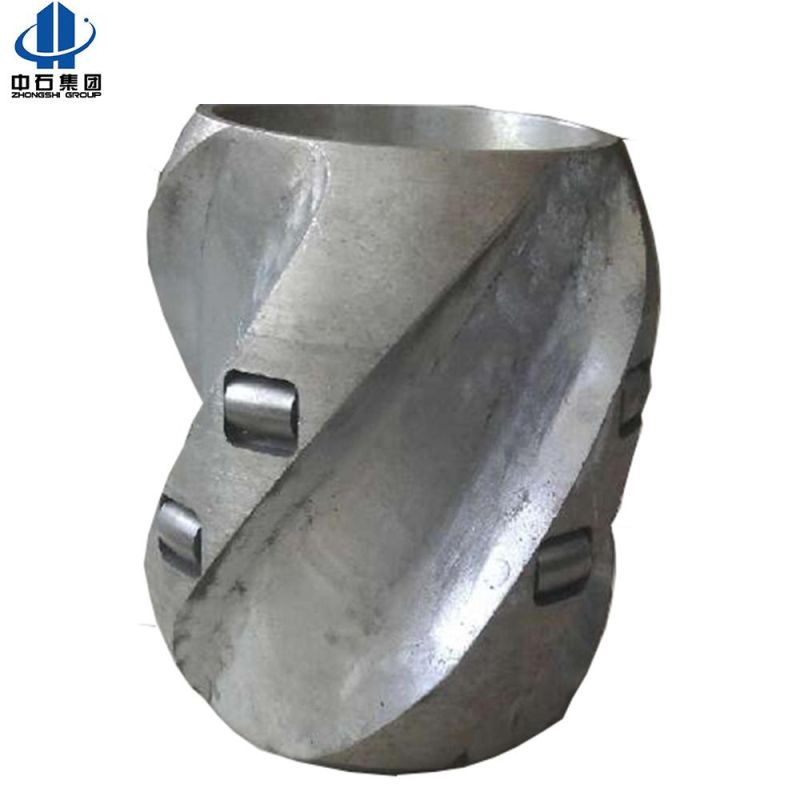

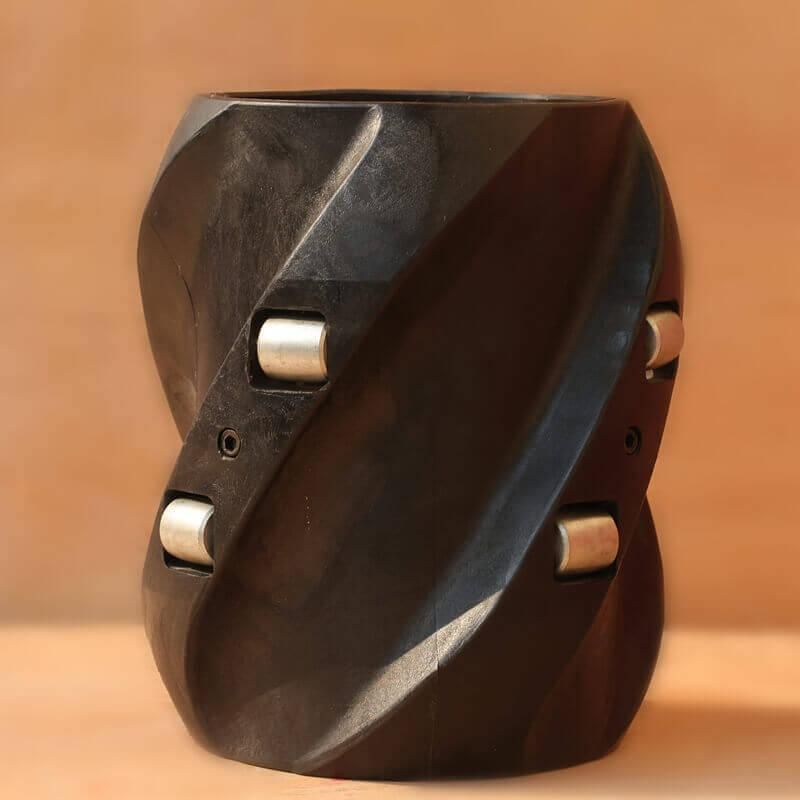

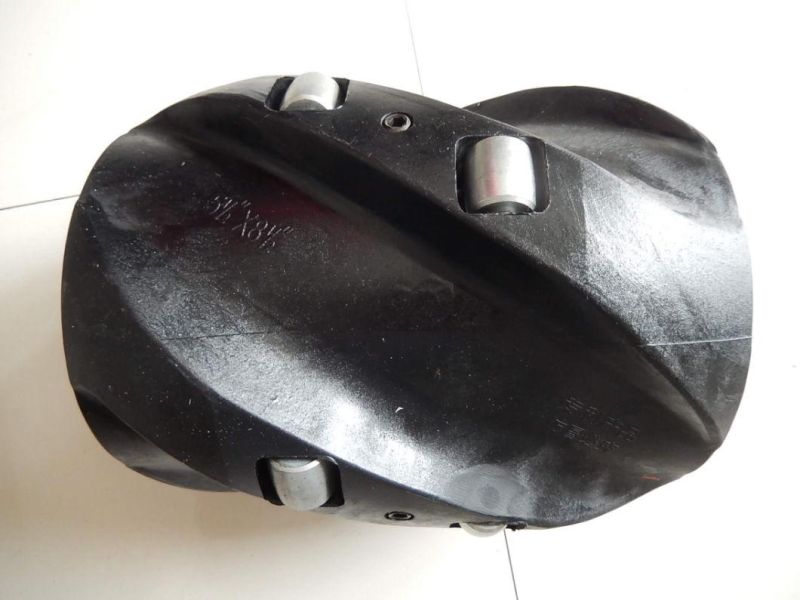

                                               spiral vane roller type steel rigid centralizer

Rigid centralizers are an integral part of the cementing process. They provide the mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Several styles of centralizers are available for matching different well specifications and hole sizes, including turbulence generating designs that help clean the annulus and distribute the cement more evenly and uniformly. All models offer ample clearance for fluid passage and are extra effective in centering the casing, even in highly deviated holes and improve cement flow by reducing the effects of channeling.

Solid rigid casing centralizers are suitable for deviated wells and horizontal wells, to help center the casing in the wellbore, allowing even distribution of the cement around te casing during cementing operations.


Comparing with the rigid centralizer, it could prevent the sticking, ensure the casing in the center of the hole and improve the cementing quality because of a little deflection.

 It could reduce the friction between the casing and wellhole because of changing the sliding friction to the rolling friction.

It could change the flow state of the slurry and improve the displacement efficeincy because of the spiral shape.


Casing centralizer is one of the necessary conventional casing accessories, upon well operationscompletion, the rational use of casing centralizer can play the role of:
Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;










Making casing centralizer centered within the well|;

Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;

 Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.

The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.








Parameter




Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200
