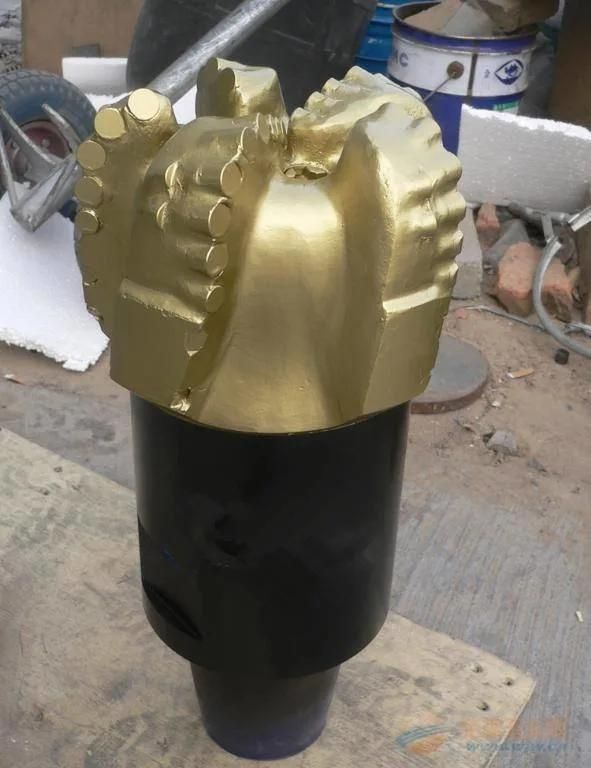

High Wear Resistance 5-Blade Steel Body PDC Drill Bit

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Surface Treatment：Without Processing
  • Operation Pressure：Atmospheric Pressure
  • Material：PDC
  • Type：Oil Drill Bit
  • Length：Stub-Length
  • Usage：Well Drilling, PCB Drilling

Base Info

  • Model NO.：ORS5193SITU
  • Size：17-1,2
  • Bit Type：Ors5193situ
  • Rotation Speed(Rpm)：60-250
  • Weight on Bit(Lklbs)：9-43
  • Transport Package：Wooden Case
  • Specification：9-43lklbs
  • Trademark：TR Solids Control
  • Origin：Xi′ an, China
  • Production Capacity：10000PCS,Month

Description

TYPESIZEAPI PIN SIZEWEIGNT(KGS)INCHMM8 1/2M1234AL8 1/2215.94 1/2REG708 1/2M3235AL8 1/2215.94 1/2REG708 1/2M3235BLF8 1/2215.94 1/2REG708 1/2M2235L8 1/2215.94 1/2REG708 1/2M3236AL8 1/2215.94 1/2REG708 3/4M3235AL8 3/4222.34 1/2REG729 1/2M3235L9 1/2241.36 5/8REG859 1/2M3236L9 1/2241.36 5/8REG8512 1/4M323512 1/4311.16 5/8REG105





5-Blade steel body PDC Bits

  • 5 blades,large PDC cutter,deep blade and wide junk slot design may obtain high ROP in soft To medium hard formation.
  • Slant gauge design may increase bit drilling stability.
  • Bit body is made from an integrated alloy forging and finished by advanced numerical control processing equipment.
  • Hard-facing is applied to main surfaces of bit to increase bit abrasive-resistance and anti-corrosion.

Technical Data



Bit typeSizeNo. of NozzlesGauge length

API reg.

pin conn

Hydraulic flow rate(gpm)Rotation speed(rpm)Weight on bit(lklbs)ORS5193SITU17-1/210R3-1/47-5/8950-143060-2509-43ORS5192SITU12-1/47R36-5/8590-98060-3005-30ORS5194SITU12-1/47R36-5/8590-98060-3005-30ORS5194SITU9-1/27R36-5/8550-79060-3006-30ORS5193SITU8-1/22R24-1/2380-67060-3005-25




High Wear Resistance 5-Blade Steel Body PDC Drill Bit
Why Choose Us
1) Experience in casting for over 15 years and served customers all around the world.
2) Standard material according to technical drawing
3)Stable quality
4) On-time delivery
5) Competitive price and good service
6) Positive customer feedback from domestic and international market
7) International advanced-level equipment such as CNC, numerical lathes, furnance, welding
  equipment, CMM and detect &testing equipment we used to ensure our product's quality.
8) OEM service, your demand is our pursued.
9) ISO9001:2008 and TS16949 quality control
10) Standard: ASTM BS DIN etc


FAQ
1. What are the main materials of your products?
We are focused on casting and processing of grey iron and ductile iron products.
2. What is your MOQ?
We will arrange production based on your drawings and deliver your products as per your requirements. We will do our best to meet your demands.
3. What is your main equipment?
Our casting equipment is brought from Japan. They mainly include: FBO auto molding lines, sand lines, cleaning lines, vertical and horizontal machining centers and CNC machining center.
4. Do you make the molds by yourself?
We are facilitated with advanced mold making equipment and CNC processing machining center. Therefore, we can make molds independently.
5. What are your advantages?
1) Professional staff
2) 24 years of casting experience
3) Rigorous quality control system
4) On-time delivery rate is over 98%
