• Model NO.：KQ65-14 KQ65-21 KQ65-35 KQ65-60 KQ65-70 KQ78-70 KQ
• Type：Composite
• Model：Kq65-21
• Working Pressure：21
• Nominal Diameter：65
• Working Temperature：-29~121 Degree
• Main Valve：Xff65-21
• Trickle Valve：Xff65-21
• by-Pass Valve：Xff65-21
• Transport Package：Wooden Case
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84749000
• Production Capacity：300 PCS , Month

ModelKQ65-14KQ65-21KQ65-35KQ65-60KQ65-70KQ78-70KQ65-105KQ78-105Working pressure142135607070105105Nominal diameter6565656565786578Working temperature-29~121 degreeApplicable mediumPetroleum, natural gas, water, etcMain valveXFF65-14XFF65-21PFF65-35PFF65-60PFF65-70PFF78-70PFF65-105PFF78-105XFF65-35XFF65-60XFF65-70Trickle valveXFF65-14XFF65-21PFF65-35PFF65-60PFF65-70PFF78-70PFF65-105PFF78-105XFF65-35XFF65-60XFF65-70By-pass valveXFF65-14XFF65-21PFF65-35PFF65-60PFF65-70PFF78-70PFF65-105PFF78-105

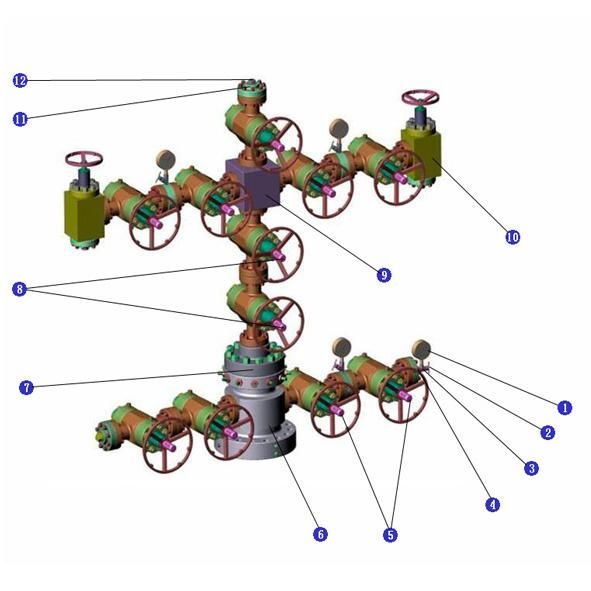

No.ItemQuantityMaterialRemarks1Pressure Gage4  2BJ14H70/4 Break Valve1  3Break Valve's Joint14130 465/70Meter's Flange24130 5PFFA65/70 Flat Valve8  6Tubing Head Cross-Tee14130 7Upper Flange14130 8PFFA78/70 Flat Valve3  9Small Cross-Tee 11  10JLK65/70 Throttle Valve2  11Christmas Tree Cap14130 12BJ25W70/5 Break Valve1


KQ Series Sulfide Resistant Oil/Gas Production Wellhead

KQ Series Sulfide-Resistant Oil/Gas Production Wellhead is designed and manufactured according to SY5-93 and API spec 6A.All pressure bearing parts and flanges are made of quality alloy steel forgings, NDT and special heat treated to guarantee safety, providing the wellhead with excellent sulfide-resistant property.
The KQ series wellhead equipment consists of bottom flange, upper flange, tubing head, gate valve, small cross, stop valve, and meter, etc.
Specifications for Products
