Beneficiation Equipment, Wear-Resistant Ceramic/Polyurethane Hydrocyclone
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Certification:ISO 9001:2008
- Power Source:Hydraulic
- Operation Pressure:Atmospheric Pressure
- Material:Wear-Resistant Ceramic,Polyurethane
- Type:Hydrocyclone
- Transport Package:Wooden Case
Base Info
- Model NO.:50, 75, 100, 125, 150
- Specification:2"3"4"8"10"
- Trademark:TR Solids Control
- Origin:Xi′an, China
- HS Code:84749000
- Production Capacity:1000PCS,Month
Description
Basic Info.
Model NO. 50, 75, 100, 125, 150 Specification 2"3"4"8"10" Trademark TR Solids Control Origin Xi′an, China HS Code 84749000 Production Capacity 1000PCS/MonthProduct Description

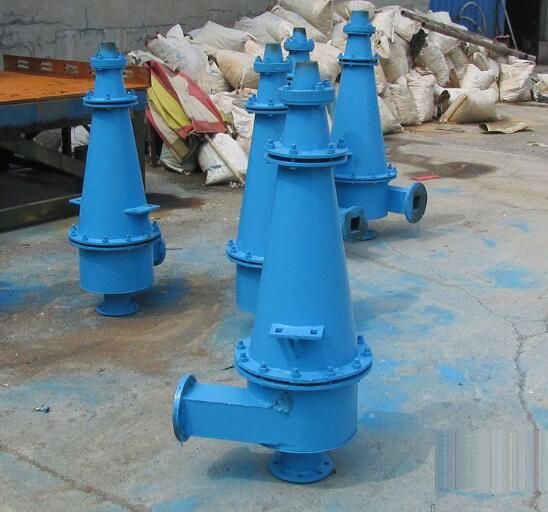

Wear-resistant Ceramic/Polyurethane HydrocycloneAs a common separation and classification equipment, the working principle of hydrocyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the hydrocyclone tangentially from the periphery of the hydrocyclone at a certain pressure, a strong three-dimensional elliptical strong rotational shear turbulence is generated. Because of the density difference between the coarse and light phases, the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different. Under centrifugal sedimentation, most of the heavy phases are discharged through the underflow port of the cyclone, while most of the light phases are discharged by the overflow pipe, thus achieving the purpose of separation and classification.
Technical parameters of Hydrocyclone
Specifications | Overflow pipe diameter(mm) | Bottom Flow Diameter(mm) | Cone angle(°) | Maximum feed size(MPa) | Feed pressure(Mpa) | Processing capacity(m2/h) | Separation granularity(μm) |
710 | 240.260.280 | 120.140.160 | 20 | 16 | 0.03-0.4 | 400-550 | 74-250 |
660 | 180.200.200.220.240 | 80.110.150 | 20 | 16 | 0.03-0.4 | 250-360 | 74-220 |
610 | 160.180.200.220 | 90.100.110 | 20 | 12 | 0.03-0.4 | 200-260 | 74.200 |
500 | 130.140.150.160.180.220 | 35.45.50.65.70.80.90.100 | 10 20 25 | 10 | 0.03-0.4 | 140-220 | 74-200 74-200 74-150 |
350 | 80.90.105.115.120 | 30.35.40.45.50.60.70 | 15 20 25 | 6 | 0.03-0.4 | 60-105 | 50-150 50-150 50-120 |
300 | 55.65.80.100.120 | 20.25.30.35.40 | 15 20 25 | 5 | 0.05-0.4 | 45-90 | 50-120 50-150 50-150 |
250 | 60.75.80.100.120 | 16.18.20.25.30.35.40 | 10 15 20 | 3 | 0.05-0.4 | 40-65 | 40-100 40-100 30-100 |
200 | 40.50.55.60 | 16.20.24.28.32 | 15 20 | 2 | 0.05-0.4 | 25-40 | 40-100 10-100 |
165 | 40.50.55.60 | 30.35.40.45.50 | 20 6 | 1.5 | 0.05-0.4 | 20-30 | 40-90 |
150 | 30.35.40.45.50 | 8.10.12.14.16.18.20.22 | 8 15 20 | 1.5 | 0.05-0.4 | 11-20 | 30-74 30-74 20-74 |
125 | 25.30.35.40 | 8.10.12.14.16.18.20.22 | 7 8 | 1 | 0.05-0.4 | 8-15 | 20-100 20-74 20-100 |
100 | 20.25.30.40 | 8.10.12.14.16.18 | 8 15 20 | 1 | 0.05-0.4 | 5-12 | 10-100 10-74 |
75 | 15.17.20 | 4.5.6.7.8.10.12 | 7 15 | 0.6 | 0.1-0.5 | 2-5 | 20-74 5-40 |
50 | 11.13.15.18 | 3.6.8.10.12 | 6 5 | 0.3 | 0.1-0.5 | 1.5-3 | 10-74 5-30 |
40 | 10.12.14.16 | 1.2.3.4.5.8.10.12 | 4 5 | 0.3 | 0.1-0.5 | 1-2 | 10-50 |
25 | 5.6.7.8 | 2.3.4.5 | 3 5 | 0.2 | 0.1-0.5 | 0.3-1 | 3-10 2-10 |
10 | 2.3.4 | 1.2 | 4 | 0.1 | 0.1-0.6 | 0.05-0.1 | 1-5 |
