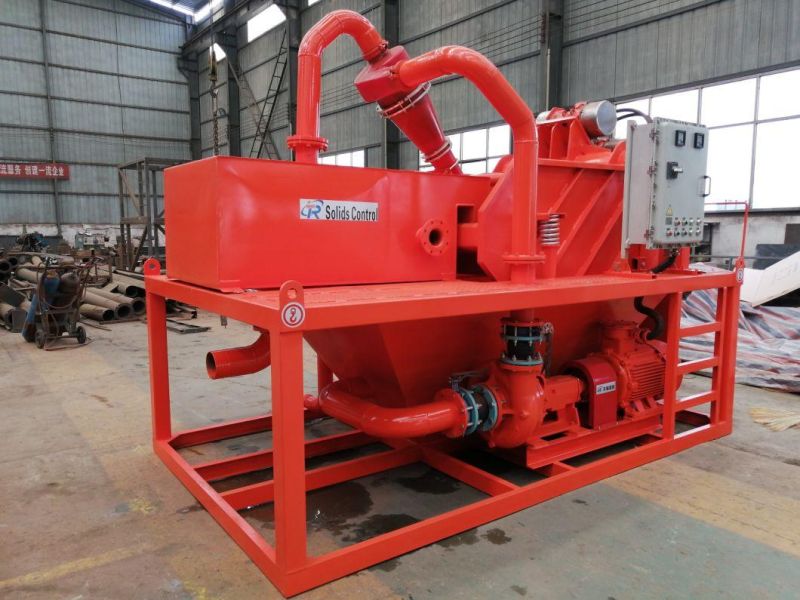

100m³ /H Capacity Bored Piling Mud Desander System

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000
  • Transport Package：Wooden Case or by Container
  • Specification：3100*2030*1300mm
  • Trademark：TR Solids Control
  • Origin：China

Base Info

  • Model NO.：TRZX-100,50
  • Production Capacity：50000PCS,Year

Description

ModelTRZX-50/25TRZX-100/50TRZX-200/50Fluid Capacity≤50m³/h≤100m³/h≤200m³/h

Sludge Treatment Capacity

≤26T/h≤50m³/h≤50m³/hSeparation Point25μm50μm50μmShale ShakerTRZS753TRZS753TRZS705

Screen Area

Upper:700×1250

Bottom:750×900×2

Upper:700×1250

Bottom:750×900×2

Upper:750×900×2

Bottom:700×1250×3

Vibration Motor

1.0kw×21.0kw×21.5KW×2Matching PumpTRSB4×3-12(15KW)TRSB5×4-13(30KW)TRSB6×5-13J(45KW)Matching HydrocycloneDN100×4DN250×1DN250×2Tank Dimension2.1x1.5x2.6m3.05x2.0x1.2m3.6x2.1x1.2mDimension 3.12x2.2x2.38m3.7x2.2x2.54m 100m3 /H Capacity Bored Piling Mud Recycling System
100m3 /H Capacity Bored Piling Mud Recycling System
100m³ /H Capacity Bored Piling Mud Desander System100m³ /H Capacity Bored Piling Mud Desander System



Application


TR Bored Pile Desanding Plant has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
