Vertical 3kw Motor Submersible Mud Pump in Solids Control System

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Carbon Steel
  • Type：Submersible Mud Pump
  • Speed：1430r,Min
  • Motor：3kw

Base Info

  • Model NO.：50YZ25-12
  • Lift：12m
  • Transport Package：Pallet or Wooden Case
  • Specification：Indefinite
  • Trademark：TR Solids Control
  • Origin：Xi′ an, China
  • Production Capacity：50000PCS,Year

Description

Basic Info.

Model NO. 50YZ25-12 Lift 12m Transport Package Pallet or Wooden Case Specification Indefinite Trademark TR Solids Control Origin Xi′ an, China Production Capacity 50000PCS/Year

Product Description

Vertical Long Shaft Drilling Submersible Slurry Pump in Solids Control System API Spec

Introduction

Our YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type, and uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump's impeller is semi-open type, and it's equipped with mixing blade in the stretch part of impeller inlet.

The main features of submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don't set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The standard length of pump inserting liquid is 1.3 meter, and can be equipped with a suction tube if required. We operate shaft seals by inserting the pump into liquid. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.

Application

Submersible slurry pump is widely used in trenchless HDD, oil & gas drilling, city bored piling, tunnelling construction, Drilling Waste Management, Coal Bed Gas Solids Control System, Water Drilling, Oil Sludge Dewatering Systems, environment protection, Oil Mud Seperation, coal washing, municipal projects, thermal power generation, mining, paper making, cement plant etc.

Features of TR Submersible Slurry Pump
  1. Enough rigidity in submerged parts of the shaft.
  2. Impeller is semi-open type.
  3. Submerge length can be customizable.
  4. Compact design covers small space.
  5. No bearing between impeller and pump for less repair cost.
  6. Could convey the medium containing solid particles with larger density.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.
Technical Data of YZ Series Submersible Slurry Pump

ModelFlowLiftSpeedMotor
50YZ25-1225m3/h12m1430r/min3kw
50YZ20-1820m3/h18m1430r/min4kw
80YZ50-20B40m3/h16m1440r/min5.5kw
80YZ50-2060m3/h17.5m1440r/min7.5kw
80YZ80-2090m3/h22m1460r/min11kw
100YZ100-30A75m3/h30m1470r/min18.5kw
100YZ100-3060m3/h36m1470r/min22kw
100YZ160-38B82m3/h33m1480r/min30kw
100YZ120-60120m3/h40m1480r/min45kw
150YZ250-40A135m3/h35m1480r/min55kw
150YZ250-40B120m3/h28m1480r/min37kw

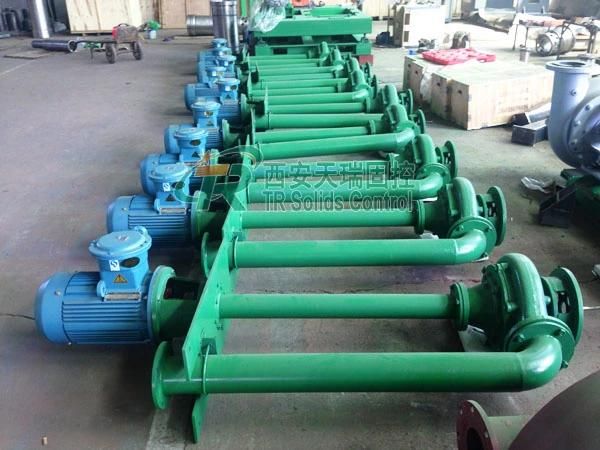

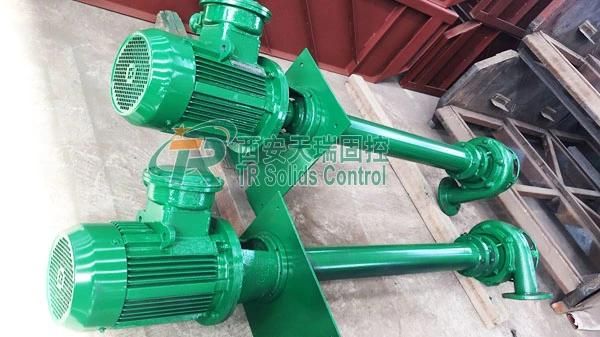

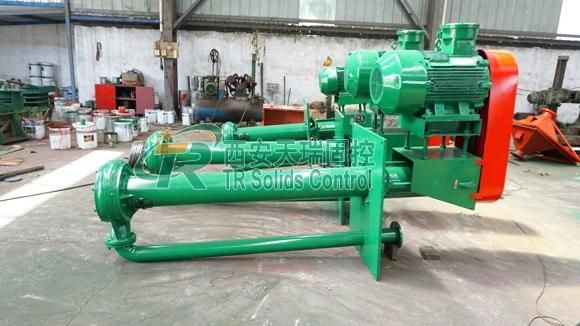

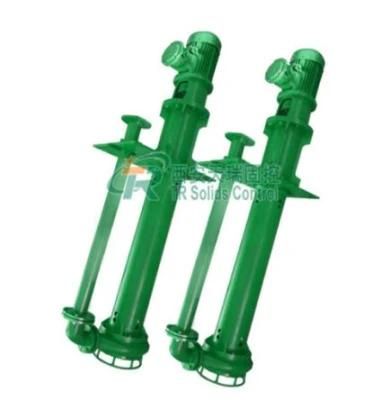

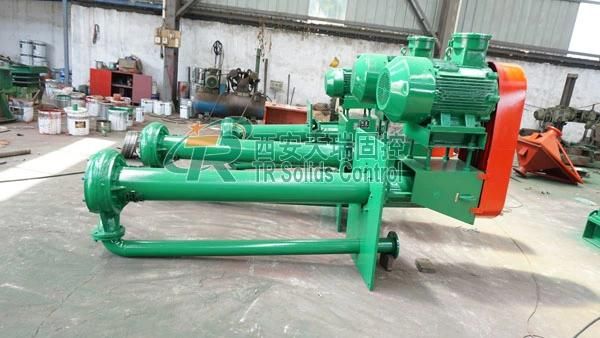

Vertical 3kw Motor Submersible Mud Pump in Solids Control SystemVertical 3kw Motor Submersible Mud Pump in Solids Control SystemVertical 3kw Motor Submersible Mud Pump in Solids Control SystemVertical 3kw Motor Submersible Mud Pump in Solids Control System


 Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
