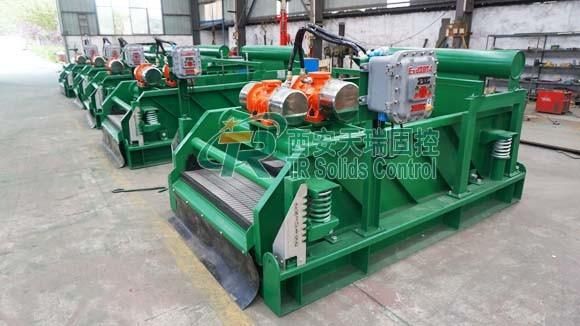

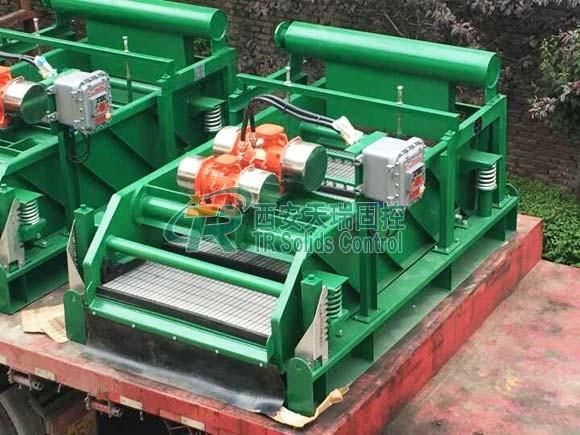

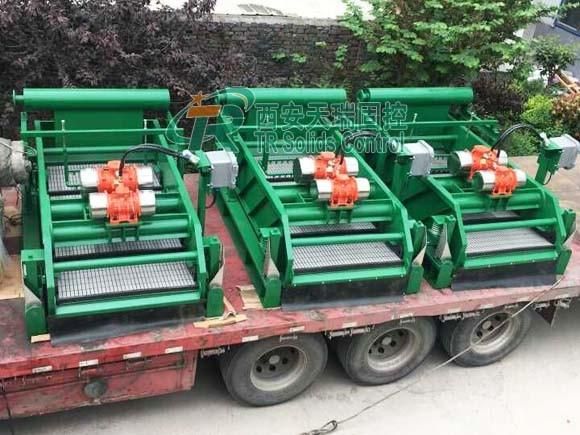

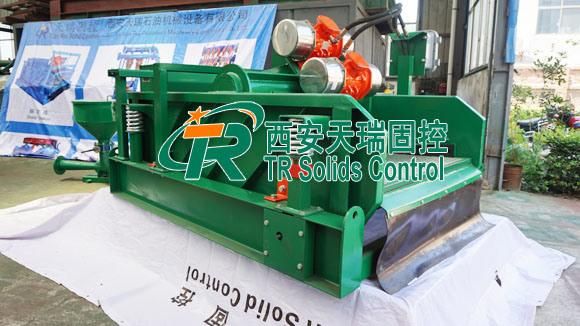

140m3/H Shale Shaker for Trenchless Horizontal Direction Drilling

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Manufacturing Process：Casting
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Carbon Steel
  • Capacity：130m3,H
  • Motor Power：1.94+1.0kw

Base Info

  • Model NO.：TRPS584
  • Screen Specs.：(700*1250mm)*3PCS
  • Double Amplitude：7mm
  • Vibration Motion：Balanced Elliptical Motion
  • Transport Package：Pallet or Wooden Case
  • Specification：2600*1645*1380mm
  • Trademark：TR Solids Control
  • Origin：China
  • HS Code：84748090
  • Production Capacity：50000PCS,Year

Description

(Model)TRPS703TRPS585-4TRZS703TRZS585Vibration MotionBalanced Elliptical MotionLinear MotionTreatment Capacity130m³/h140m³/h120m³/h130m³/hMotor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4Screen Area2.6m²2.7m²2.6m²2.7m²Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1GDouble Amplitude7mm7mm6mm6mmDeck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°Ex StandardExdIIBt4 / IECEX / A-TEXWeight1630kg1618kg1620kg1600kgDimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mmRemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3

140m3/H Shale Shaker for Trenchless Horizontal Direction Drilling140m3/H Shale Shaker for Trenchless Horizontal Direction Drilling140m3/H Shale Shaker for Trenchless Horizontal Direction Drilling140m3/H Shale Shaker for Trenchless Horizontal Direction Drilling






Application



TRPSG mud shale shaker is widely used in Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, environment protection, Coal Bed Gas Solids Control System, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
