Petroleum Equipment & Machinery

Home > Product > Mud Circulating System

Long Shaft Submersible Slurry Pump for Horizontal Directional Drilling

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Submersible Sludge Pump
  • Flow：135m3,H

Base Info

  • Model NO.：150YZ250-40A
  • Lift：35m
  • Speed：1480r,Min
  • Motor：55kw
  • Transport Package：Pallet or Wooden Case
  • Specification：Indefinite
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：100 Sets Per Month

Description

ModelFlowLiftSpeedMotor50YZ25-1225m3/h12m1430r/min3kw50YZ20-1820m3/h18m1430r/min4kw80YZ50-20B40m3/h16m1440r/min5.5kw80YZ50-2060m3/h17.5m1440r/min7.5kw80YZ80-2090m3/h22m1460r/min11kw100YZ100-30A75m3/h30m1470r/min18.5kw100YZ100-3060m3/h36m1470r/min22kw100YZ160-38B82m3/h33m1480r/min30kw100YZ120-60120m3/h40m1480r/min45kw150YZ250-40A135m3/h35m1480r/min55kw150YZ250-40B120m3/h28m1480r/min37kw

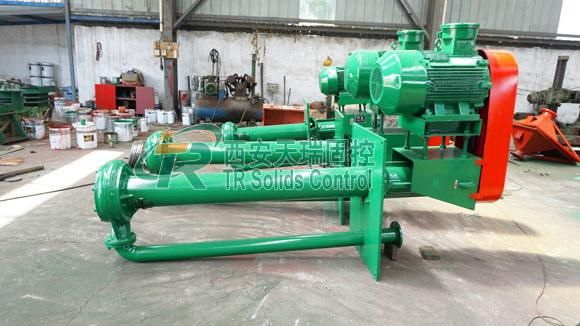

Long Shaft Submersible Slurry Pump for Horizontal Directional Drilling
Long Shaft Submersible Slurry Pump for Horizontal Directional DrillingLong Shaft Submersible Slurry Pump for Horizontal Directional DrillingLong Shaft Submersible Slurry Pump for Horizontal Directional Drilling





Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.

http://trsolidscontrol.en.made-in-china.com




Tag:

submersible sludge pump,

submersible sewage pump
