• Model NO.：Various
• Origin：Xi′ an, China
• Production Capacity：1000meters,Month

Basic Info.

Model NO. Various Origin Xi′ an, China Production Capacity 1000meters/Month

Product Description

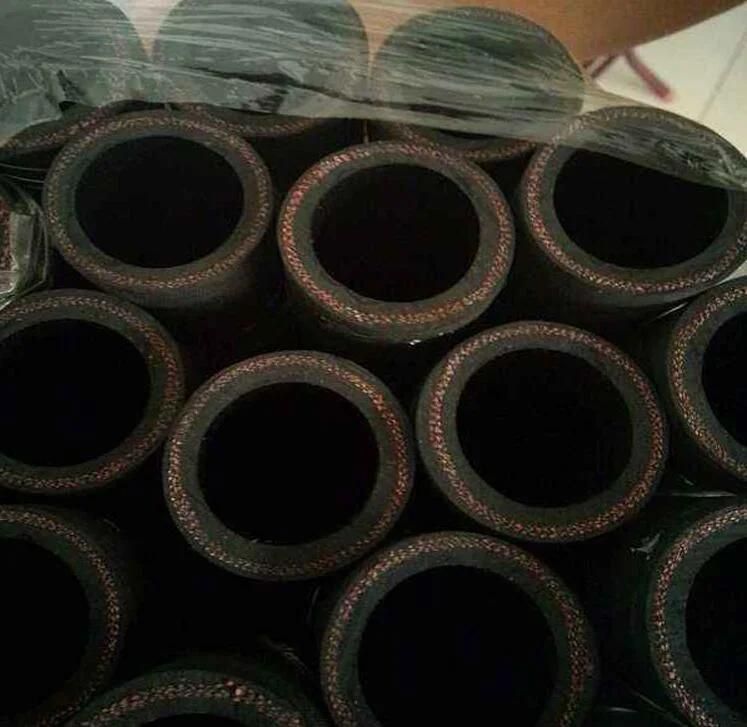

Low Pressure Hose Series

The Products include oil hose,steam hose,sand-blast hose,food rubber hose,oxygen-blast hose,and all kinds of special rubber hoses,used in machinery,chemical industry,petroleum,metallurgy,food,and so on.



Special Hose

Name	ID(mm)	Performance and use	Remark
Rubber hoses for water transportation	10-25	Rubber hoses for temperature no more than 60°C.
Rubber hoses for compressed air	6-25	Compressed air for mining or construction industry with working temperature range-20°C~+45°C,and working pressure no more than 2.5 MPa.
Steam hose	6-76	Convey saturated steam or hot water under 170°C,working pressure 0.35-2.54Mpa
Oil conveying and sucking hose	6-152	At normal temperature,suck and convey petroleum,machine oil,lubrication and other mineral oil.Working pressure is 0.5-2.5 MPa.	External armored structure can also be used.
Food conveying and sucking hose	16-152	Suck milk,wine,eatable oil,and liquid beverage.Working pressure is 0.5-2.5MPa
Acid,alkali conveying hose	19-203	At normal temperature,convey thick acid,alkali soulution.Working pressure is 0.5-2.4 Mpa	When thick acid conveyed,but rubber can be used as the inner layer,and fabric glass can be used as the fabric layer.
Abrasive sans blast hose	19-76	Wind pressure sand spraying hose,working pressure is 0.5-2.5Mpa	Hose for he cement tank car can be produced like this,
Tank elbow	25-102	Locomotive tank water piping
Nylon thread sprial oxygen blowing hose	51-127	Used as the joint hose of pure oxygen top-blown convener,working pressure is 2.5Mpa;steel wire braided extruded type can also be used,working pressure is 8 Mpa	Vulcanized metal flanges on both ends,protected by external asbestos layer.
Mud pumping hose	196-900	Used for mud piping of dredge,working pressure below2.5Mpa	Flange adapter can be accompanied according  the need of design.
Hole making hose	25;32;40	Used for hole making of bridge and highway construction,bearing tensile force,1.5-2.30kg /pipe	Extemal rubber layer with high tearing strength
