Petroleum Equipment & Machinery

Home > Product > Oilfield Shale Shaker

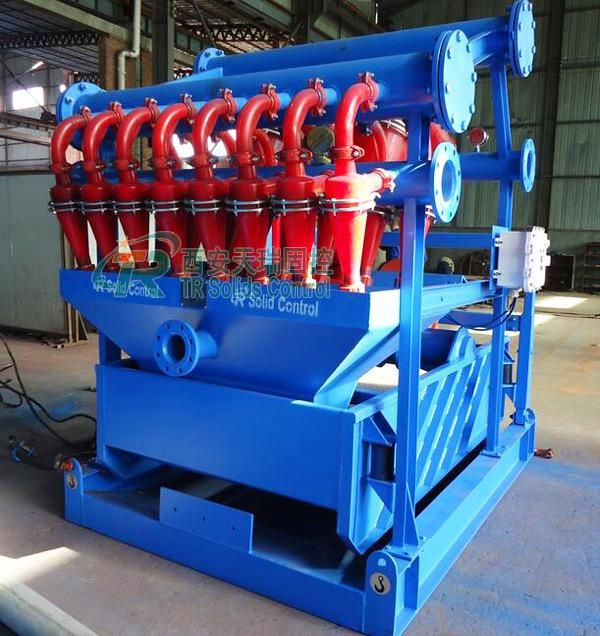

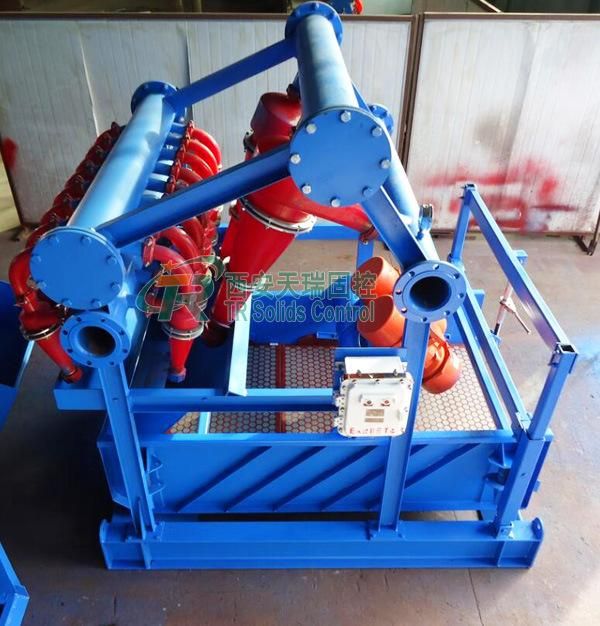

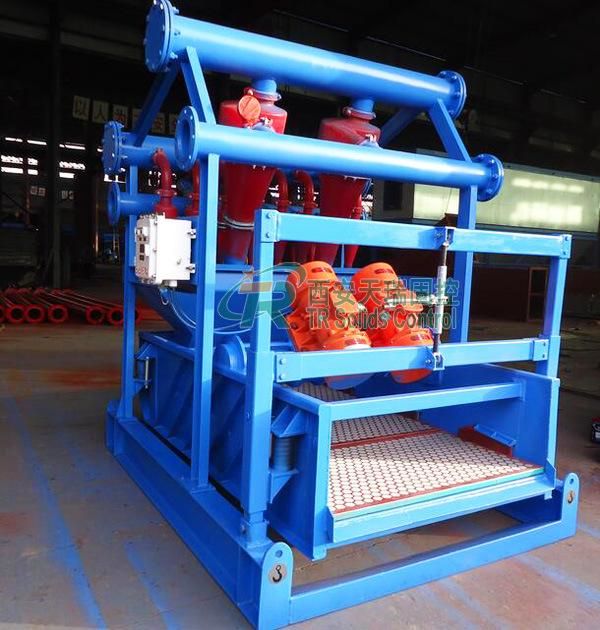

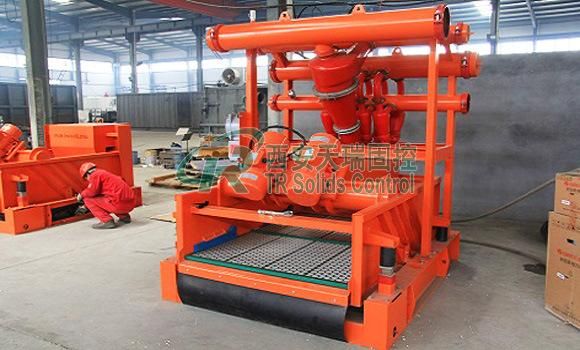

High Performance Mud Cleaner with Bottom Shale Shaker

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Capacity：130m3,H
  • Motor Power：1.94+1.0kw
  • Screen Specs.：(700*1250mm)*3PCS
  • Double Amplitude：7mm
  • Vibration Motion：Balanced Elliptical Motion

Base Info

  • Model NO.：TRQJ200*1S-100*4N
  • Transport Package：Pallet or Wooden Case
  • Specification：2770*1785*1690mm
  • Trademark：TR Solids Control
  • Origin：China
  • HS Code：84748090
  • Production Capacity：50000PCS,Year

Description

ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20NCapacity60m³/h120m³/h240m³/h320m³/hDesander Cyclone Specs8"10"Desander Cyclone Qty1223Desilter Cyclone Specs4"Desilter Cyclone Qty481220Working Pressure0.25~0.4mpaInlet SizeDN125mmDN150mmDN150mmDN200mmOutlet SizeDN150mmDN200mmDN200mmDN250mmSeparation Point15μm~44μmBottom ShakerTRZS60TRZS752TRZS752TRZS703Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15mWeight600kg980kg1250kg2350 kgRemarkAll mud cleaners could be customized without bottom shaker.

High Performance Mud Cleaner with Bottom Shale ShakerHigh Performance Mud Cleaner with Bottom Shale ShakerHigh Performance Mud Cleaner with Bottom Shale ShakerHigh Performance Mud Cleaner with Bottom Shale Shaker





Application

TRQJ series mud cleaner is widely used in oil & gas drilling, trenchless HDD, city bored piling, tunneling construction, Drilling Waste Management, environment protection, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Water Drilling etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
