• Model NO.：TRZX-100,50
• Specification：3100*2030*2500mm
• Trademark：TR Solids Control
• Origin：Xi′ an, China
• Production Capacity：15 Set , Month

Basic Info.

Model NO. TRZX-100/50 Specification 3100*2030*2500mm Trademark TR Solids Control Origin Xi′ an, China Production Capacity 15 Set / Month

Product Description

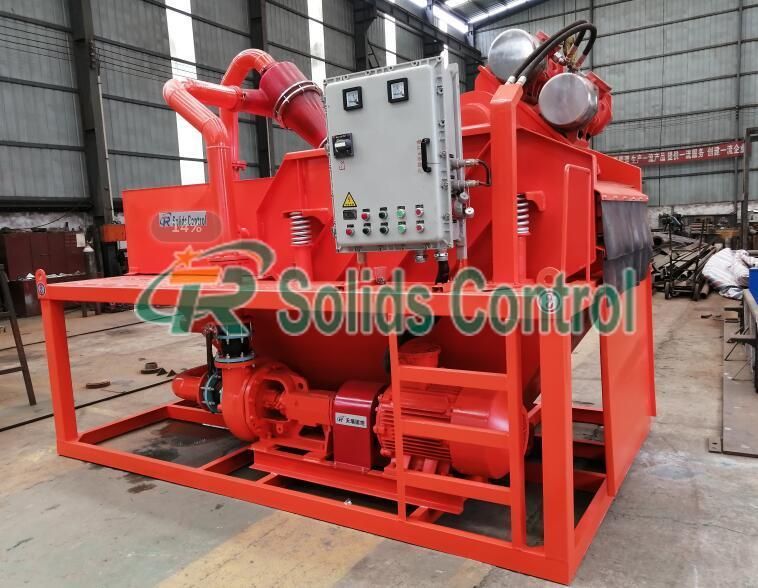

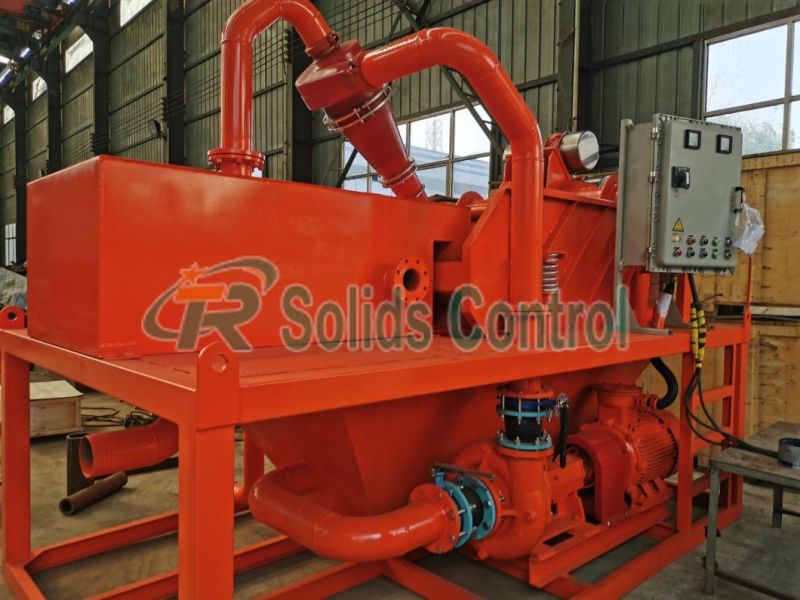

High Capacity ZX100/50 Bored Pile Desanding Plant , For Well Drilling Slurry Treatment

Introduction

TR bored pile desanding plant is design for bored pile & TBM on construction with economy option and very compact design for small footprint. Our desanding plant can be used for economy option as HDD mud recycling system. The desanding plant is design for flexible working and installation to suit bored pile, TBM or HDD mud recycling system.

This kind of mud recovery system is mainly used in mud solids wall taken modern foundation engineering construction, circulation drilling technology of large diameter pile and cut-off walls. The device makes the mud purification fully, for effective separation of slag. It reduces the sticking accidents, improves the drilling quality. During this process mud can be recycled fully, it reduces the cost and the pollution to environment.

Features of TR Bored Pile Desanding Plant

1. High mud handling capacity, sand can be removed efficiently.
2. Effective separation of soil crusts, pore-forming efficiency is enhanced.
3. Mud reuse saves mud making materials and reduces construction cost.
4. It can improve quality and working efficiency of pore making in the pile foundation.
5. Mud closed-circuit circulation mode and low ballast material moisture content are helpful to reduce environment pollution.
6. The equipment for modular design and compact structure, making it easy to put in the construction and convenient to move.


Technical Data of TR Bored Pile Desanding Plant


Model	TRZX-50/25	TRZX-100/50	TRZX-200/50
Fluid Capacity	≤50m³/h	≤100m³/h	≤200m³/h
Sludge Treatment Capacity	≤26T/h	≤50m³/h	≤50m³/h
Separation Point	25μm	50μm	50μm
Shale Shaker	TRZS753	TRZS753	TRZS705
Screen Area	Upper:700×1250 Bottom:750×900×2	Upper:700×1250 Bottom:750×900×2	Upper:750×900×2 Bottom:700×1250×3
Vibration Motor	1.0kw×2	1.0kw×2	1.5KW×2
Matching Pump	TRSB4×3-12(15KW)	TRSB5×4-13(30KW)	TRSB6×5-13J(45KW)
Matching Hydrocyclone	DN100×4	DN250×1	DN250×2
Tank Dimension	2.1x1.5x2.6m	3.05x2.0x1.2m	3.6x2.1x1.2m
Dimension		3.12x2.2x2.38m	3.7x2.2x2.54m







Application
 TR Bored Pile Desanding Plant has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
