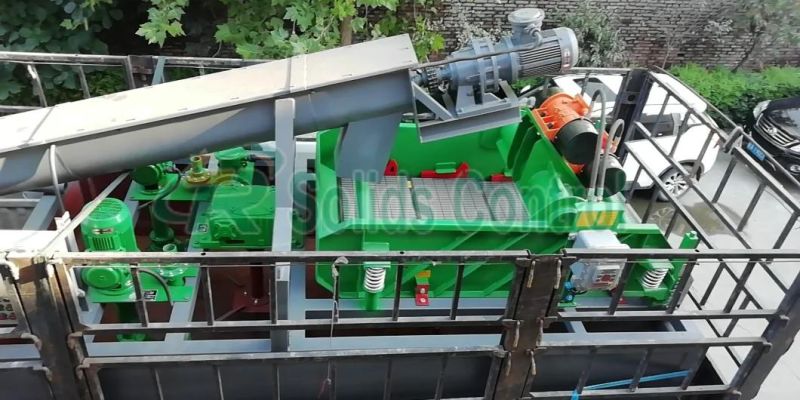

Oilfield Drilling Fluid Water Based Shale Shaker with Screw Conveyor

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Material：Cast Steel
  • Type：Drilling Fluid Shale Shaker
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Transport Package：Pallet or Wooden Case

Base Info

  • Model NO.：TRZS584
  • Specification：Various
  • Trademark：TR Solids Control
  • Origin：China
  • HS Code：84748090
  • Production Capacity：50000PCS,Year

Description

(Model)TRPS703TRPS584-4TRZS703TRZS584Vibration MotionBalanced Elliptical MotionLinear MotionTreatment Capacity130m³/h140m³/h120m³/h130m³/hMotor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4Screen Area2.6m²2.7m²2.6m²2.7m²Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1GDouble Amplitude7mm7mm6mm6mmDeck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°Ex StandardExdIIBt4 / IECEX / A-TEXWeight1630kg1618kg1620kg1600kgDimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mmRemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.


Oilfield Drilling Fluid Water Based Shale Shaker with Screw Conveyor
