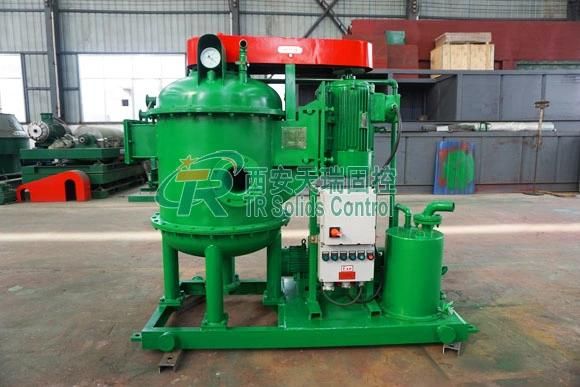

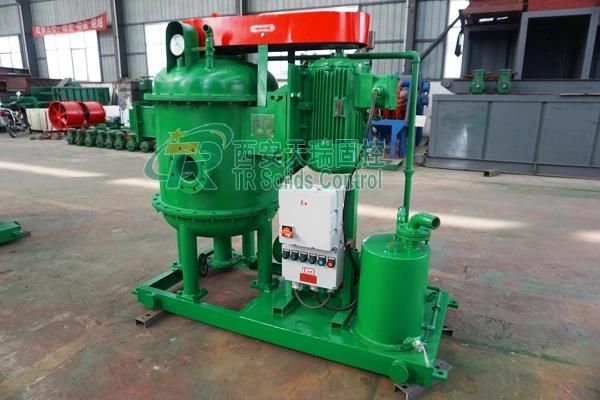

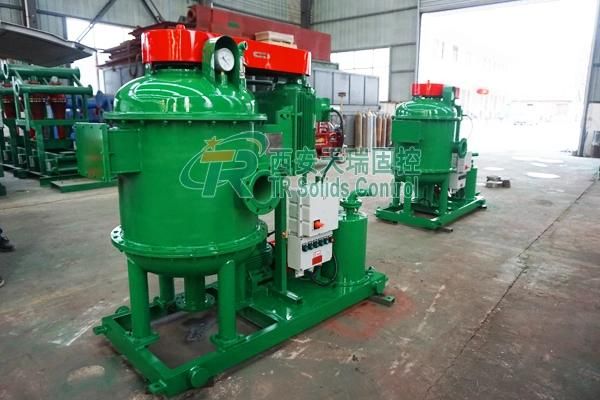

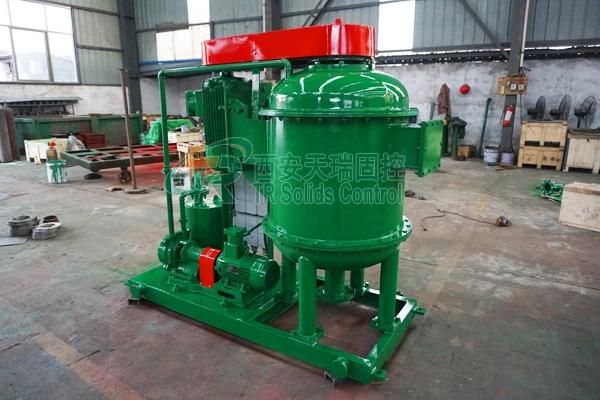

30kw Main Power Oil Sludge Drilling Vacuum Degasser

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Vacuum
  • Material：Stainless Steel
  • Type：Vacuum Degasser
  • Weight：1650kg

Base Info

  • Model NO.：TRZCQ300
  • Vacuum Pump Power：4kw
  • Degassing Efficiency：≥95%
  • Main Power：30kw
  • Vacuum Degree：-0.03~-0.045MPa
  • Transport Package：Bare Package
  • Specification：2250*1330*1650mm
  • Trademark：TR Solids Control
  • Origin：Xi′ an, China
  • Production Capacity：30 Sets,Month

Description

ModelTRZCQ240TRZCQ270TRZCQ300TRZCQ360Body Diameter700mm800mm900mm1000mmCapacity240 m³/h270 m³/h300 m³/h360 m³/hVacuum Degree-0.030-0.045Mpa-0.030-0.050Mpa-0.030-0.045Mpa-0.030-0.045MpaTransmission Ratio1.681.681.681.72Degassing Efficiency≥95%≥95%≥95%≥95%Motor Power15kW22kW30kW37KwVacuum Pump Power2.2kW3kW4kW7.5kWImpeller Speed860r/min870r/min876r/min880r/minDimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mmWeight1100kg1350kg1650kg

1800kg



30kw Main Power Oil Sludge Drilling Vacuum Degasser30kw Main Power Oil Sludge Drilling Vacuum Degasser30kw Main Power Oil Sludge Drilling Vacuum Degasser30kw Main Power Oil Sludge Drilling Vacuum Degasser




Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
