Petroleum Equipment & Machinery

Oilfield Drilling Fluid Water Based Shale Shaker with Screw Conveyor

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Operation Pressure:Atmospheric Pressure
  • Material:Stainless Steel
  • Weight:1630kg
  • Ex Standard:Exdllbt4
  • Double Amplitude:5mm
  • Transport Package:Pallet or Wooden Case

Base Info

  • Model NO.:TRZS584
  • Specification:1835*1280*1200mm
  • Trademark:TR Solids Control
  • Origin:China
  • Production Capacity:30 Sets, Month

Description

(Model)TRPS703TRPS584-4TRZS703TRZS584Vibration MotionBalanced Elliptical MotionLinear MotionTreatment Capacity130m³/h140m³/h120m³/h130m³/hMotor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4Screen Area2.6m²2.7m²2.6m²2.7m²Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1GDouble Amplitude7mm7mm6mm6mmDeck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°Ex StandardExdIIBt4 / IECEX / A-TEXWeight1630kg1618kg1620kg1600kgDimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mmRemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.

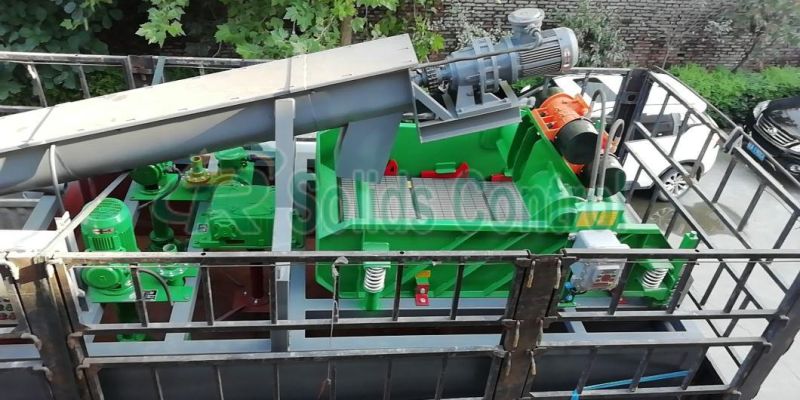

Oilfield Drilling Fluid Water Based Shale Shaker with Screw Conveyor

Oilfield Drilling Fluid Water Based Shale Shaker with Screw Conveyor
Why Choose Us

1) Experience in casting for over 15 years and served customers all around the world.
2) Standard material according to technical drawing
3)Stable quality
4) On-time delivery
5) Competitive price and good service
6) Positive customer feedback from domestic and international market
7) International advanced-level equipment
8) OEM service, your demand is our pursued.
9) ISO9001:2008 and TS16949 quality control
10) Standard: ASTM BS DIN etc



FAQ
1. What are the main materials of your products?
We are focused on casting and processing of grey iron and ductile iron products.
2. What is your MOQ?
We will arrange production based on your drawings and deliver your products as per your requirements. We will do our best to meet your demands.

3. What are your advantages?
1) Professional staff
2) 24 years of casting experience
3) Rigorous quality control system
4) On-time delivery rate is over 98%


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.

http://trsolidscontrol.en.made-in-china.com
