• Model NO.：FKQ1440-14
• Choke：7
• Spare：2
• Nominal Volume：60*24L
• Effective Volume：720L
• Volume of Reservoir：2300L
• Motor Power：18.5*2kw
• Electric Pump：46*2L,Min
• Pneumatic Pump：60*4m,Stroke
• Transport Package：Container
• Specification：FKQ1440-14
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. FKQ1440-14 Choke 7 Spare 2 Nominal Volume 60*24L Effective Volume 720L Volume of Reservoir 2300L Motor Power 18.5*2kw Electric Pump 46*2L/Min Pneumatic Pump 60*4m/Stroke Transport Package Container Specification FKQ1440-14 Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 5 Sets/Month

Product Description

BOP Control Unit

1. General Introduction
  BOP Control Unit (Hereinafter referred to as hydraulic control unit) is a necessary equipment for controlling wellhead BOP,Hydraulic choke & kill valve, and drilling & workover operation.

  Two types of BOP Control Units are offered by us: One is pneumatic control hydraulic device .The hydraulic control device can be remote controlled with driller's console, to achieve the purpose of switching the BOP, which is commonly used in drilling operation; The other one is manual operation, which is suitable for drilling or work-over operation.

2.  Model Description

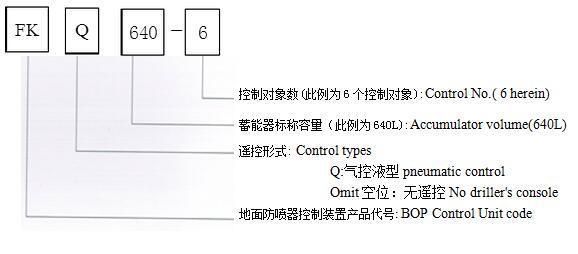

Model code of BOP Control Unit as below, as example of FKQ640-6:

3.Main technical parameters

 Nominal working pressure: 21 Mpa /3000 psi
 Regulation range:0~14 Mpa / 0~2000 psi
 Nitrogen charging pressure of accumulator:7±0.7 Mpa /1000±100psi
Setting range of pressure controller:18.9~21 Mpa / 2700~3000psi
Setting range of liquid-gas switch:18.9~21 Mpa/ 2700~3000psi
Air supply pressure: 0.65~0.8 Mpa / 93~115psi
power:380±19V / 50Hz

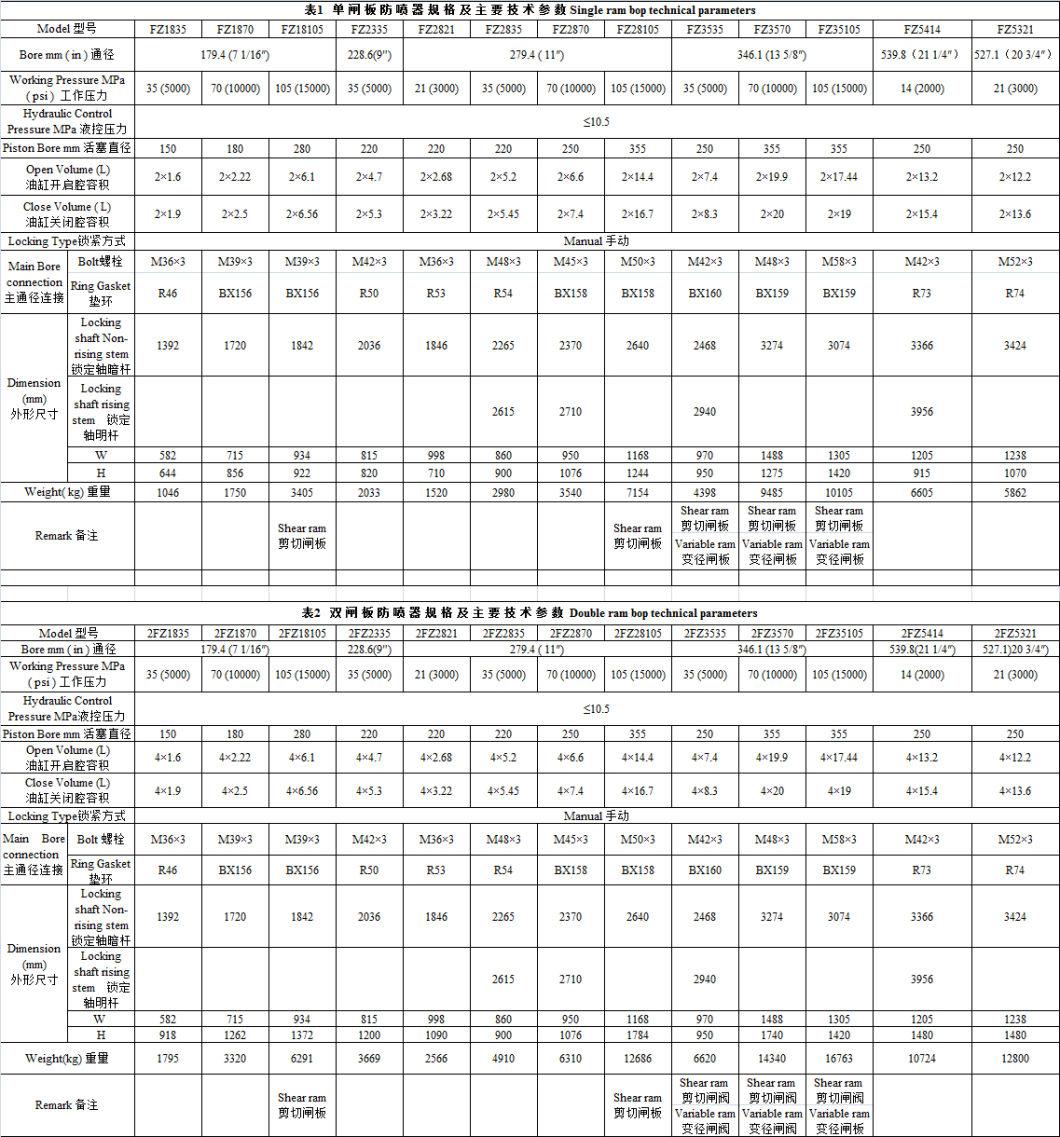

Technical parameters1





Technical parameters2
