• Model NO.：Composite Centralizers
• APP：Oilwell Cemengting
• Sample：Avaliable
• Vane：Spiral Vane and Stright Vane
• OEM：Avaliable
• Transport Package：Wooden Case
• Specification：4-1,2"~ 20"
• Trademark：ZS
• Origin：Henan
• Production Capacity：50000 Piece,Pieces Per Month

Basic Info.

Model NO. Composite Centralizers APP Oilwell Cemengting Sample Avaliable Vane Spiral Vane and Stright Vane OEM Avaliable Transport Package Wooden Case Specification 4-1/2"~ 20" Trademark ZS Origin Henan Production Capacity 50000 Piece/Pieces Per Month

Product Description

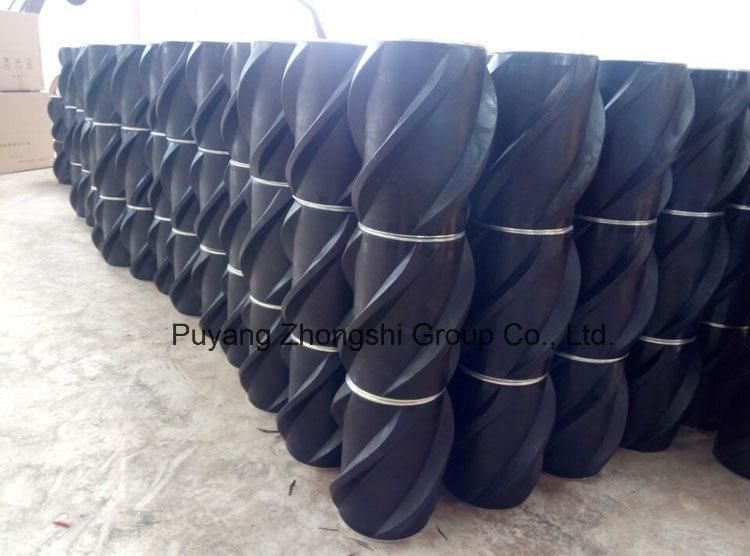

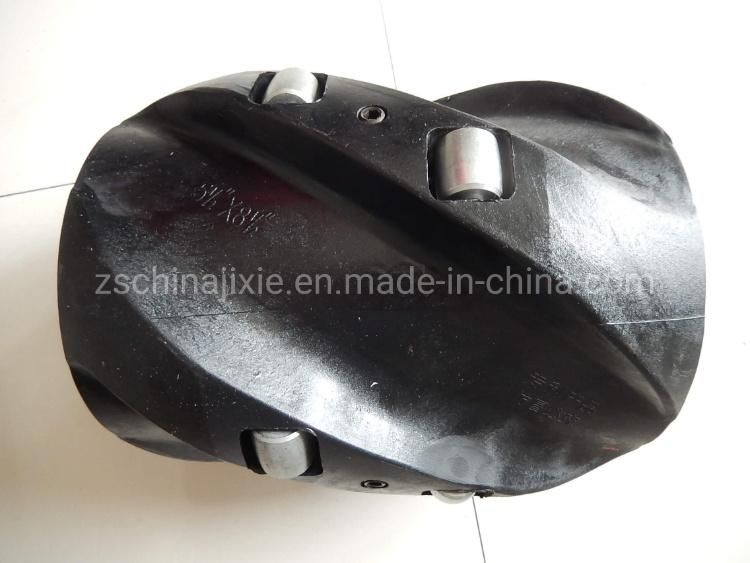

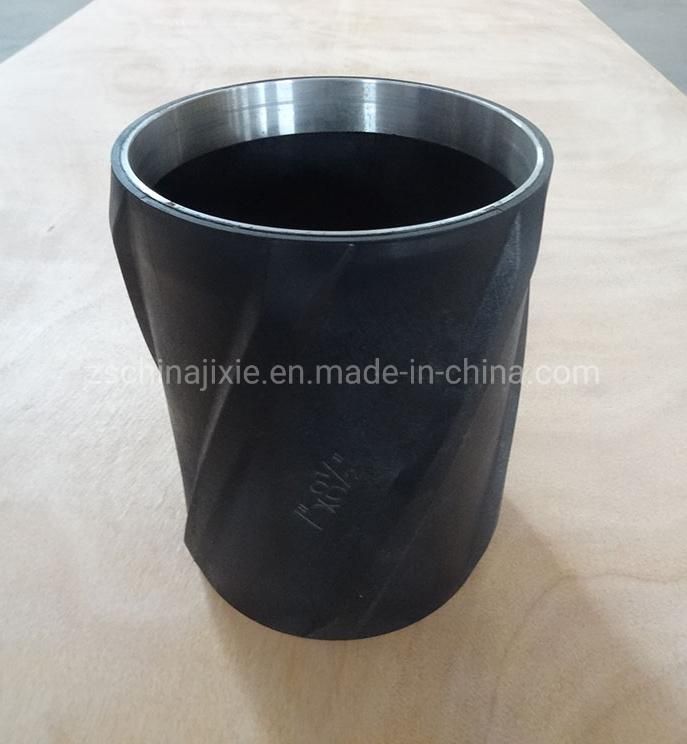

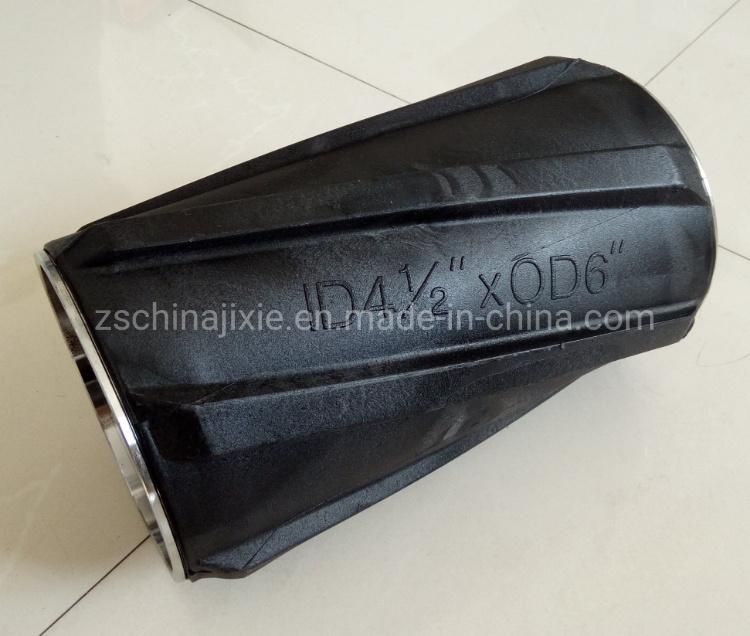

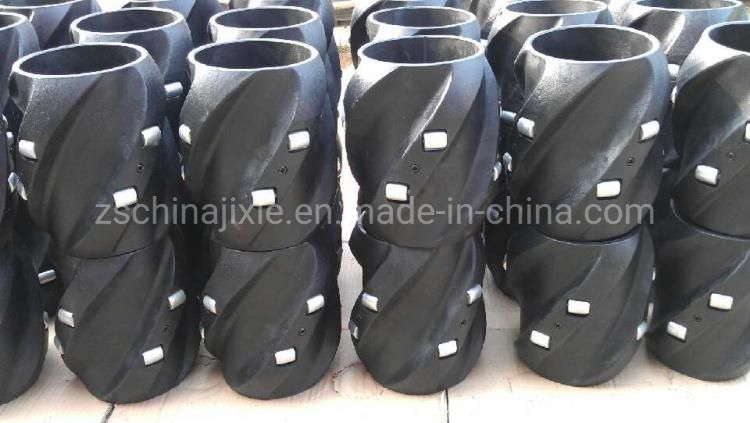

Composite Casing Centralizer


Features of Composite Centralizers:

Material: thermoplastic Polymer. It have lower friction coefficient than steel centralizers, only have 50%.

Composite centralizers withstands high well bore temperature up to 200 degree.

Reducing the drag force, flow area, increase maximum centralization and with high standoff.

Usage: well drilling

Size: 4 1/2" to 20" available. We accept custom size.

Composite Centralizers Specification:

Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2"× 6"	145	116.5	200
5"×  6"	145	129	200
5-1/2"×  8-1/2"	205-210	142	200/300
6-5/8"×  8-1/2"	205-210	171	200/300
7"×  8-1/2"	205-210	181	200/300
7"×  9-1/2"	225-235	181	200/300
7"×  9-5/8"	225-235	181	200/300
9-5/8"×  12-1/4"	300-305	248	200
13-3/8"×  17-1/2"	430-435	346	200

Advantage of Composite Centralizers

1. Composite nylon rigid centralizers is designed to reduce drag and friction down hole it have lower friction factors, ultimate drag and rotational torque reduction, increased abrasion resistance for maximum stand-off.
2. Vanes are designed to enhance hole cleaning using maximized flow-by area.
3. They are design to provide optimum flow and its fins or blades overlap the entire 360-degree open hole circumference.
4. Therefore it reduces flow area between the spiral vane and creates vortex motion to increase fluid velocity with direction.
5. Extra length of fins gives maximum centralization, high stand off and increase annular turbulence.
6. Even without rotation, the relived angle fins/ blades induce turbulent flow for improved cutting and filter cake removal.
7. Composite nylon rigid centralizers withstands high well bore temperature up to 200 degree Celsius while providing maximum horizontal stand off.
8. Composite nylon rigid centralizers are well head friendly and have high impact with shock resistance, and Shock proof along with optimum tensile and yield strength.
9. Composite nylon rigid centralizers are constructed of one-piece in superior quality polymer.
10. Composite nylon rigid centralizers are available in standard length only. The composite nylon rigid centralizers has surface finishing on CNC Lathe, and then rigid inspection makes a quality product.
11. Composite nylon rigid centralizers are available in all sizes ranging from 4 1/2" to 20" for any hole combination.
12. Any special sizes are available on request.
