5lz120*7.0IV Single-Bent Oil Well Drilling API Downhole Mud Motor
Cangzhou JW Petroleum Machinery Co., Ltd.- Manufacturing Process：Casting
- Surface Treatment：Spray-Paint
- Operation Pressure：Vacuum
- Material：Carbon Steel
- Bit Size：120mm
- Connected Thread：4 1,2"Reg
Base Info
- Model NO.：5LZ120*7.0IV
- Lobe：5:6
- Stage：4
- Flow Rate：162-578 Lpm
- Rotory Speed：121-432rpm
- Working Pressure Loss：3.2MPa
- Output Torque：613 N.M
- Output Power：36kw
- Market：Europe,America,Africa,Middle East
- Transport Package：Standard Export Packing
- Specification：120mm
- Trademark：JW
- Origin：Cangzhou, Hebei, China
- HS Code：8431431000
- Production Capacity：50000PCS,Year
Description
Joint Thread
Length
Unit
mm
In
L/S
Mpa
r/min
N.m
N.m
KW
KN
In
In
mm
5LZ73×7.0
83-121
3 1/4-4 3/4
2-4
3.2
80-160
615
1077
5.8-11.5
25
2 3/8REG
2 3/8REG
3423
9LZ89×7.0
105-143
4 1/8-5 5/8
3-8
3.2
147-392
504
882
8.64-23
30
2 7/8REG
2 7/8REG
2911
5LZ95×7.0
114-150
4 1/8-5 7/8
5-12
3.2
140-320
710
1240
10.5-25
40
2 7/8REG
2 7/8REG
3920
5LZ120×7.0
152-200
6-7 7/8
8-16
3.2
80-180
1850
3200
23-47
106
3 1/2REG
3 1/2REG
5039
5LZ165×7.0V
245-244
8 1/8-9 5/8
18-30
3.2
111-167
4440
7770
57.6-86.4
160
4 1/2REG
4 1/2REG
7408
5LZ165.5×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7748
5LZ172×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7391
5LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
115-180
6452
11299
86.4-151.2
200
4 1/2REG
4 1/2REG
8031
7LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
75-180
6527
11420
59.5-108.6
160
4 1/2REG
4 1/2REG
8631
5LZ185×7.0
215-244
8 1/8-9 5/8
20-35
4.0
184
5436
8154
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ185.5×7.0
215-244
8 1/8-9 5/8
20-35
4.0
173
5939
8908
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ197×7.0
244-311
9 1/8-12 5/8
20-40
3.2
61-122
14118
14118
57.6-115.2
240
5 1/2REG
6 5/8REG
7998
5LZ197.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
85-160
12640
12640
72-144
260
5 1/2REG
6 5/8REG
8598
7LZ203×7.0
244-311
9 5/8-12 1/4
20-40
3.2
70-155
12289
12289
57.6-126.7
240
5 1/2REG
6 5/8REG
7798
5LZ203.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
70-155
8778
15362
72-158.4
260
5 1/2REG
6 5/8REG
8598
5LZ244×7.0
311-445
12 1/2-17 1/2
50-75
3.2
91-136
15124
26468
144-216
360
6 5/8REG
7 5/8REG
8635
7LZ244.5×7.0
311-445
12 1/2-17 1/2
50-75
4.0
91-136
18905
33085
180-270
450
6 5/8REG
7 5/8REG
9235

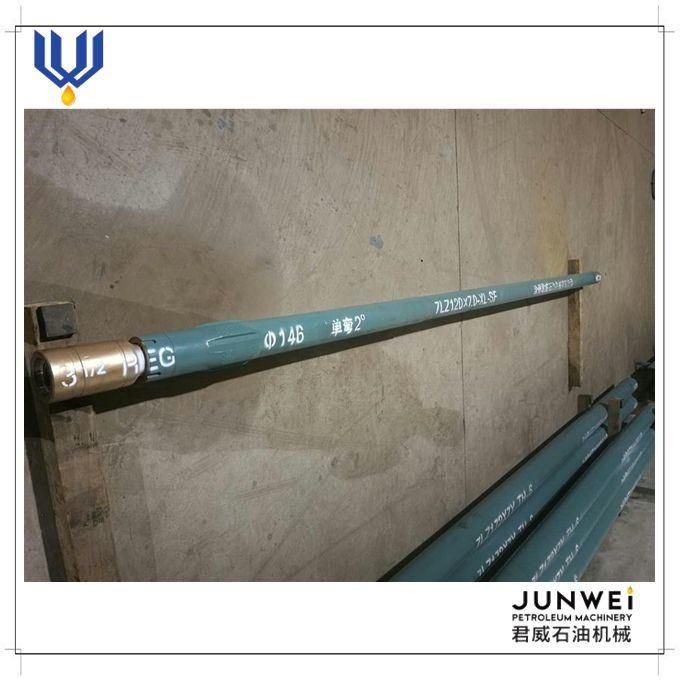

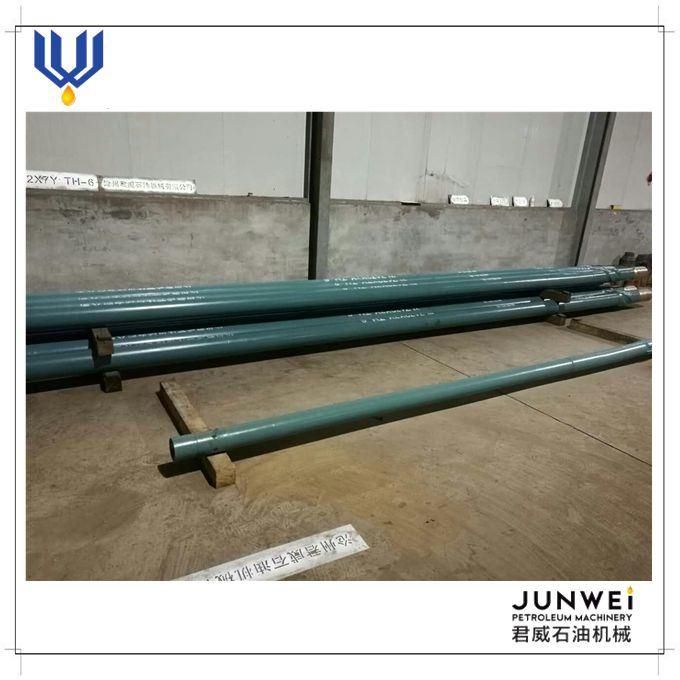

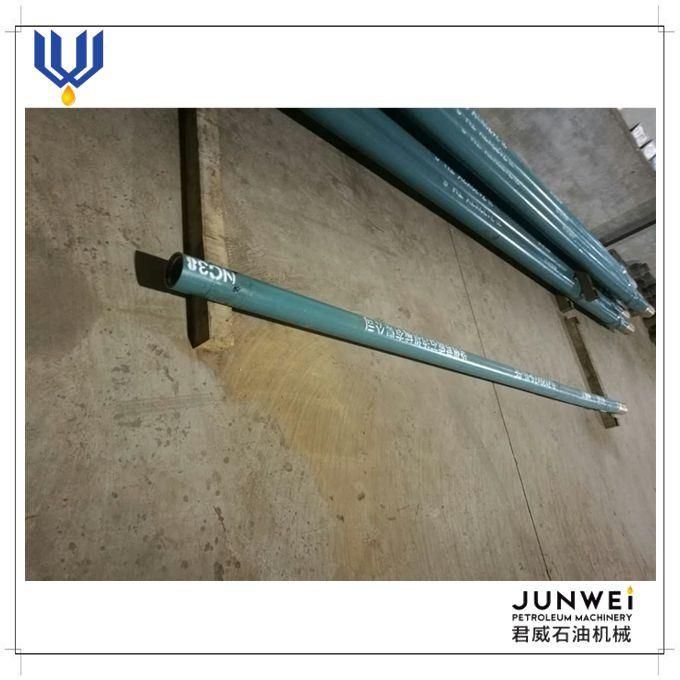

3.oil well downhole motor's pictures

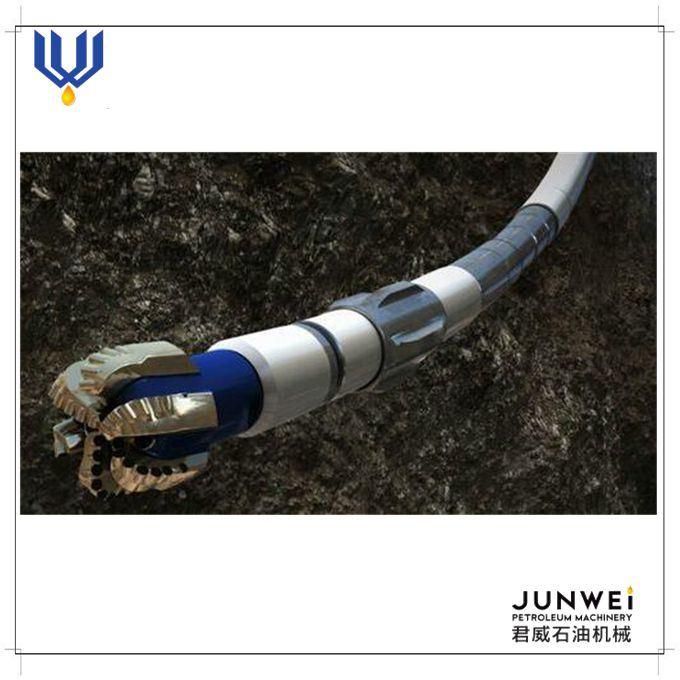

4.Application of oil well downhole motor
A Variety of Types & the Capabilities In accordance with the actual drilling needs,we push out high,
midiem and low speed downhole motors,of a variety of types with different functional configuration and application for all working conditions.
1.Standard type Standard motor,mud lubricating transmission shaft, straight, single and double bent.
2.Long type The torque is increased by 30%to 60%than standard ones, mud lubricating transmission shaft, straight, single and double bent.
3.High flow rate type The adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.
5.Our service
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we
have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for
every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion
for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
6.Contact us
All sizes and type can be customized.
If you need,welcome to contact me at any time
