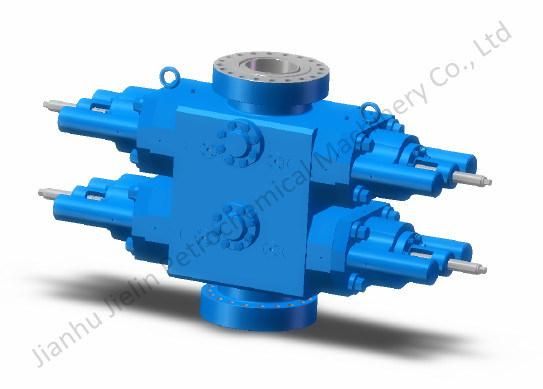

13 5/8′′ 10000psi Double RAM Bop/Blowout Preventer for Well Control
Jianhu Jielin Petrochemical Machinery Co., Ltd.- Certification：ISO 9001:2000, API 16A
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Horizontal
- Material：Alloy
Base Info
- Model NO.：api 16a
- Size：13-5,8"
- Working Temperature：High Pressure
- Bop Type：RAM Bop
- Transport Package：Wooden Case Box
- Specification：API 16A
- Trademark：JELIN
- Origin：China
- HS Code：8431431000
- Production Capacity：5000sets
Description
2 Double ram bop technical parameters Model 2FZ1835 2FZ1870 2FZ18105 2FZ2335 2FZ2821 2FZ2835 2FZ2870 2FZ28105 2FZ3535 2FZ3570 2FZ35105 2FZ5414 2FZ5321 Bore mm ( in ) 179.4 (7 1/16″) 228.6(9") 279.4 ( 11″) 346.1 (13 5/8″) 539.8(21 1/4″) 527.1)20 3/4″) Working Pressure MPa ( psi ) 35 (5000) 70 (10000) 105 (15000) 35 (5000) 21 (3000) 35 (5000) 70 (10000) 105 (15000) 35 (5000) 70 (10000) 105 (15000) 14 (2000) 21 (3000) Hydraulic Control Pressure MPa ≤10.5 Piston Bore mm 150 180 280 220 220 220 250 355 250 355 355 250 250 Open Volume (L) 4×1.6 4×2.22 4×6.1 4×4.7 4×2.68 4×5.2 4×6.6 4×14.4 4×7.4 4×19.9 4×17.44 4×13.2 4×12.2 Close Volume (L) 4×1.9 4×2.5 4×6.56 4×5.3 4×3.22 4×5.45 4×7.4 4×16.7 4×8.3 4×20 4×19 4×15.4 4×13.6 Locking Type Manual Main Bore connection Bolt M36×3 M39×3 M39×3 M42×3 M36×3 M48×3 M45×3 M50×3 M42×3 M48×3 M58×3 M42×3 M52×3 Ring Gasket R46 BX156 BX156 R50 R53 R54 BX158 BX158 BX160 BX159 BX159 R73 R74 Dimension (mm) Locking shaft Non-rising stem 1392 1720 1842 2036 1846 2265 2370 2640 2468 3274 3074 3366 3424 Locking shaft rising stem 2615 2710 2940 3956 W 582 715 934 815 998 860 950 1168 970 1488 1305 1205 1238 H 918 1262 1372 1200 1090 900 1076 1784 950 1740 1420 1480 1480 Weight(kg) 1795 3320 6291 3669 2566 4910 6310 12686 6620 14340 16763 10724 12800 Remark Shear ram Shear ram Shear ram Shear ram Shear ram Variable ram Variable ram Variable ram
