• Model NO.：c series
• Type：Conventional Beam
• Certificate：API
• Structure：Beam Type Pumping Unit

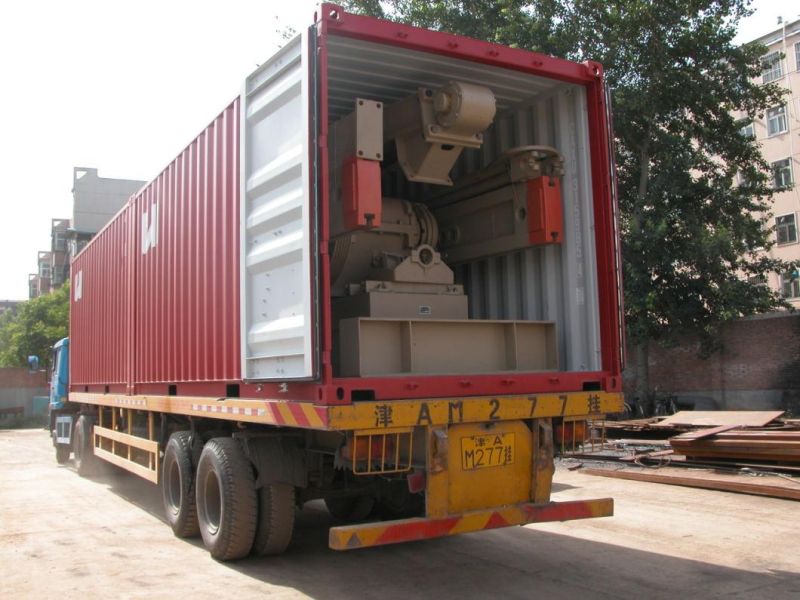

• Transport Package：Container
• Specification：steel
• Origin：Puyang Henan
• HS Code：3208901099
• Production Capacity：1000

Basic Info.

Model NO. c series Type Conventional Beam Certificate API Structure Beam Type Pumping Unit Transport Package Container Specification steel Origin Puyang Henan HS Code 3208901099 Production Capacity 1000

Product Description

Product outline

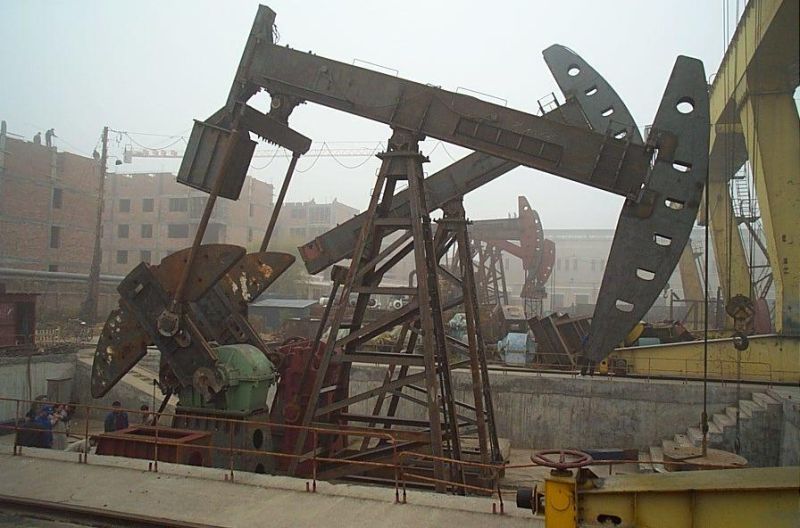

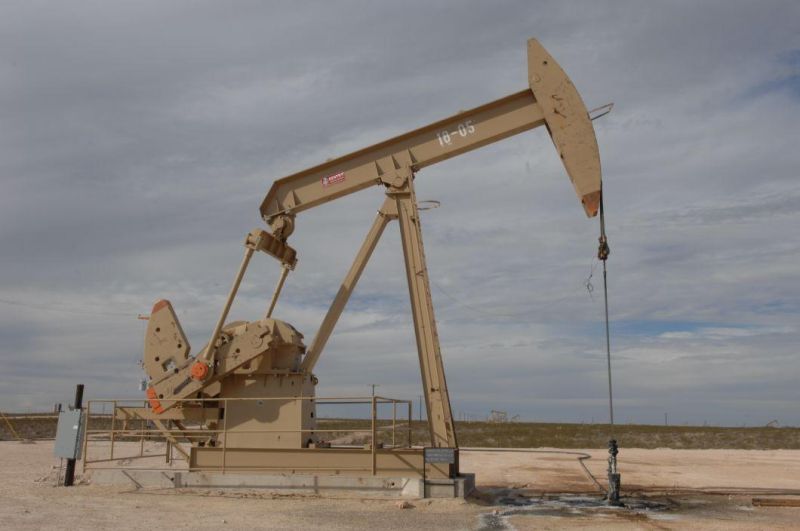

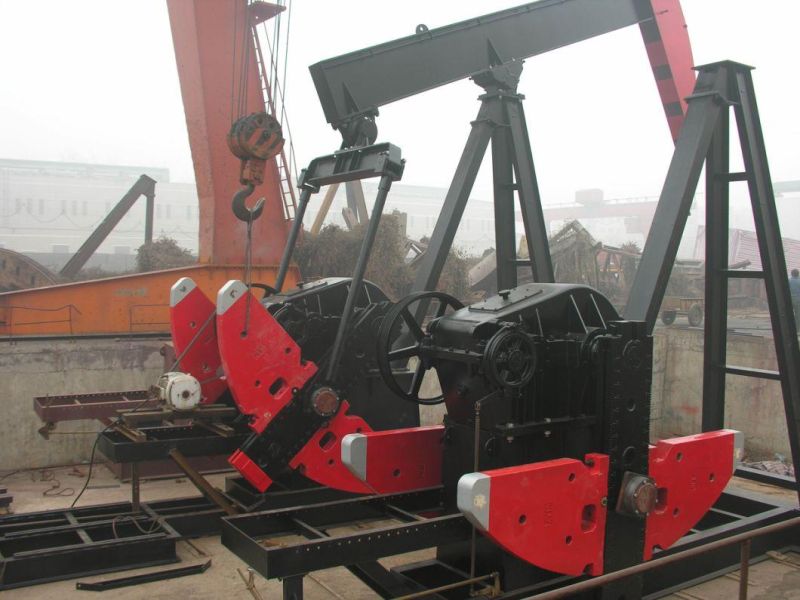

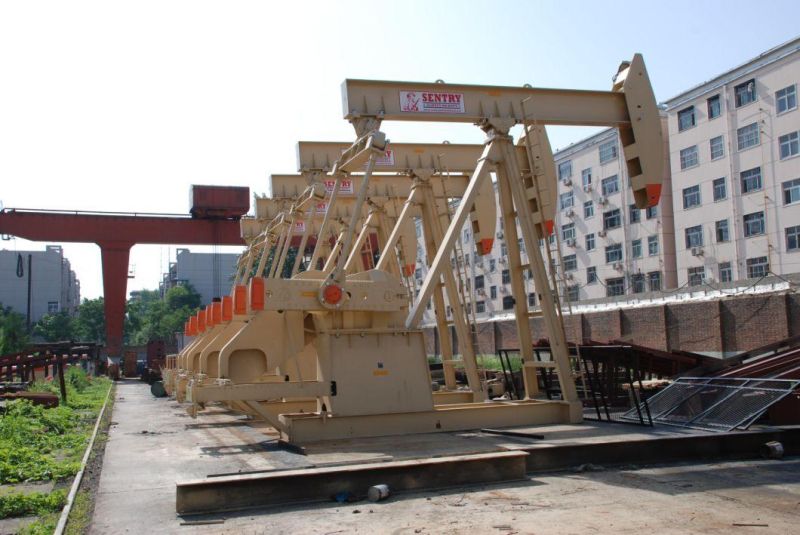

The API C series pumping unit is one kind of convention beam pumping unit,which selects the crank balanced method,It is the most common, an application scope broadest surface power equipment in field production oil.
The products conform to API Spec 11E Specification for Pumping Units and other related standards,and have obtained the certificate of authority to use the official API monogram

Technical Features
.Carry out the design using the modulation and the hypothesized technique of manufacture,optimize the product structure pattern,the spare parts have high level of " the standardization,the universalization,the seriation"
.Strength of key parts is calculated with the finite element analysis,the property is stable,the reliability is high.
.The structure is reasonable,work smooth,low noise,the operation maintenance is convenient.
.In the reducer use the symmetrical divergence type double circular arc or the involute double helical gear transmission, its meal is good,the noise is low, revolution is steady,it is reliable and durable.

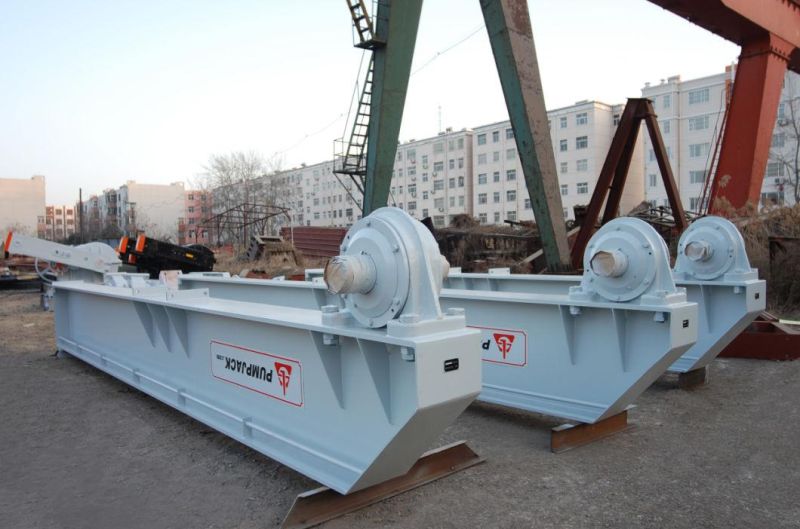

.The beam is H-beam steel structure,which has high strength,good rigidity,large carrying capacity,

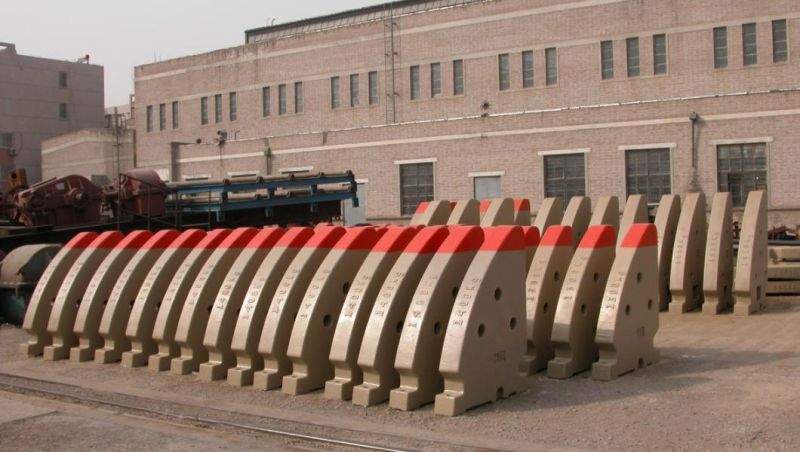

.The horse head is hanging structure,when carrying out workover, the horse head will be unloaded off,
.Support is a three-legged structure,convenient in installation,simple operation.

Main Technical Parameters

NO	Model	Rated Polished Rod Capacity (KN)	Stroke(m)	Gearbox rated torque(KN.m)
1	C-1824d-427-240	42,700	240/212/196/160	1824,000
2	C-1280D-365-240	36,500	240/212/196/160	1280,000
3	C-1280D-305-240	30,500	240/212/196/160	1280,000
4	C-912D-470-240	47,000	240/212/196/160	912,000
5	C-912D-427-216	42,700	216/185/155	912,000
6	C-912D-427-192	42,700	192/165/138	912,000
7	C-912D-305-192	30,500	192/165/138	912,000
8	C-912D-365-168	36,500	168/144/121	912,000
9	C-912D-305-168	30,500	168/144/121	912,000
10	C-912D-427-144	42,700	144/123/102	912,000
11	C-640D-305-192	30,500	192/165/138	640,000
12	C-640D-305-168	30,500	168/144/121	640,000
13	C-640D-365-144	36,500	144/123/102	640,000
14	C-640D-305-144	30,500	144/123/102	640,000
15	C-640D-256-144	25,600	144/123/102	640,000
16	C-640D-305-120	30,500	120/102/84	640,000
17	C-456D-305-168	30,500	168/144/121	456,000
18	C-456D-305-144	30,500	144/123/102	456,000
19	C-456D-256-144	25,600	144/123/102	456,000
20	C-456D-365-120	36,500	120/102/84	456,000
21	C-456D-305-120	30,500	120/102/84	456,000
22	C-456D-256-120	25,600	120/102/84	456,000
23	C-320D-256-144	25,600	144/123/102	320,000
24	C-320D-256-120	25,600	120/102/84	320,000
25	C-320D-213-120	21,300	120/102/84	320,000
26	C-320D-305-100	30,500	100/85/70	320,000
27	C-320D-256-100	25,600	100/85/70	320,000
28	C-320D-213-86	21,300	86/71/56	320,000
29	C-228D-213-120	21,300	120/102/84	228,000
30	C-228D-173-100	17,300	100/86/72	228,000
31	C-228D-246-86	24,600	86/71/56	228,000
32	C-228D-213-86	21,300	86/71/56	228,000
33	C-228D-200-74	20,000	74/64/54	228,000
34	C-228D-173-74	17,300	74/64/54	228,000
35	C-160D-173-86	17,300	86/74/62	160,000
36	C-160D-200-74	20,000	74/64/54	160,000
37	C-160D-173-74	17,300	74/64/54	160,000
38	C-160D-143-74	14,300	74/64/54	160,000
39	C-160D-173-64	17,300	64/54/44	160,000
40	C-114D-119-86	11,900	86/72/59	114,000
41	C-114D-143-74	14,300	74/62/51	114,000
42	C-114D-173-64	17,300	64/54/44	114,000
43	C-114D-143-64	14,300	64/52/40	114,000
44	C-114D-133-54	13,300	54/43/32	114,000
45	C-80D-119-64	11,900	64/53/42	80,000
46	C-80D-133-54	13,300	54/45/36	80,000
47	C-80D-119-54	11,900	64/53/42	80,000
48	C-80D-133-48	13,300	48/40/32	80,000
49	C-80D-109-48	10,900	48/37/25	80,000
50	C-57D-76-54	7,600	54/43/32	57,000
51	C-57D-109-48	10,900	48/37/25	57,000
52	C-57D-95-48	9,500	48/37/25	57,000
53	C-57D-89-42	8,900	42/33/23	57,000
54	C-57D-76-42	7,600	42/33/23	57,000
55	C-40D-76-48	7,600	48/37/27	40,000
56	C-40D-89-42	8,900	42/33/23	40,000
57	C-40D-76-42	7,600	42/33/23	40,000
58	C-40D-89-36	8,900	36/28/20	40,000
59	C-25D-67-36	6,700	36/28/20	25,000
60	C-25D-56-36	5,600	36/28/20	25,000
61	C-25D-53-30	5,300	30/20	25,000
