Good Quality! ! API F Series Pumping Units Suck Oil Machine Well Head Device for Oil Feild
Puyang Chensheng Petroleum Technology Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Certification：ISO 9001:2008
- Condition：New
- Transmission：Mechanical
- Pumping Way：With Rod
Base Info
- Model NO.：F series
- Type：Conventional Beam
- Certificate：API
- Structure：Beam Type Pumping Unit

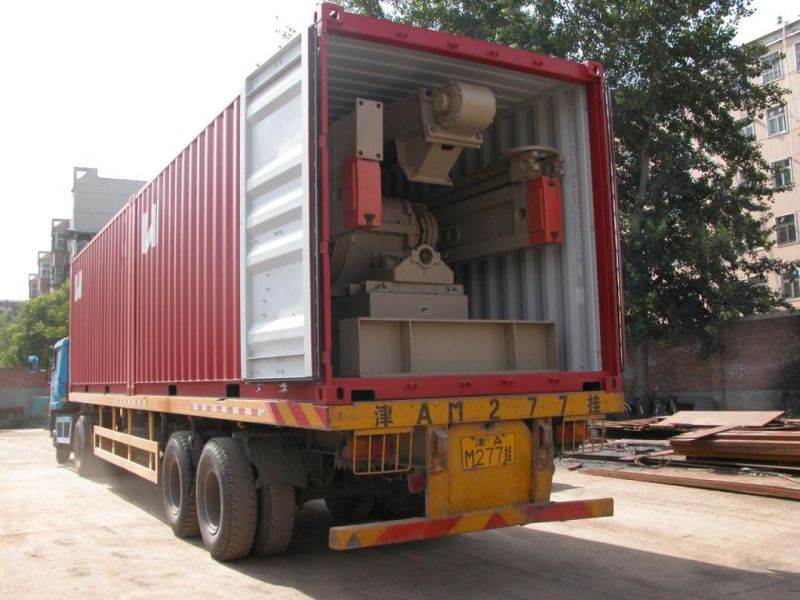

- Transport Package：Container
- Specification：steel
- Origin：Puyang Henan
- HS Code：3208901099
- Production Capacity：1000
Description
Basic Info.
Model NO. F series Type Conventional Beam Certificate API Structure Beam Type Pumping Unit Transport Package Container Specification steel Origin Puyang Henan HS Code 3208901099 Production Capacity 1000Product Description

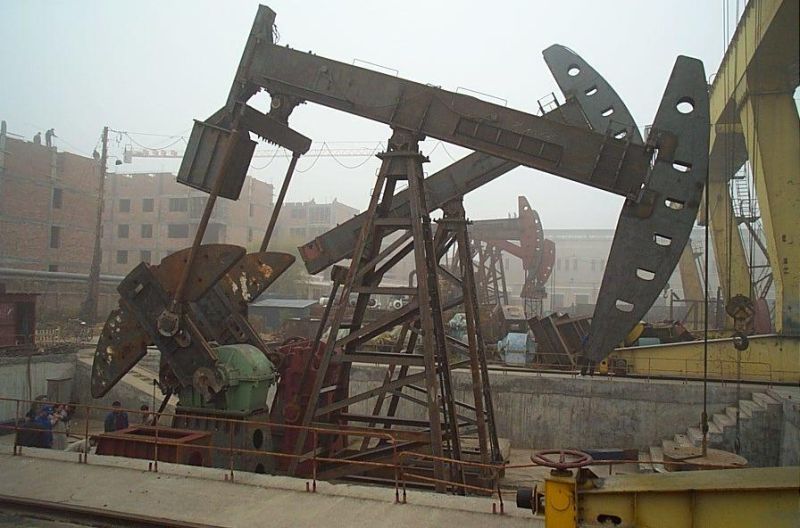

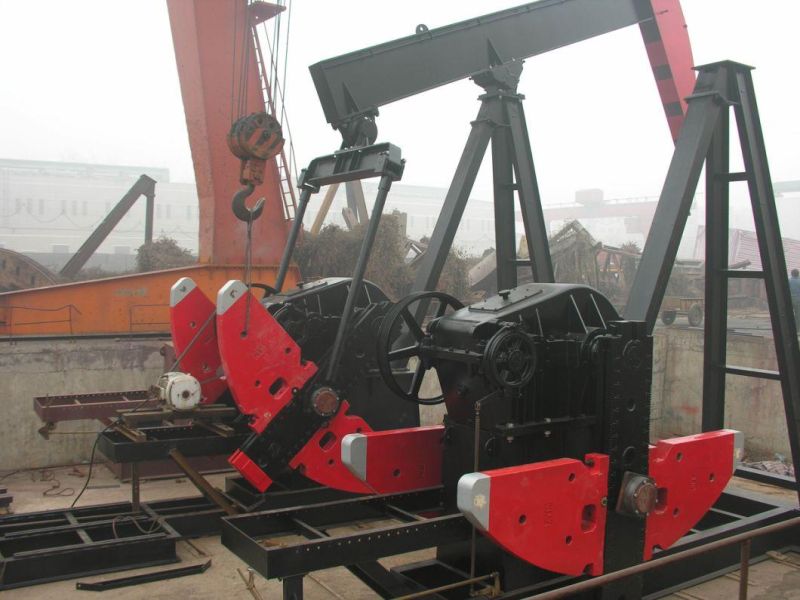

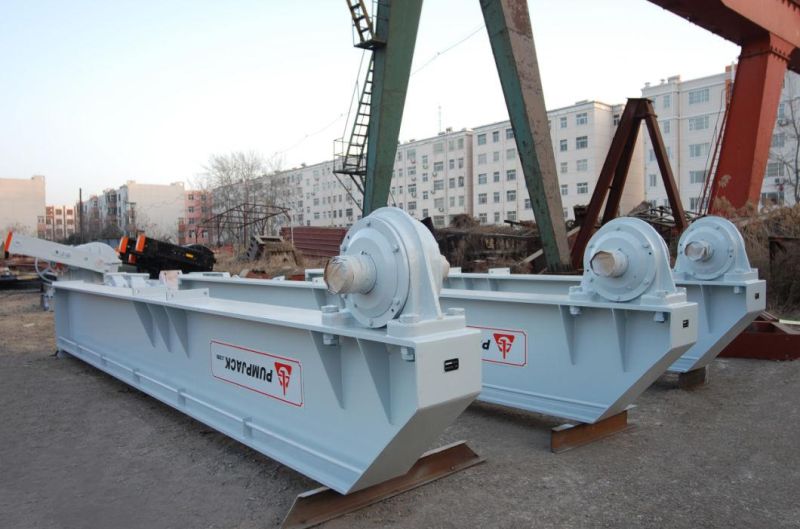

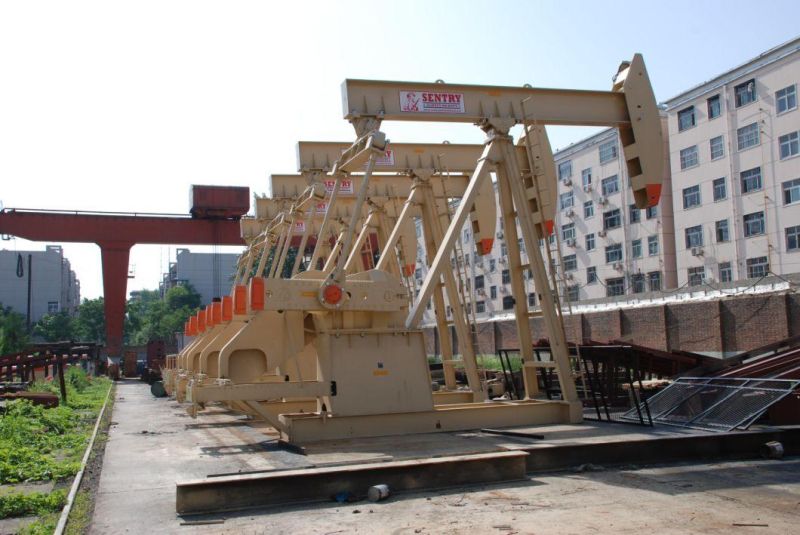

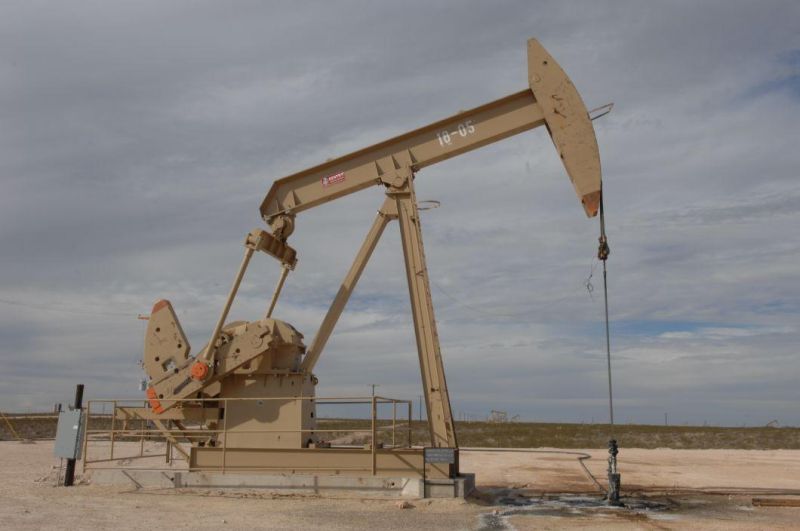

Product OutlineAPI F series Pumping Units is a new type of non-beam energy-saving units,It has low appearance, flexible drive,and the whole units can be folded,It's a new type of sucker rod pumping surface unit.
The products conform to API Spec 11E Specification for Pumping Units"and other related standards,and have obtained the certificate of authority to use the official API monogram
Technical Feature
.Use roller and belt to form flexible drive,reduce impulsive load ,prolong service life of gear reducer
.Use unique antiphase crank,The complete crank crank-balance,energy-saving effect is high.
.In the reducer use the symmetrical divergence type involute herringbone gear transmission,its seal is good,the noise is low,the revolution is steady,it is reliable and durable

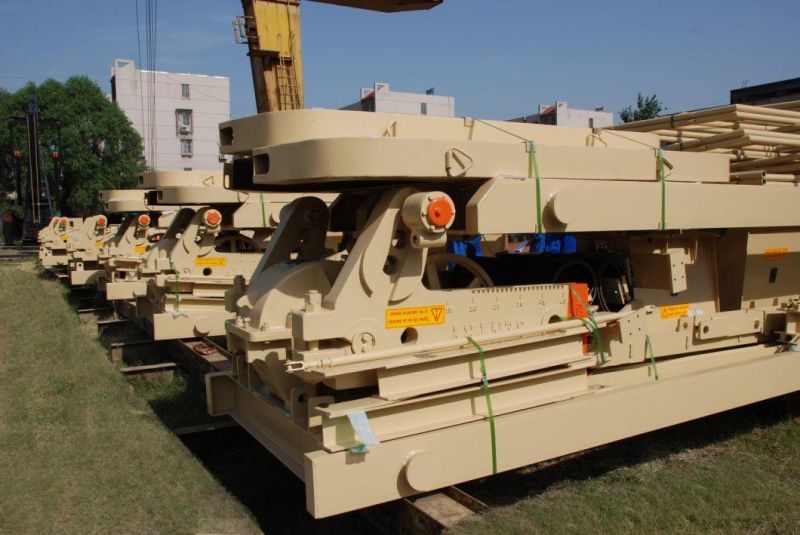

.The complete machine volume mass ratio is small,the outlook is low,may realize the complete machine to fold,the installment and the transportation are convenient
.The structure is simple,the operation maintenance is convenient,the performance -to-price ratio is good.
Main Technical Parameters
| NO | Model | Rated Polished Rod Capacity (KN) | Stroke(m) | Gearbox rated torque(KN.m) |
| 1 | F-320D-256-120 | 25,600 | 120/102/84 | 320,000 |
| 2 | F-320D-256-100 | 25,600 | 100/86/74 | 320,000 |
| 3 | F-320D-246-86 | 24,600 | 86/74/62 | 320,000 |
| 4 | F-228D-256-100 | 25,600 | 100/86/74 | 320,000 |
| 5 | F-228D-213-86 | 21,300 | 86/74/62 | 228,000 |
| 6 | F-228D-246-86 | 24,600 | 86/74/62 | 228,000 |
| 7 | F-228D-246-74 | 24,600 | 74/64/54 | 228,000 |
| 8 | F-160D-173-86 | 17,300 | 86/74/62 | 160,000 |
| 9 | F-160D-200-74 | 20,000 | 74/64/54 | 160,000 |
| 10 | F-160D-173-74 | 17,300 | 74/64/54 | 160,000 |
| 11 | F-114D-173-64 | 17,300 | 64/54/44 | 114,000 |
| 12 | F-114D-143-54 | 14,300 | 54/44/34 | 114,000 |
| 13 | F-114D-109-54 | 10,900 | 54/44/34 | 114,000 |
| 14 | F-57D-89-42 | 8,900 | 42/33/25 | 57,000 |
