API! ! R Series Pumping Units Suck Oil Unit Wellhead Device
Puyang Chensheng Petroleum Technology Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Certification：ISO 9001:2008
- Condition：New
- Transmission：Mechanical
- Pumping Way：With Rod
Base Info
- Model NO.：R Series
- Type：Conventional Beam
- Certificate：API
- Structure：Beam Type Pumping Unit

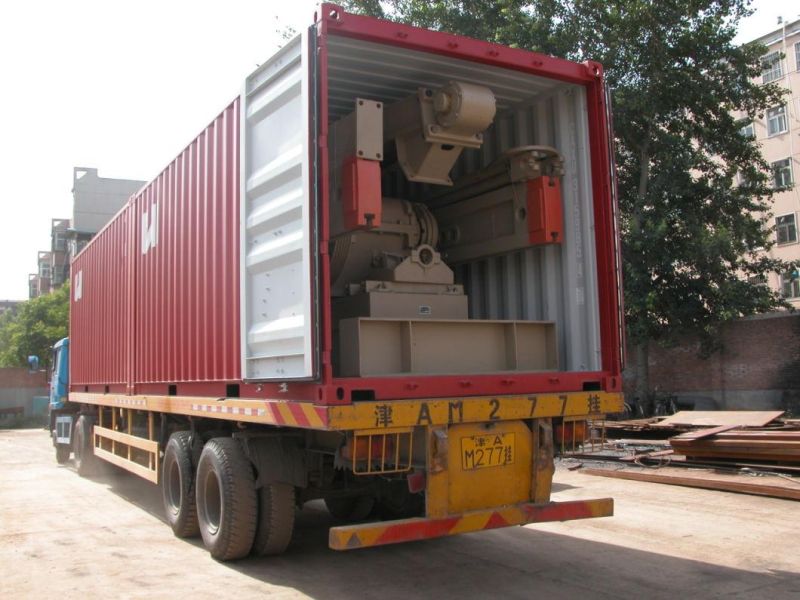

- Transport Package：Container
- Specification：steel
- Origin：Puyang Henan
- HS Code：3208901099
- Production Capacity：1000
Description
Basic Info.
Model NO. R Series Type Conventional Beam Certificate API Structure Beam Type Pumping Unit Transport Package Container Specification steel Origin Puyang Henan HS Code 3208901099 Production Capacity 1000Product Description

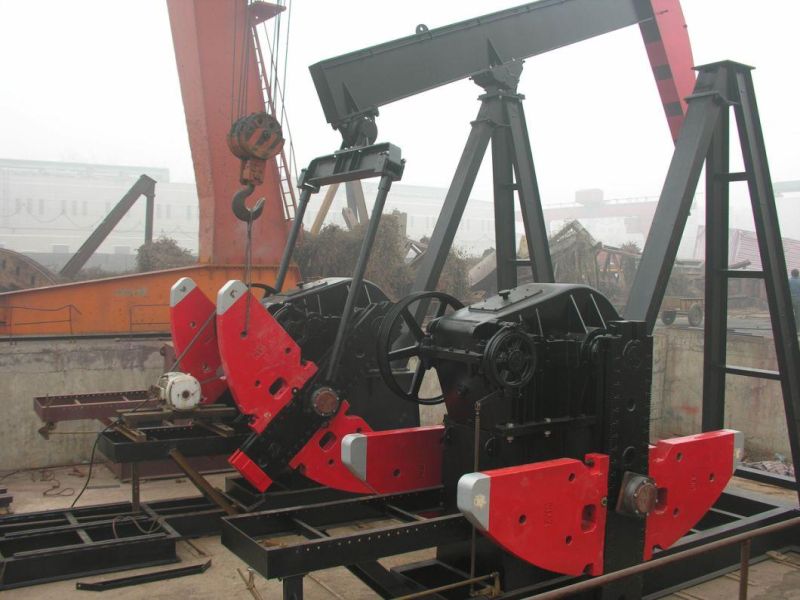

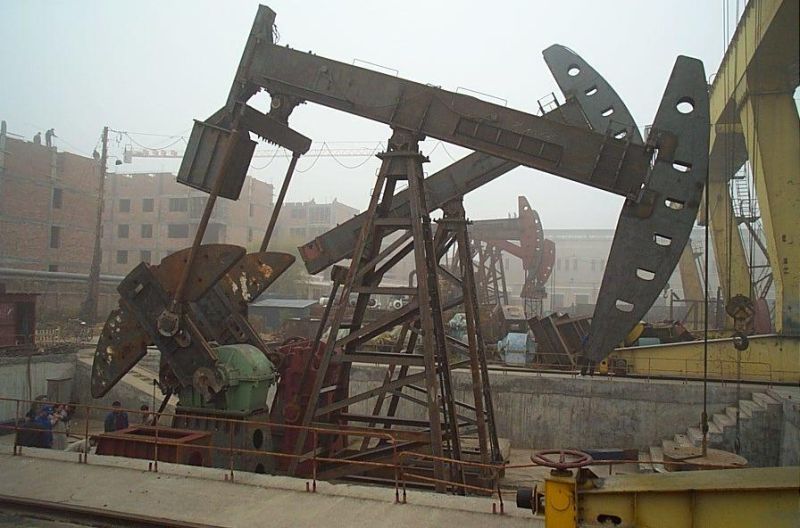

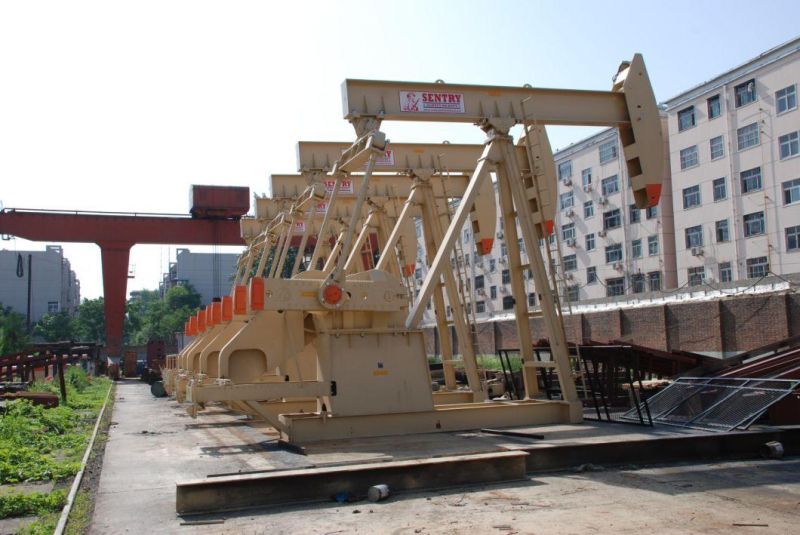

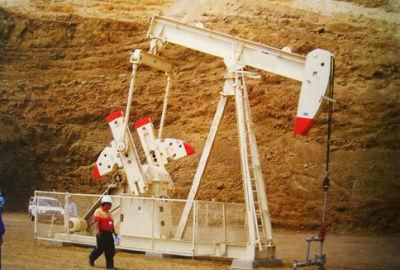

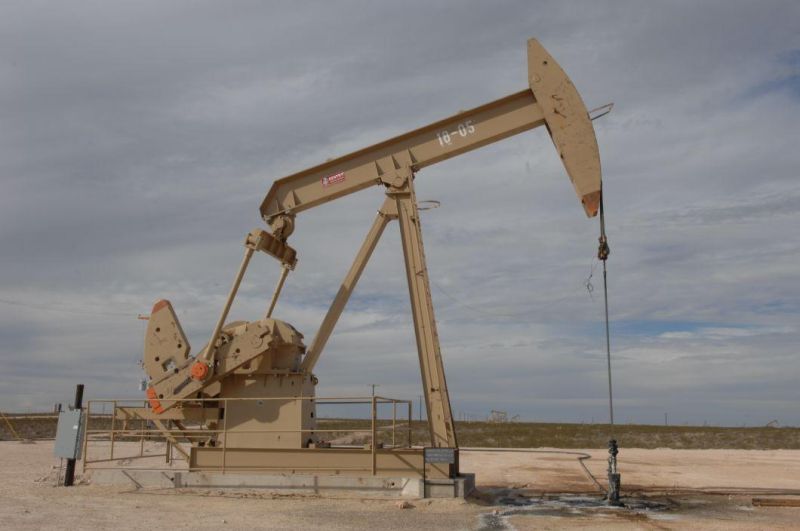

Product OutlineAPI R series Pumping Units is a new type energy-saving beam pumping unit,which is similar to structure of conventional beam pumping unit,It's a new type of sucker rod pumping surface unit,which is promoted in field oil production.
The products conform to API Spec 11E Specification for Pumping Units and other related standards,and have obtained the certificate of authority to use the official API monogram
Technical Features
.Carry out the design using the modulation and hypothesized technique of manufacture,the product is similar to structure and running characteristic of conventional beam pumping unit

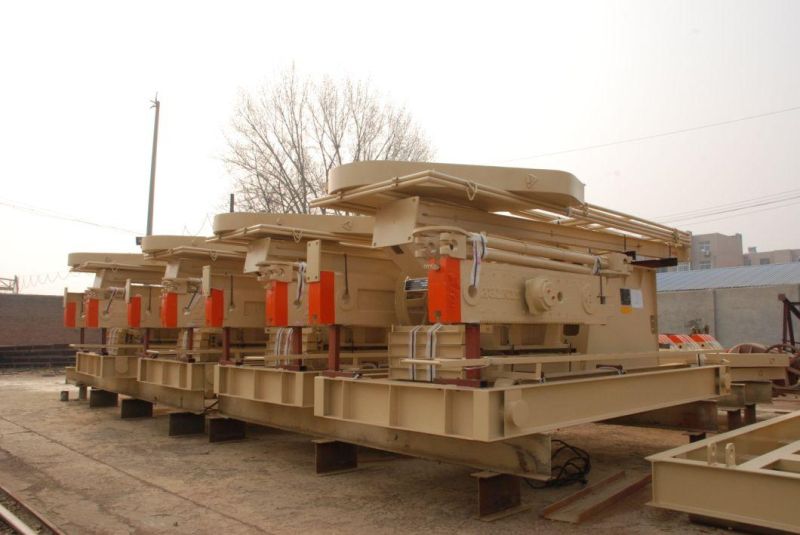

.In the reducer use the symmetrical divergence type involute or arc herringbone gear transmission,its seal is good,the noise is low,the revolution is steady,it is reliable and durable.
.The whole machine structure pattern is optimized,the spare parts have high level of "the standardization, the universalization,the seriation",The unit operating is simplicity,the maintenance is convenient,the service life is long.
Main Technical Parameters
| NO | Model | Rated Polished Rod Capacity (KN) | Stroke(m) | Gearbox rated torque(KN.m) |
| 1 | R-912D-365-192 | 36,500 | 192/159/127 | 912,000 |
| 2 | R-912D-305-192 | 30,500 | 192/159/127 | 912,000 |
| 3 | R-912D-365-168 | 36,500 | 168/139/111 | 912,000 |
| 4 | R-912D-305-168 | 30,500 | 168/139/111 | 912,000 |
| 5 | R-640D-305-192 | 30,500 | 192/159/127 | 640,000 |
| 6 | R-640D-365-168 | 36,500 | 168/139/111 | 640,000 |
| 7 | R-640D-305-168 | 30,500 | 168/139/111 | 640,000 |
| 8 | R-456D-305-168 | 30,500 | 168/139/111 | 456,000 |
| 9 | R-456D-305-144 | 30,500 | 144/119/95 | 456,000 |
| 10 | R-456D-305-120 | 30,500 | 120/99/80 | 456,000 |
| 11 | R-320D-256-144 | 25,600 | 144/119/95 | 320,000 |
| 12 | R-320D-256-120 | 25,600 | 120/99/80 | 320,000 |
| 13 | R-320D-256-100 | 25,600 | 100/83/67 | 320,000 |
| 14 | R-228D-256-100 | 25,600 | 100/83/67 | 228,000 |
| 15 | R-228D-246-86 | 24,600 | 86/72/59 | 228,000 |
