• Model NO.：JHBD
• Standard：API
• Transport Package：Standard Export
• Trademark：BODA
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Ea,Year

Basic Info.

Model NO. JHBD Standard API Transport Package Standard Export Trademark BODA Origin China HS Code 8431431000 Production Capacity 5000 Ea/Year

Product Description

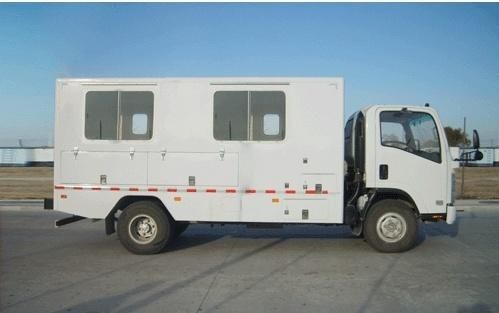

Truck Mounted Wireline Unit(Isuzu Chassis)

 This truck mounted wireline unit(also Wireline Truck) uses Isuzu chassis, is designed for measurement and workover activities in the oilfield. Both Slickline and E-Line jobs can be performed. It comprises imported variable hydraulic pump and hydraulic motor, imported multiway proportional reversing valve, low-speed torque hydraulic motor,hydraulic gearbox, clutch, E-line drum,slickline drum, automatic line spooling system, double brake and double hand system, slip ring, operation panel, dual mechanical counter, electric depth and load indicator and metering panel. The layout of the workshop and operator area is free configurable by the customer. Intercom,microwave oven and water dispenser could be configured as per customers' requirement. ★ Features & Benefit

• Mounting possible on any available truck chassis
• Closed loop hydraulic drive system
• Comfortable cabin as your preferred option
• Single or dual drum winch could be changeable

★ Technical Parameter


Performance	3000m	5000m
E-line size	Ф3.2/Ф3.5 mm	Ф3.2/Ф3.5 mm
Slickline size	Ф2.4/Ф2.7 mm	Ф2.4/Ф2.7 mm
Max. pull	10KN/15KN	10KN/15KN
Max. pull speed	7m/s	7m/s
Drum rotation speed	0-320r/min	0-320r/min
Hydraulic rated pressure	20MPa	20MPa
Line spooling way	Automatic/ fine adjustment	Automatic/ fine adjustment
Brake system	Air/Hand	Air/Hand
Clutch switching mode	Manual/air	Manual/air
Drum hand body	Yes	Yes
Electric depth and weight indicator	Mounted	Mounted
