Hydraulic Single Drum E-line Unit

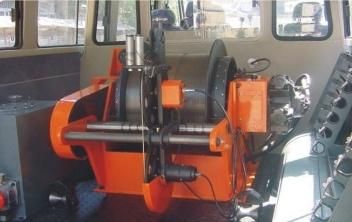

 This E-line unit could be mounted on IVECO,Dong Feng or Isuzu chassis as logging truck.It is suitable for Φ3.2,Φ3.5 stainless steel cable or Φ5.6 braided line jobs. It comprises driving system, hydraulic system, winch assembly and control panel.The hydraulic system consists of imported proportional reversing valve, low-speed torque hydraulic motor,hydraulic oil tank,oilfilter,high pressure pump and high pressure hose.Logging work is done on the control panel. Hydraulic motor drives cluth to make drum rotate.There is a manual traverse assembly controlling the drum direction, while speed is controlled by handle angle and engine throttle. The winch can run at low or high speed, with wide speed range.★ Feature
Wireline coiling orderly
System low noisy
Working steady
Hydraulic drive system
★ Technical Parameter


Performance	3000m	5000m
E-line size	Ф3.2/Ф3.5/Ф5.6 mm	Ф3.2/Ф3.5/Ф5.6 mm
Max. pull	10KN/15KN	10KN/15KN
Max. pull speed	7m/s	7m/s
Drum rotation speed	0-320r/min	0-320r/min
Hydraulic rated pressure	20MPa	20MPa
Line spooling way	Automatic	Automatic
Brake way	Manual	Manual
Clutch switching mode	Manual/air	Manual/air
Hand drum	Hand body	Hand body
Diameter of drum	Ф350	Ф350
Drum capacity	4000m	6000m
Electric depth & weight indicator	Mounted	Mounted
