• Model NO.：API16A
• Style：Manual, Hydraulic
• Bore (in)：7 1,16~21 1,4
• Working Pressure Psi：5000~15000
• Hydraulic Pressure MPa：Max10.5
• Piston Bore(mm)：150~355
• Locking Type：Manual
• Weight(Kg)：1046~16763
• Transport Package：Wooden Case
• Specification：api16a
• Trademark：Jelin
• Origin：Jianhu Country Yancheng City Jiangsu Province
• HS Code：8431431000
• Production Capacity：1000

Basic Info.

Model NO. API16A Style Manual, Hydraulic Bore (in) 7 1/16~21 1/4 Working Pressure Psi 5000~15000 Hydraulic Pressure MPa Max10.5 Piston Bore(mm) 150~355 Locking Type Manual Weight(Kg) 1046~16763 Transport Package Wooden Case Specification api16a Trademark Jelin Origin Jianhu Country Yancheng City Jiangsu Province HS Code 8431431000 Production Capacity 1000

Product Description

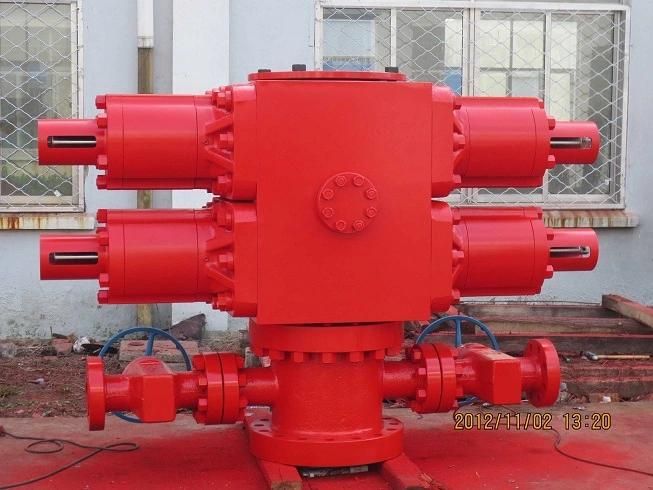

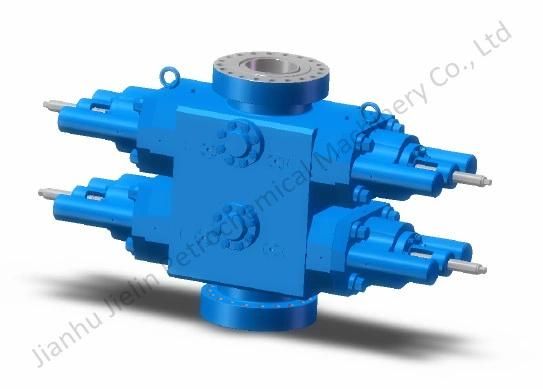

Hydraulic ram preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc.
Structural features
For double-faced ram, both faces of the ram are symmetrical. For different sizes of drilling tools, only rubber seal semi-ring and ram briquetting need to be replaced, and other parts can be used interchangeably; single-faced ram is not reversible; shear ram can cut off wellhead drilling tools and fully seal wellhead; variable ram is used within certain limits to seal different sizes of drilling tools and annular tubes.
Seal features of ram
Ram floating, ram's automatic cleaning and well pressure seal, and ram's automatic centering and self-feeding function. When sealing wellhead, ram preventer should seal four places at the same time to shut in a well effectively, that is, the seal between ram top and shell, the seal between ram front end and pipe, the seal between shell and side entrance and the seal between piston rod and side entrance.
Ram locking device
Manual type locking device is used to close or lock ram by man. Please note that manual locking device is only used to close ram rather open it. To open ram after use, it's necessary to first reset and unlock manual locking device and then open ram with hydraulic pressure.
Hydraulic ram preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc.
For double-faced ram, both faces of the ram are symmetrical. For different sizes of drilling tools, only rubber seal semi-ring and ram briquetting need to be replaced, and other parts can be used interchangeably; single-faced ram is not reversible; shear ram can cut off wellhead drilling tools and fully seal wellhead; variable ram is used within certain limits to seal different sizes of drilling tools and annular tubes.

Style	Manual, Hydraulic
Bore (in)	7 1/16~21 1/4
Working Pressure Psi	5000~15000
Hydraulic pressure Mpa	Max10.5
Piston bore(mm)	150~355
Locking type	Manual
Weight(kg)	1046~16763
