Skid Mounted E-Line Unit Made in China
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Vacuum
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Plug-In
- Material：Cast Steel
Base Info
- Model NO.：JHBD
- Standard：API
- Transport Package：Standard Export
- Trademark：BODA
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Ea,Year
Description
Basic Info.
Model NO. JHBD Standard API Transport Package Standard Export Trademark BODA Origin China HS Code 8431431000 Production Capacity 5000 Ea/YearProduct Description
Skid Mounted E-line Unit
Introduction:
The skid mounted e-line unit suits various wirelines, suitable for downhole operations with other instruments.It is equipped with gearbox, automatic line spooling system, hand device, handbrake system, drum and depth & weight indicator. Easy to operate with complete functions.
★ Feature:
Designed for logging operation
Different drive system could be optional
Automatic spooling system
Small footprint, ease of transportation and operation
Customising options available
★ Technical Parameter

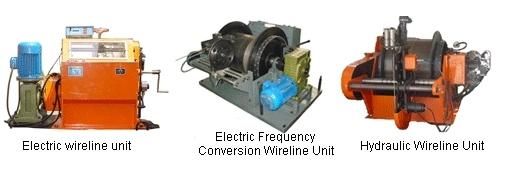

| Performance | Electric Winch | Electric FrequencyConversion Winch | Hydraulic Winch |
| E-line size(mm) | Ф5.61 | Ф5.61,Ф6.0 | Ф3.2 |
| Max. Line Pull | 20KN | 10KN | 10KN |
| Pull speed | Low speed:0.33m/s,high speed:0.83m/s | 0-0.5m/s,stepless speed regulation | 0-5m/s, stepless speed regulation |
| Drum capacity | 3000m | 4000m | 5000m |
| Power supply | AC380V,50HZ | AC380V,50HZ | Hydraulic, 20Mpa |
| Motor power | 4KW,1440 r/min | 4KW,1440 r/min | |
| Drum size | Drum dia:245,length:468 | Drum dia:500,length:612 | Drum dia:350,length:398 |
| Dimension(L*W*H) | 1300*770*956 | 1495*1384*903 | 1150*1000*800 |
