Sb Pullng Tool Made in China
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Cast Steel
Base Info
- Model NO.：SB
- Standard：API
- Transport Package：Pallet
- Trademark：EXTRONG
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Model NO. SB Standard API Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

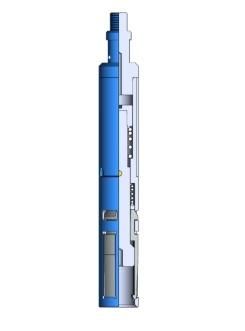

SB PULLING TOOL
INTRODUCTION
The SB Pulling Tool is designed to engage external fishing necks on Sub-surface devices within the well-bore.
The SB Pulling Tool consists of a cylinder complete with top sub, inner core and spring loaded dog set. Once the tool has been engaged on an external fishing neck, a downward jarring action will shear the pin to release the spring-loaded dogs and allow the tool to be retrieved.
The SB Pulling Tools are available in various sizes and are supplied with industry standard pin connections complete with fishing necks.

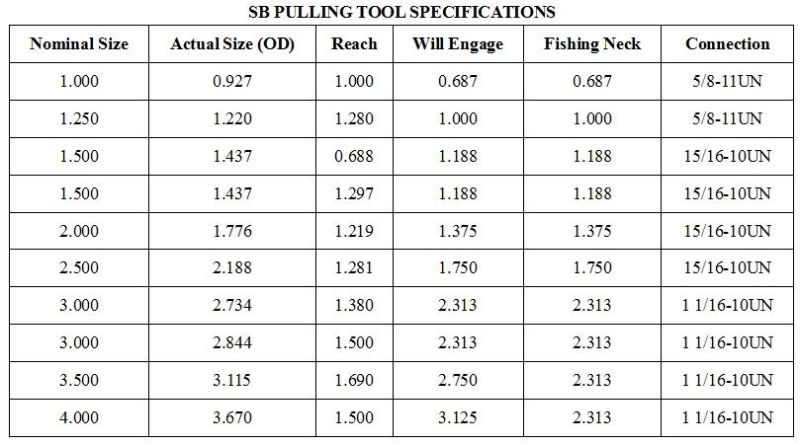

| SPECIFICATION SHEET |
