• Model NO.：GS
• Standard：API
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Model NO. GS Standard API Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

GS PULLING TOOL

INTRODUCTION

The GS Pulling Tool is designed to deploy and retrieve sub-surface devices with internal fishing necks.

The GS Pulling Tool can be released from the device by 'jarring' down. It can be converted to a jar up to release tool (GR) by installing a GU shear up adapter. The GR Tool is recommended where downward jarring on the sub-surface device is required before pulling.

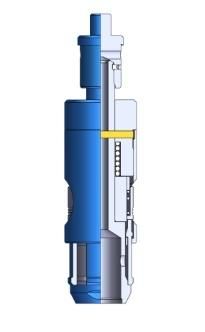

The GS Pulling Tool consists of a cylinder complete with top sub, inner core and spring loaded dog set. Once the tool has been engaged in an internal fishing, a downward jarring action will shear a pin releasing the spring loaded dog set and allowing them to move into the retract position. The cylinder must be touching the sub-surface device for this action to occur.

Larger sizes of GS Pulling Tools have a pinning ring. The pinning ring compresses the main spring, allowing the shear pin to be installed safely. Once the shear pin has been installed, the pinning ring must be backed off and secured prior to running the device in the well-bore.

The GS Pulling Tools are available in various sizes and are supplied with industry standard pin connections with fishing necks.

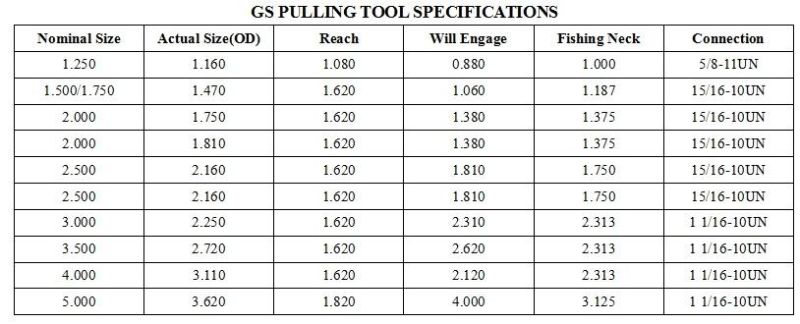

SPECIFICATION SHEET
