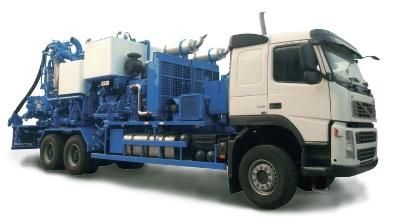

Double Pump Cementing Truck by Serva

Zhenjiang Boral Machinery and Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Vacuum
  • Applicable Medium：Natural Gas, Crude Oil
  • Structure：Plug-In
  • Material：Alloy

Base Info

  • Model NO.：PCT-521A
  • Carrier Style：Truck Mounted
  • Pump：Plunger Pump
  • Transport Package：Export Standard
  • Trademark：SERVA
  • Origin：China
  • Production Capacity：5000 Units,Year

Description

Technical SpecificationChassisVolvo FM440 6x6EngineCaterpillar C13 475HP @ 2100 RPM (2 sets)Caterpillar C15 540HP @ 2100 RPM (optional)Detroit S60 475HP @ 2100 RPM (optional)TransmissionAllision 4700OFS (5 forward gears + netural gear) (2 sets)Hydraulic systemDriven by chassis and deck transmission PTO, closed loop for C-pumps, open loop for agitatorsTriplex pump (2 sets)Model/typeSERVA TPH400 reciprocal, horizontal single plunger pumpStroke8" (203.2mm)Max. B.H.P.600 BHP (447Kw)Gear ratio8.6:1Fluid end3 3/8"4"4 1/2"Rated pressure20,000PSI (138Mpa)14,000PSI (96Mpa)11,200PSI (77Mpa)Max. Discharge rate 0.86M3/min1.2M3/min 1.52M3/minACM-IV. 1 Mixing systemMixerHigh energy recirculating jet mixerDry cement valveOff-center bulk cement metering valveMixing water pumpSERVA 4x3 (1.5m3/min @0.78Mpa)Slurry reciculating/booster pumpSERVA RA56 (3.7m3/min @0.45Mpa) (two sets)DensitometerMicro motion 3" F300 non-radioactive densitometerComputer systemAB PLCOthersMixing tank12 BBL (2m3)fuel tank400+300 LMeasuring tank2x10 BBL (2x1.5m3)hydraulic oil tank170L  air tank80L Double Pump Cementing Truck by Serva

3. Features
  • TPH400 inline installation, makes the maintenance and service of pumps easier.
  • The mixing power is partially supplied by chassis engine which increases the actual operation power of deck engine.
  • High energy recirculating jet mixing system.
  • Off-center dry cement valve avoids bulk cement from choking.
  • Emergency kill system of air inlet shutoff.
  • Plunger pump overpressure protection system.
  • SPS non-leakage packing system.
  • Plunger pump overpressure protection system, engine goes back to idle automatically, transmission shifts to neutral position.
  • F300 Non-radioactive densitometer is easy to wash, safe and reliable.
  • Simplify operation, adapts to working habits in oilfield.
  • 10" operation screen, convenient to monitor the working data.
  • Portable wireless/ wired data acquisition system.
  • Diesel fired coolant pre-heat system available. The heater allows the engine to be preheated before starting without the use of external power.
