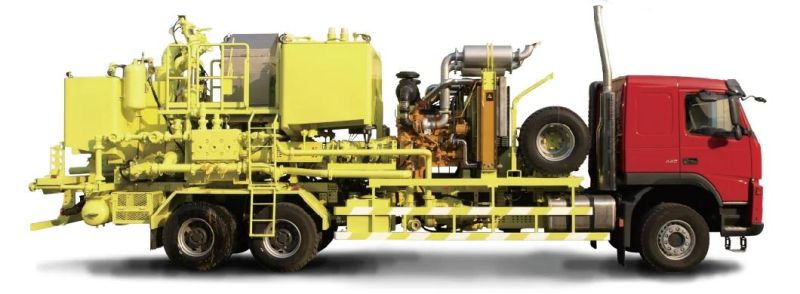

Serva Double Pump Cementing Truck From China

Zhenjiang Boral Machinery and Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Vacuum
  • Applicable Medium：Natural Gas, Crude Oil
  • Structure：Plug-In
  • Material：Alloy

Base Info

  • Model NO.：PCT-621A
  • Carrier Style：Truck Mounted
  • Pump：Plunger Pump
  • Transport Package：Export Standard
  • Trademark：SERVA
  • Origin：China
  • Production Capacity：5000 Units,Year

Description

Technical SpecificationChassisVolvo FM440 6x6EngineCaterpillar C13 475HP @ 2100 RPM (2 sets)Caterpillar C15 540HP @ 2100 RPM (optional)Detroit S60 475HP @ 2100 RPM (optional)TransmissionAllision 4700OFS (5 forward gears + netural gear) (2 sets)Hydraulic systemDriven by chassis and deck transmission PTO, closed loop for C-pumps, open loop for agitatorsTriplex pump (2 sets)Model/typeSERVA TPB600 reciprocal, horizontal single plunger pumpStroke6" (152.4mm)Max. B.H.P.600 BHP (447Kw)Gear ratio4.6:1Fluid end3"3 1/2"4"4 1/2"Rated pressure14,140PSI (97.5Mpa)10,000PSI(69Mpa)7,958PSI (56.1Mpa)6,290PSI (43.4Mpa)Max. Discharge rate 0.95M3/min1.27m3/min1.67M3/min2.13M3/minACM-III. 1 Mixing systemMixerHigh energy recirculating jet mixerDry cement valveOff-center bulk cement metering valveMixing water pumpSERVA 4x3 (1.5m3/min @0.78Mpa)Slurry reciculating/booster pumpSERVA RA56 (3.7m3/min @0.45Mpa) (two sets)DensitometerMicro motion 3" F300 non-radioactive densitometerComputer systemAB PLCOthersMixing tank8 BBL (1.4m3)fuel tank400+300 LAverage tank20 BBL (2x1.5m3)hydraulic oil tank170LMeasuring tank2x10 BBL (2x1.5m3)air tank80L Serva Double Pump Cementing Truck From China


3. Features
  • 1m3 surge tank avalible, utilized to make bulk cement delivery more stable so as to improve the accuracy of auto control system and slurry quality.
  • The mixing power is partially supplied by chassis which increases the actual operation power of main engine.
  • High energy recirculating jet mixing system.
  • Off-center dry cement valve avoids bulk cement from choking.
  • Emergency kill system of air inlet shutoff.
  • SPS non-leakage packing system.
  • Plunger pump overpressure protection system.
  • F300 Non-radioactive densitometer is easy to wash, safe and reliable.
  • Simplify operation, adapts to working habits in oilfield.
  • 10" operation screen, convenient to monitor the working data.
  • Portable wireless/ wired data acquisition system.
  • Diesel fired coolant pre-heat system available. The heater allows the engine to be preheated before starting without the use of external power.
