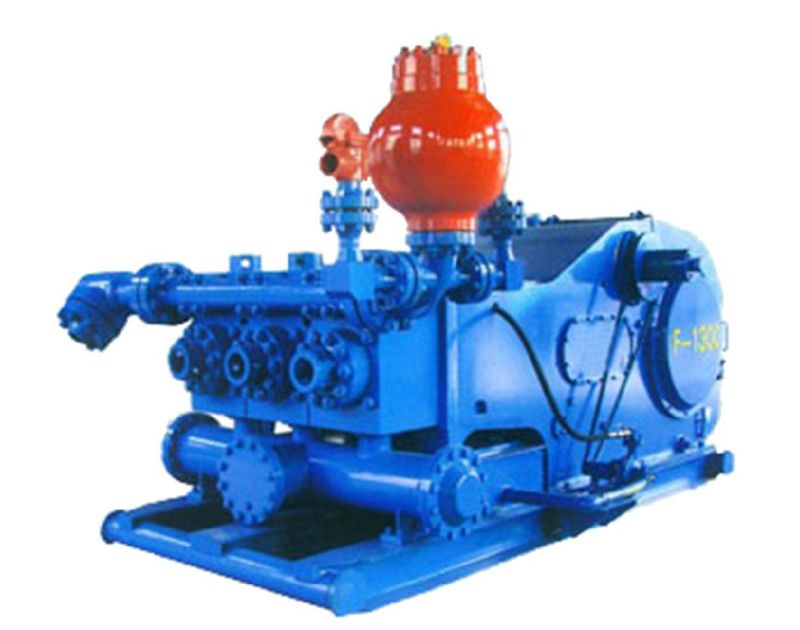

F-1300 Triplex Plunger Pump with Motor Mud Pump for Drilling Rig
Glorytek Industry (Beijing) Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Power Source：Diesel Engine
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
- Type：Pumping Equipment
- Rated Power：969,1300(Kw,HP)
Base Info
- Model NO.：F-1300
- Stroke Length：12" ( 305 mm )
- Usage：Mud Pump
- Transport Package：Sea-Worthy Packing
- Specification：,
- Trademark：Glorytek
- Origin：China
- Production Capacity：25 Sets,Month
Description
Type
Horizontal 3-cylinder single acting piston pump
Gear type
Herringbone gear
Rated input power(kw/hp)
969/1300
Gear Ratio
4.206:1
Rated stroke (stroke/min)
120
Lubrication
Forced and flashing
Stroke length(mm/min)
305/ 12"
Valve cavity
API-7#
Connection dimension of suction side
12" (305mm)
Connection dimension of discharge side
5" Flange 5000psi
The weight of main machine
24572/54170
Profile dimensions(LxWxH)
4426x3096x2004mm
(kg/pound)
74.25" x121.89" x78.9"
Stroke/min
Liner Size (mm/inch),
180
170
160
150
140
130
Pressure Rating (Mpa psi)
18.7
21
23.7
27
31
34.5
-2720
-3050
-3440
-3915
-4495
-5000
KW
HP
Displacement: L/S
130
799
1071
50.42(799)
44.97(713)
39.83(631)
35.01(555)
30.50(483)
26.20(417)
120
746
1000
46.54(737)
41.51(658)
36.77(583)
32.32(512)
28.15(446)
24.27(385)
110
692
929
42.66(676)
38.05(603)
33.71(534)
29.62(469)
25.81(409)
22.25(352)
100
639
857
38.78(614)
34.59(548)
30.64(485)
26.93(427)
23.46(372)
20.23(320)
90
586
786
34.90(533)
31.13(493)
27.58(437)
24.42(381)
21.11(334)
19.21(288)
1
0.3878(6.147)
0.3459(5.483)
0.3064 (4.857)
0.2693(4.269)
0.2346(3.719)
0.2023 (3.206)
